Removal and Replacement

Battery Replacement

Removal Procedure




1. Disconnect the negative battery cable.

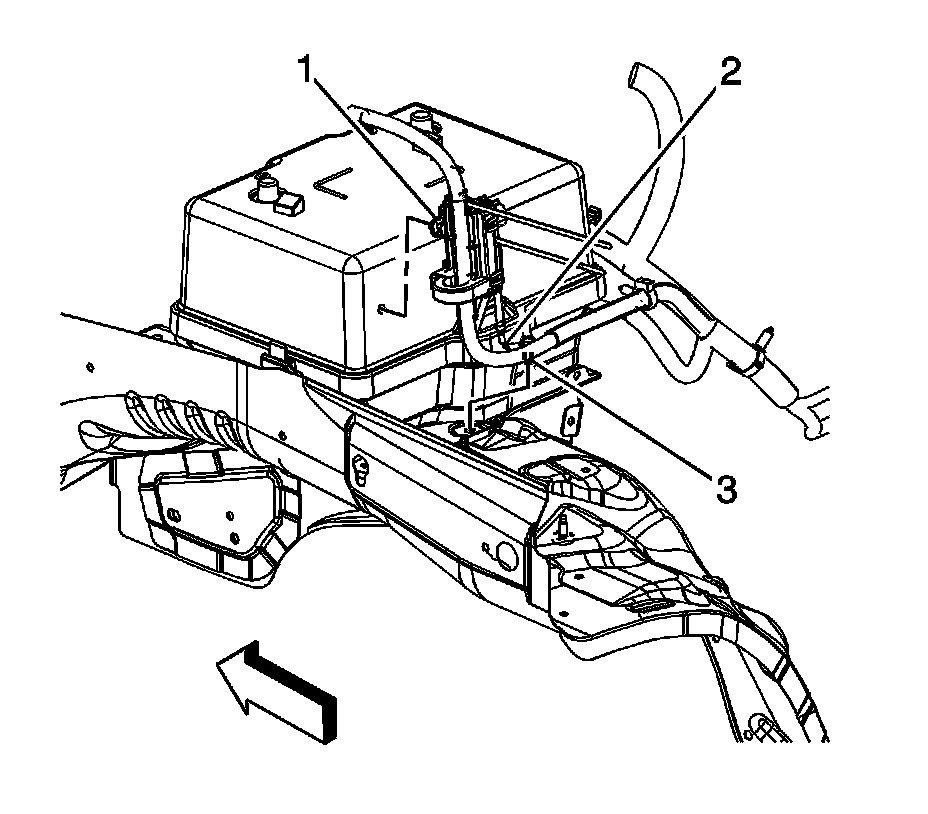

2. Open the protective cover to access the positive battery cable terminal.
3. Loosen the positive battery cable nut.
4. Remove the positive battery cable (2) from the battery.

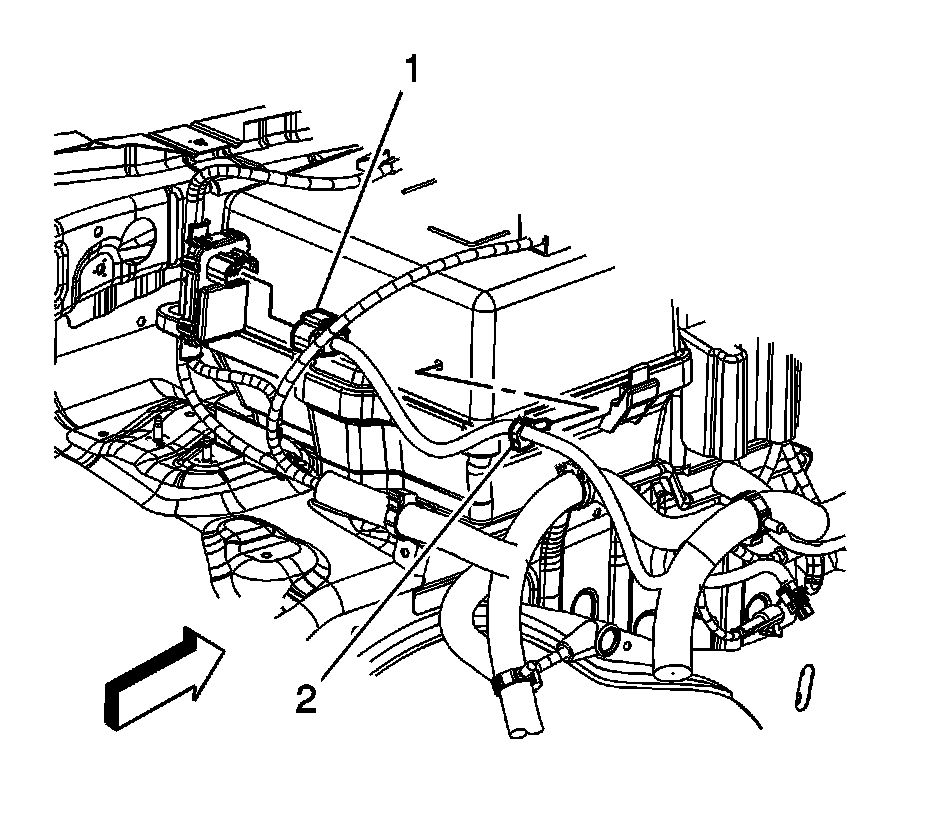

5. Remove the generator battery control module clip (1) from the upper battery box.




6. Remove the engine wiring harness clip (2) from the upper battery box.

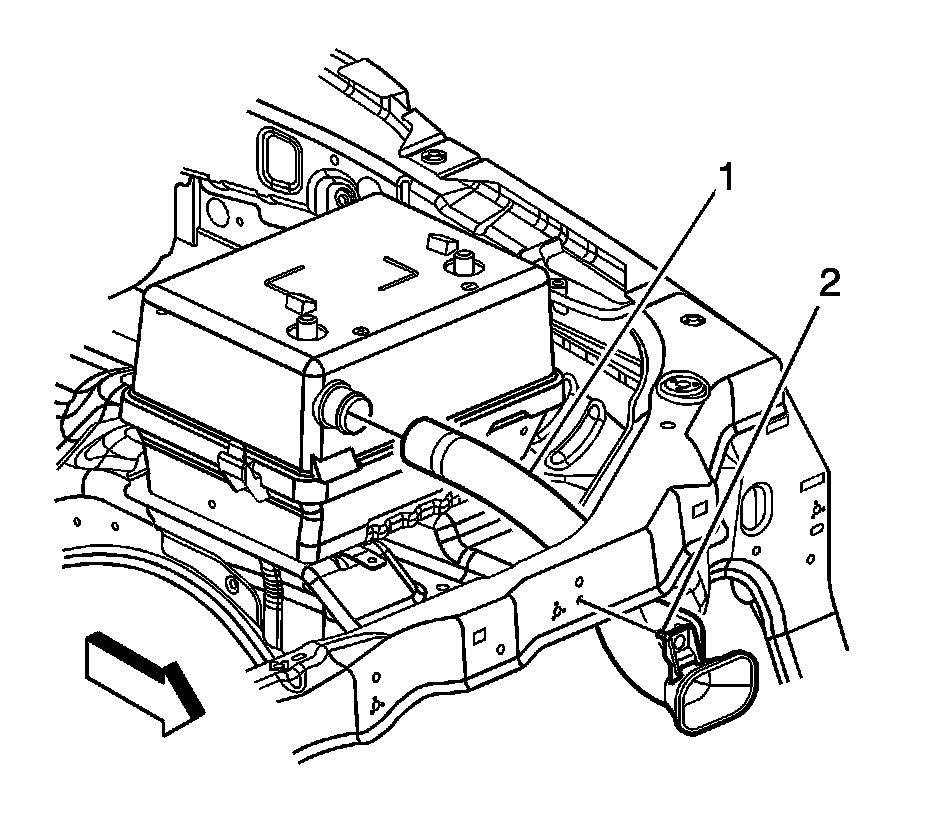

7. Disconnect the battery vent duct from the upper battery box (1).

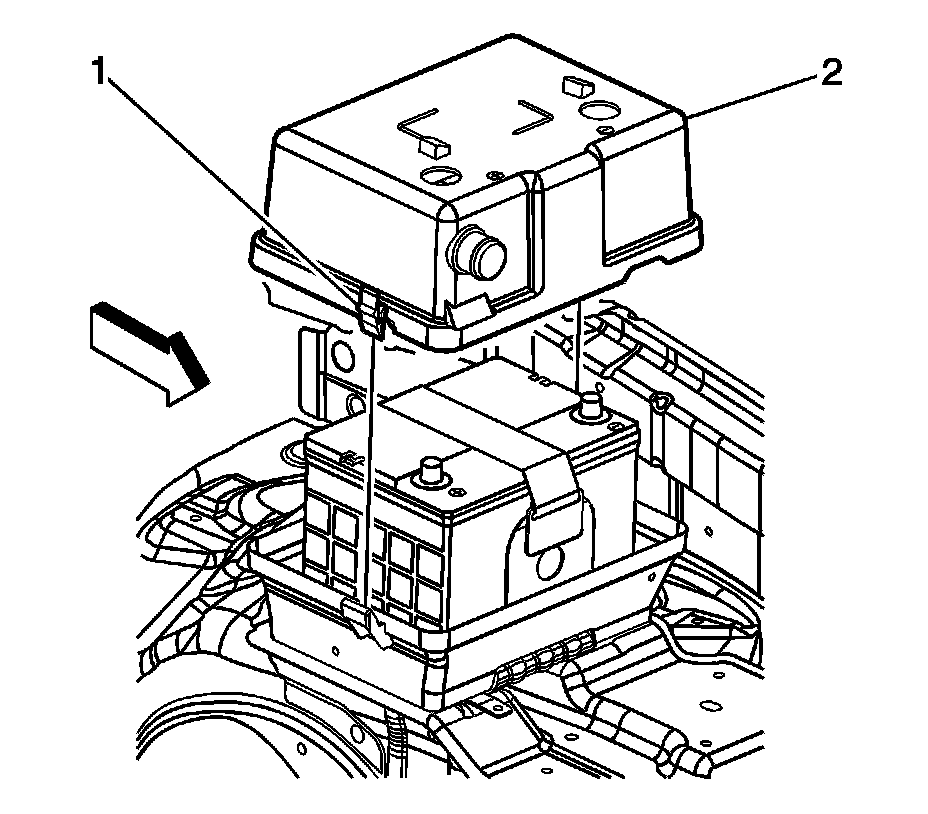

8. Press the locking tabs (1) inward in order to remove the upper battery box (2) from the lower battery box.

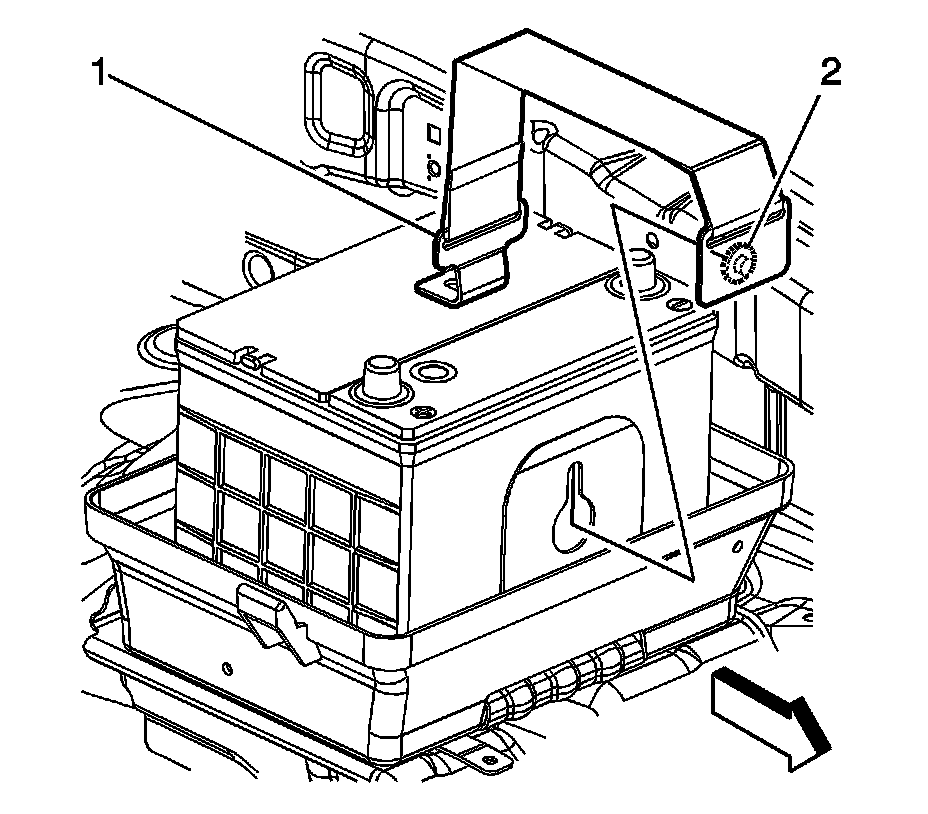

9. Disengage the battery strap pin (2) from the battery tray bracket stopper.




10. Remove the battery retainer nut (1).
11. Remove the battery tray strap (2).
12. Remove the battery retainer (3).

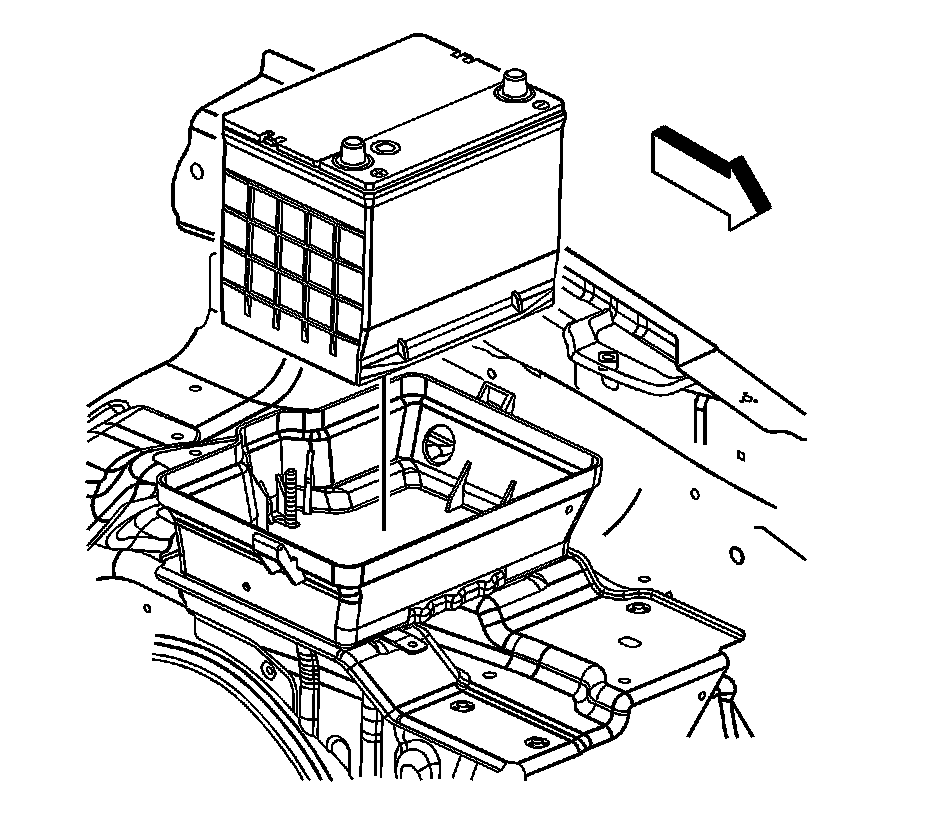

13. Remove the battery from the lower battery box.

Installation Procedure




1. Install the battery to the lower battery box.




2. Install the battery retainer (3).
3. Install the battery tray strap (2).

Notice: Refer to Fastener Notice.

4. Install the battery retainer nut (1).

Tighten the nut to 15 N.m (11 lb ft).




5. Engage the battery strap pin (2) to the battery tray bracket stopper.




6. Install the upper battery box (2) over the battery, engage the locking tabs (1) into the lower battery box.
7. Connect the battery vent duct to the upper battery box (2).




8. Connect the battery vent duct to the upper battery box (1).




9. Install the engine wiring harness clip (2) to the upper battery box.




10. Install the generator battery control module clip (1) to the upper battery box.




11. Clean any existing corrosion from the battery terminal and battery cable using a wire brush.
12. Connect the positive battery cable (2) to the battery.

Tighten the nut to 9 N.m (80 lb in).

13. Close the protective cover over the positive battery cable terminal.
14. Connect the negative battery cable.
