Battery Box Replacement

Battery Box Replacement

Removal Procedure




1. Remove the battery.
2. Remove the battery cable harness clips (1, 2) from the battery tray.

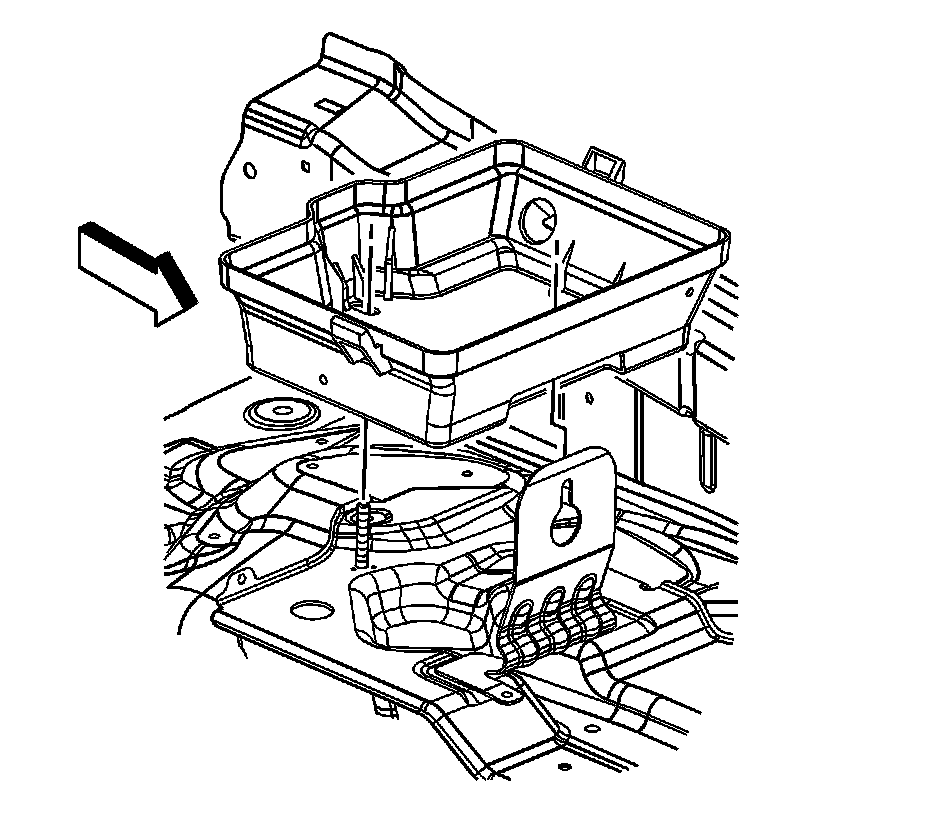

3. Lift the lower battery box upward from the battery tray.

Installation Procedure




1. Install the lower battery box to the retainer stud and battery tray.




2. Install the battery cable harness clips (1, 2) to the battery tray.
3. Install the battery.
