SIR Identification Views

SIR Identification Views

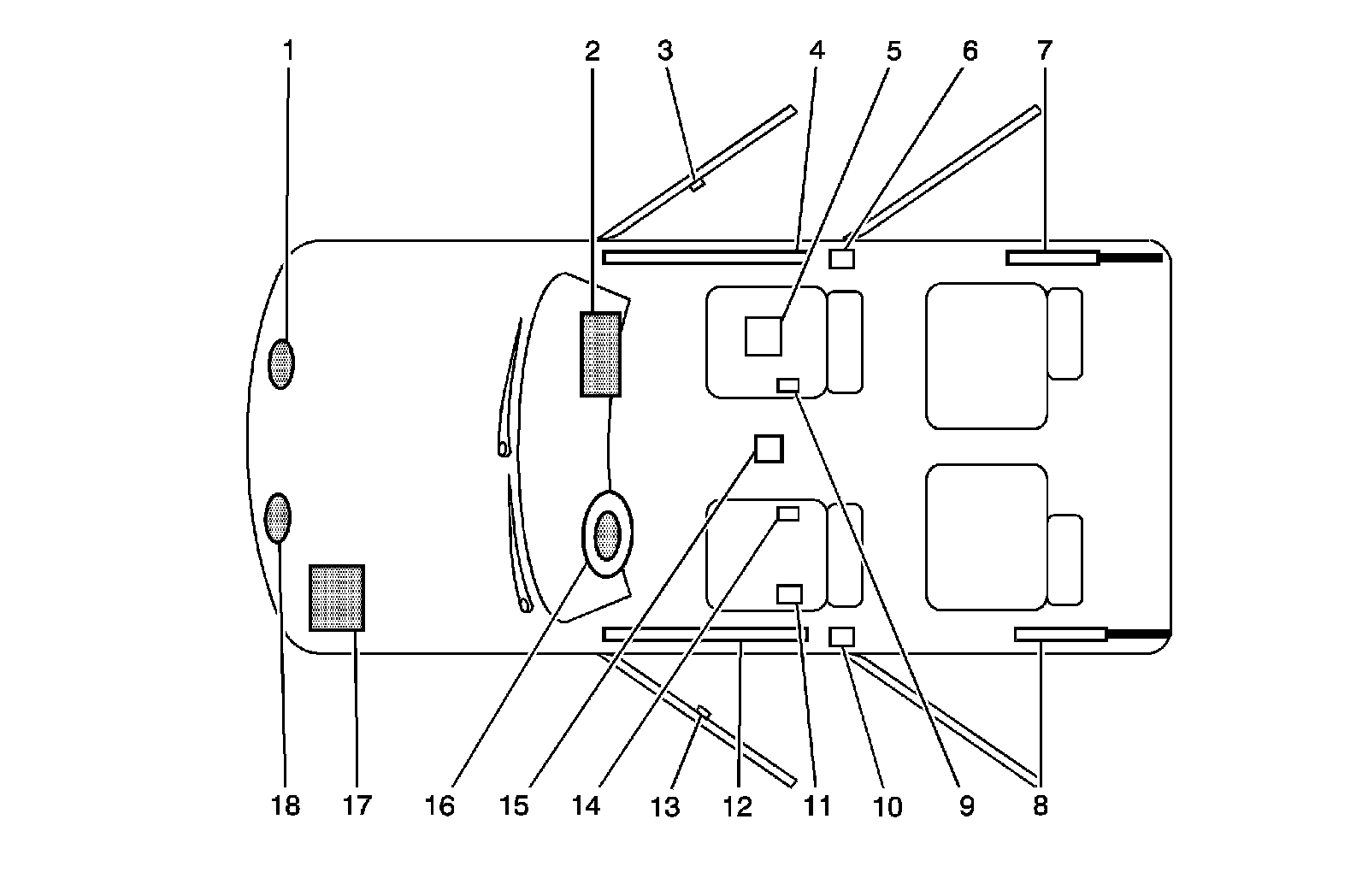

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. Refer to SIR Disabling and Enabling.

Hummer H3




1 - Inflatable Restraint Front End Sensor - Right-Located on the front of the vehicle in the engine compartment
2 - Inflatable Restraint I/P Module-Located at the top right under the instrument panel
3 - Inflatable Restraint Side Impact Sensor (SIS) - Right-Located under right front door trim near the lower rear of door frame
4 - Inflatable Restraint Roof Rail Module - Right-Located in the headliner along roof rail
5 - Passenger Presence System-Located under passenger seat
6 - Seat Belt Retractor Pretensioner - Right-Located on the floor next to the right front seat
7 - Rear Liftgate Start-A Gas Shock-Located at rear of vehicle
8 - Rear Liftgate Start-A Gas Shock-Located at rear of vehicle
9 - Inflatable Restraint Seat Position Switch - Right-Located on the side of the right front seat
10 - Seat Belt Retractor Pretensioner - Left-Located on the floor next to the left front seat
11 - Inflatable Restraint Vehicle Rollover Sensor-Located under driver seat
12 - Inflatable Restraint Side Roof Rail Module - Left-Located in the headliner along the roof rail
13 - Inflatable Restraint Side Impact Sensor (SIS) - Left-Located under left front door trim near the lower rear of door frame
14 - Inflatable Restraint Seat Position Switch - Left-Located on the side of the left front seat
15 - Inflatable Restraint Sensing and Diagnostic Module (SDM)-Located under center floor console
16 - Inflatable Restraint Steering Wheel Module-Located on the steering wheel
17 - Battery and Underhood Fuse Block - Restraint Systems Fuse-Located in engine compartment on left side
18 - Inflatable Restraint Front End Sensor - Left-Located on the front of the vehicle in the engine compartment
