SIR Component Views

SIR Component Views

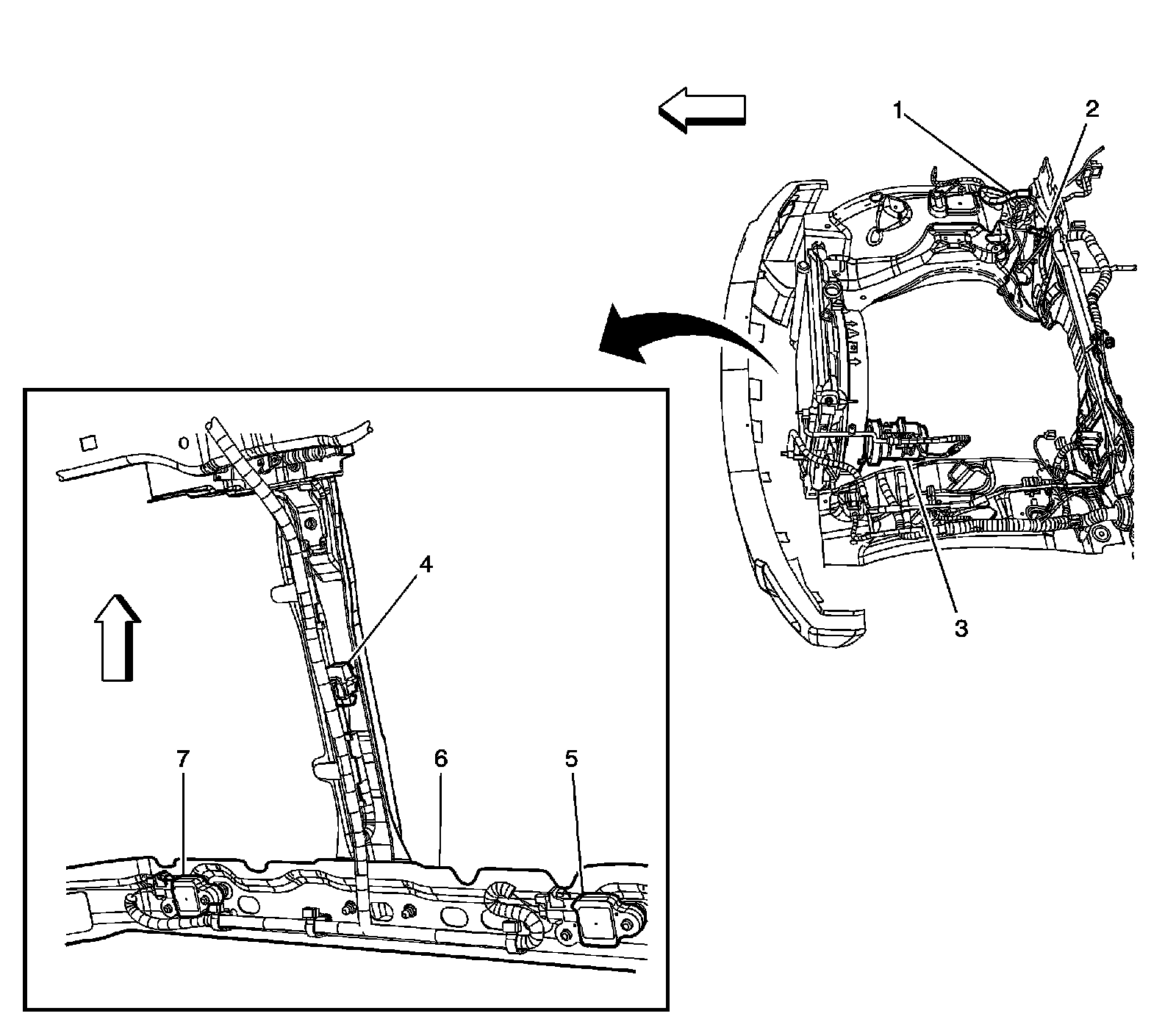

Engine Compartment




1 - Body Harness
2 - A/C Refrigerant Pressure Sensor
3 - A/C Compressor Clutch
4 - Ambient Air Temperature Sensor
5 - Inflatable Restraint Front End Sensor - Right
6 - Lower Radiator Support
7 - Inflatable Restraint Front End Sensor - Left

Steering Column Harness Components




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Inflatable Restraint Steering Wheel Module Connectors
3 - Ignition Switch
4 - Ignition Lock Cylinder Control Actuator (M30)
5 - Steering Wheel Position Sensor (JL4)
6 - C201 Steering Column Harness to I/P Harness
7 - C275 Steering Column Harness to I/P Harness
8 - Ignition Switch
9 - Turn Signal/Multifunction Switch

I/P Harness Components

I/P Harness Components:

1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Hazard Switch
4 - Accessory Switch
5 - Radio
6 - Ambient Light Sensor
7 - Inflatable Restraint I/P Module
8 - HVAC Control Module
9 - Auxiliary Power Outlets - Front
10 - Rear Window Wiper/Washer Switch
11 - Inflatable Restraint Steering Wheel Module
12 - Turn Signal/Multifunction Switch

Brake Components

Brake Components (w/o JL4):

1 - Inflatable Restraint Vehicle Rollover Sensor (ASF)
2 - Yaw Rate/Lateral and Longitudinal Accelerometer Sensor (JL4)
3 - Brake Fluid Reservoir
4 - Electronic Brake Control Module (EBCM) C2
5 - Electronic Brake Control Module (EBCM)
6 - Electronic Brake Control Module (EBCM) C1
7 - Brake Fluid Level Switch

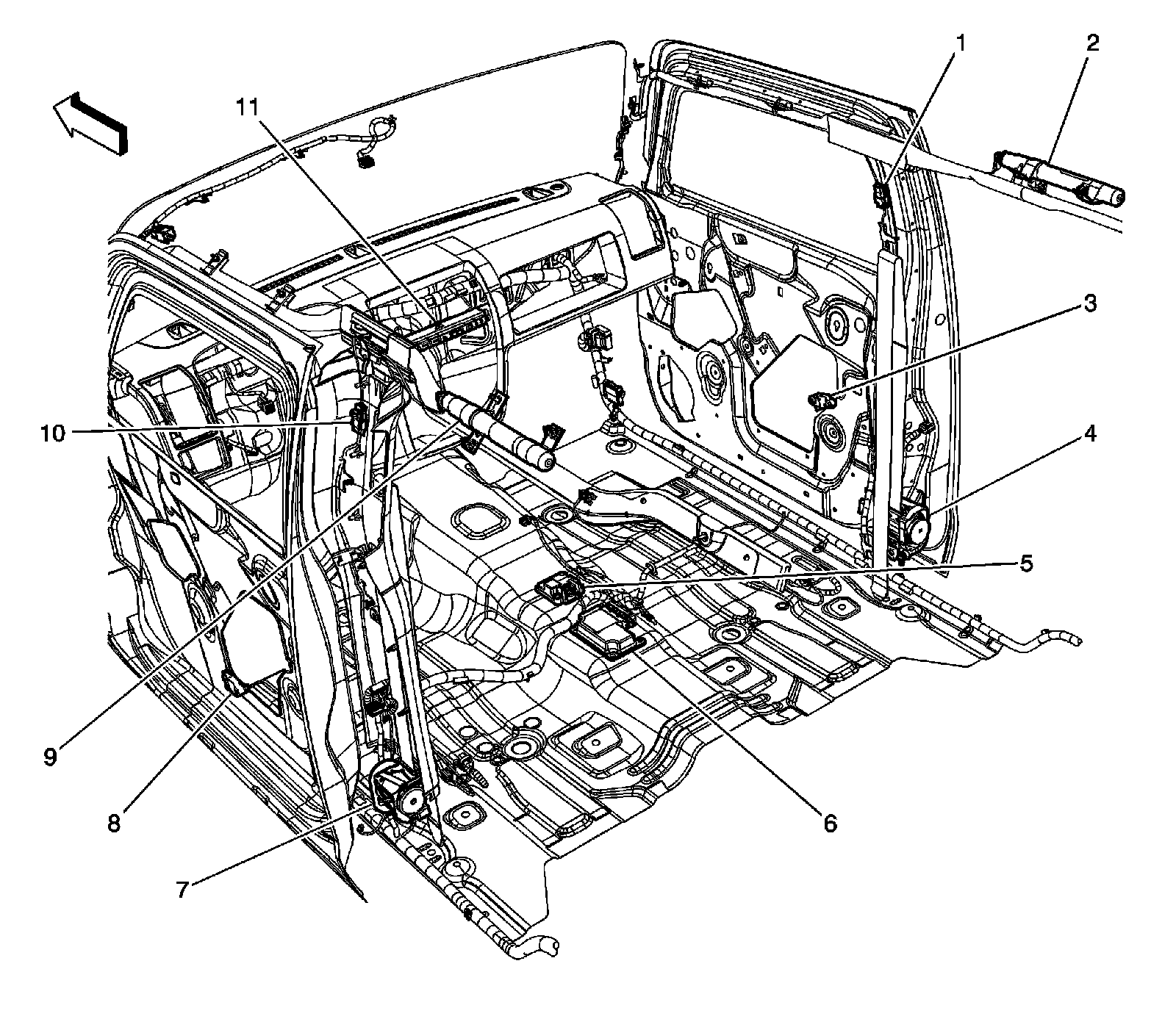

SIR Components




1 - Inflatable Restraint Roof Rail Module - Right Connector (ASF)
2 - Inflatable Restraint Roof Rail Module - Right (ASF)
3 - Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
4 - Seat Belt Pretensioner - RF
5 - Inflatable Restraint Vehicle Rollover Sensor (ASF)
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
7 - Seat Belt Pretensioner - LF
8 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
9 - Inflatable Restraint Roof Rail Module - Left (ASF)
10 - Inflatable Restraint Roof Rail Module - Left Connector (ASF)
11 - Inflatable Restraint Front Passenger Presence System (PPS) Indicator

Driver Seat Components




1 - Heater Element Seat Back - Driver (KA1)
2 - Lumbar Pump Motor - Driver (AG1)
3 - Heater Element Seat Cushion - Driver (KA1)
4 - S306 (AG1)
5 - S312 (AG1)
6 - Seat Circuit Breaker (AG1)
7 - C307 (AG1)
8 - C308
9 - Heated Seat Module - Driver (KA1)
10 - Inflatable Restraint Seat Position Sensor (SPS) - Left
11 - Seat Motors - Driver (AG1)
12 - Seat Adjuster Switch - Driver (AG1)
13 - Lumbar Adjuster/Heater Switch - Driver (AG1)
14 - Seat Belt Buckle - Driver

Passenger Seat Components




1 - Inflatable Restraint Passenger Presence System (PPS) Module
2 - Heater Element Seat Cushion - Passenger (KA1)
3 - Seat Belt Buckle - Passenger C1
4 - Seat Belt Buckle - Passenger C2
5 - C320
6 - C315
7 - C318 (AG2)
8 - S341 (AG2)
9 - S316 (AG2)
10 - Inflatable Restraint Passenger Presence System (PPS)
11 - Inflatable Restraint Seat Position Sensor (SPS) - Right
12 - Lumbar Pump Motor - Passenger (AG2)
13 - Heater Element Seat Back - Passenger (KA1)
14 - Heated Seat Module - Passenger (KA1)
15 - Seat Motors - Passenger (AG2)
16 - Seat Belt Buckle - Passenger
17 - Lumbar Adjuster/Heater Switch - Passenger (AG2)
18 - Seat Adjuster Switch - Passenger (AG2)
