Electrical Diagrams

SIR Schematics

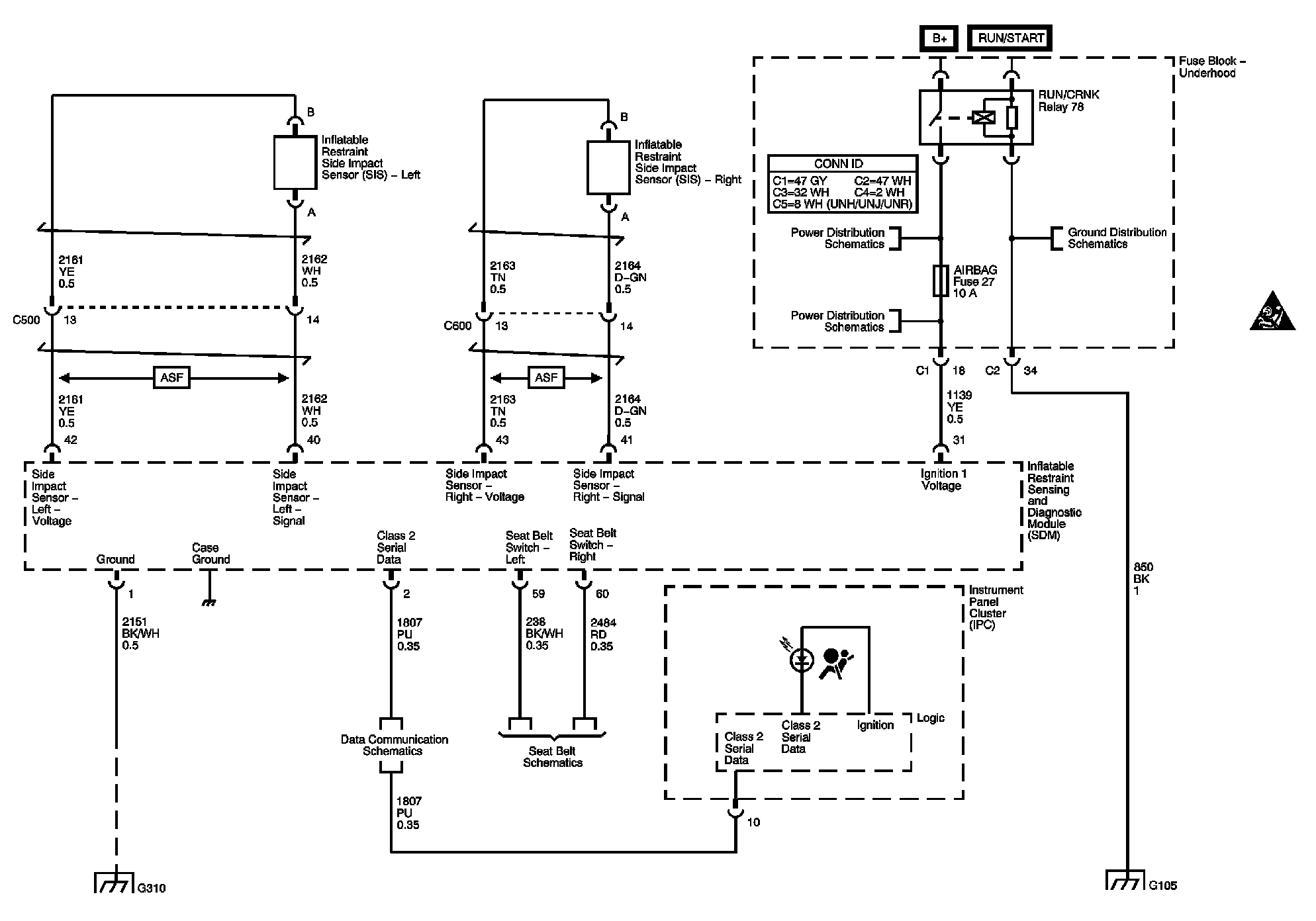

Module Power, Ground, Serial Data, Indicators, and Side Impact Sensors

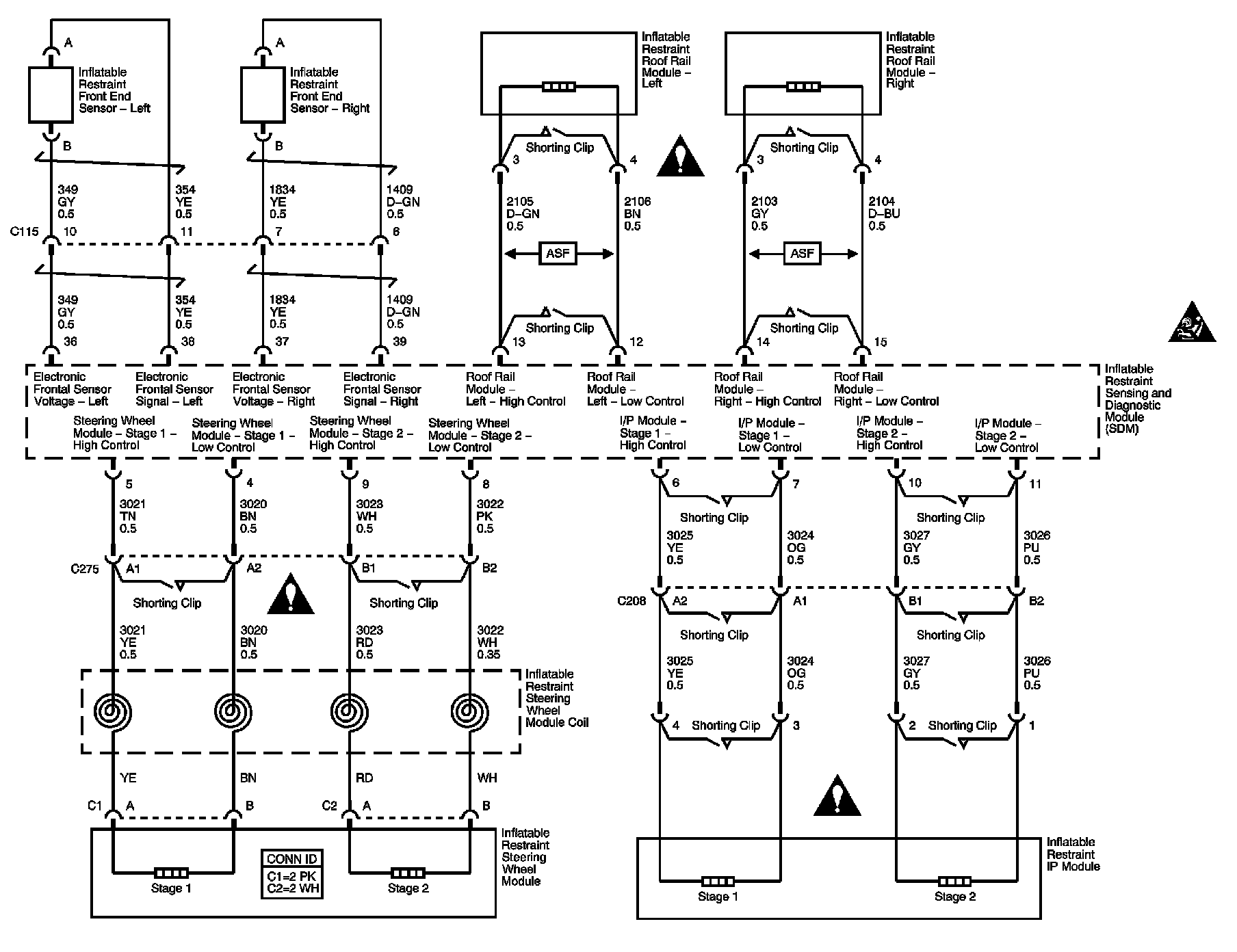

Front End Sensors and Modules

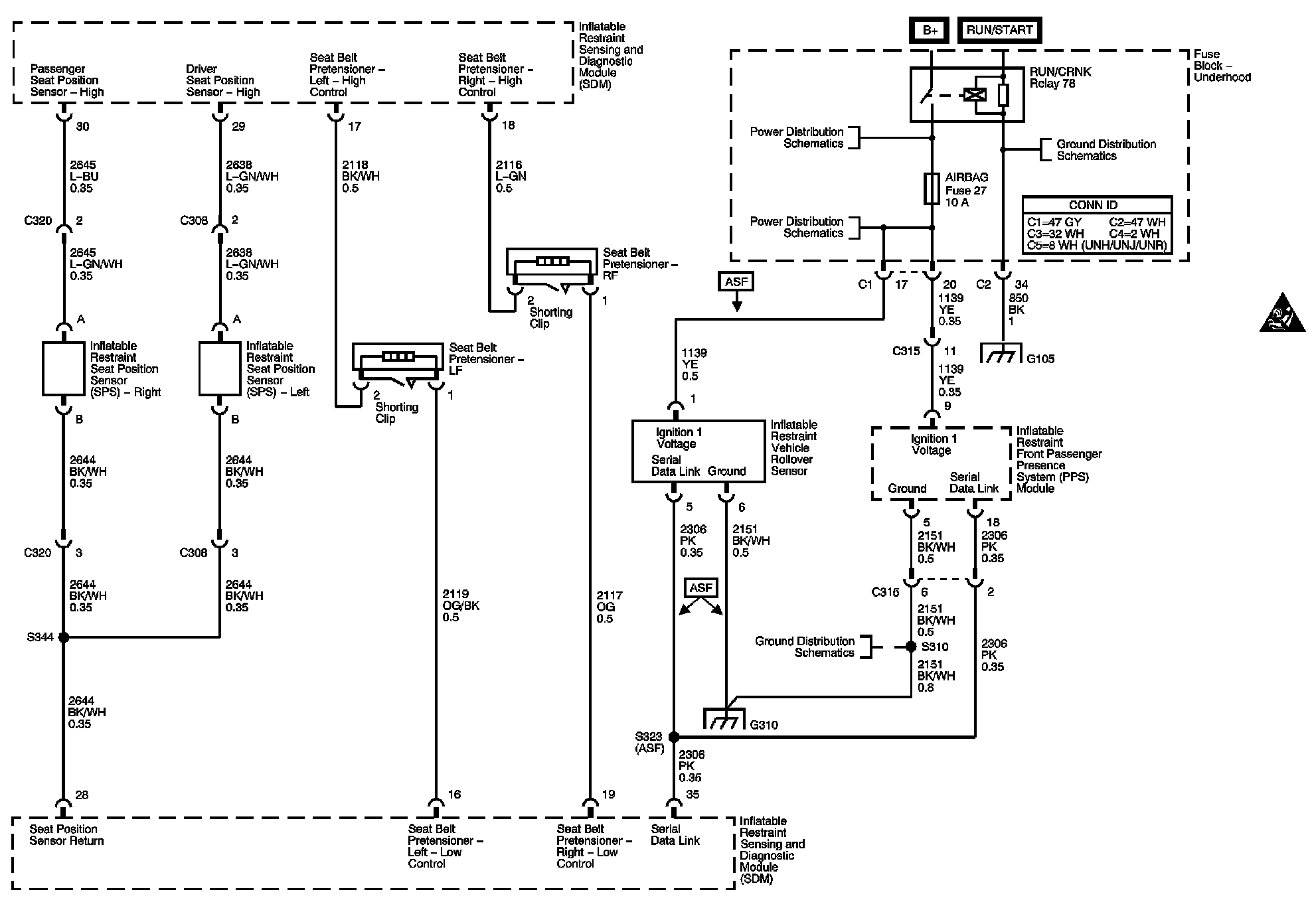

Seat Position Sensors, Rollover Sensor, PPS Module, and Seat Belt Pretensioners

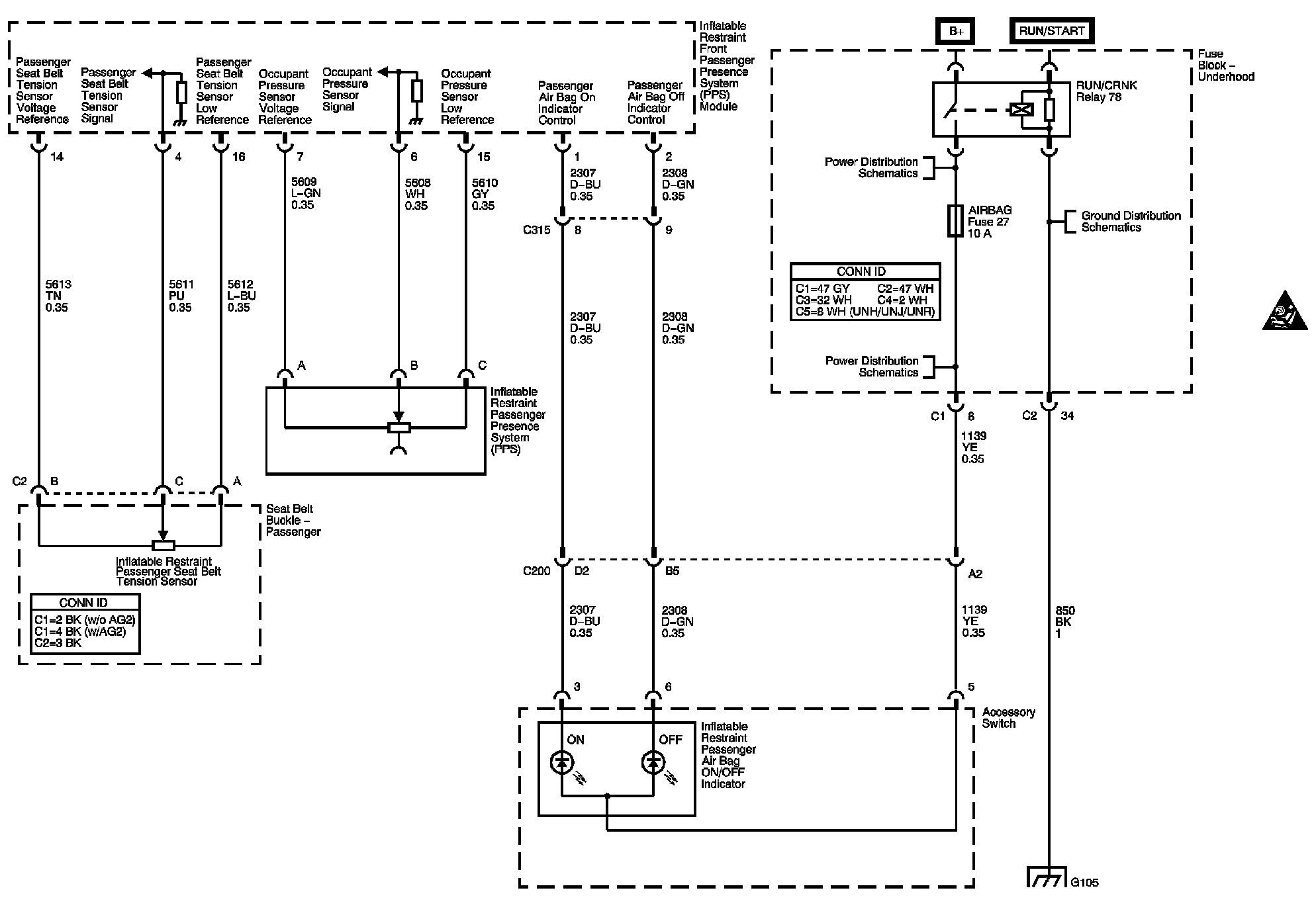

PPS Sensors and Indicators






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
