Connector Views

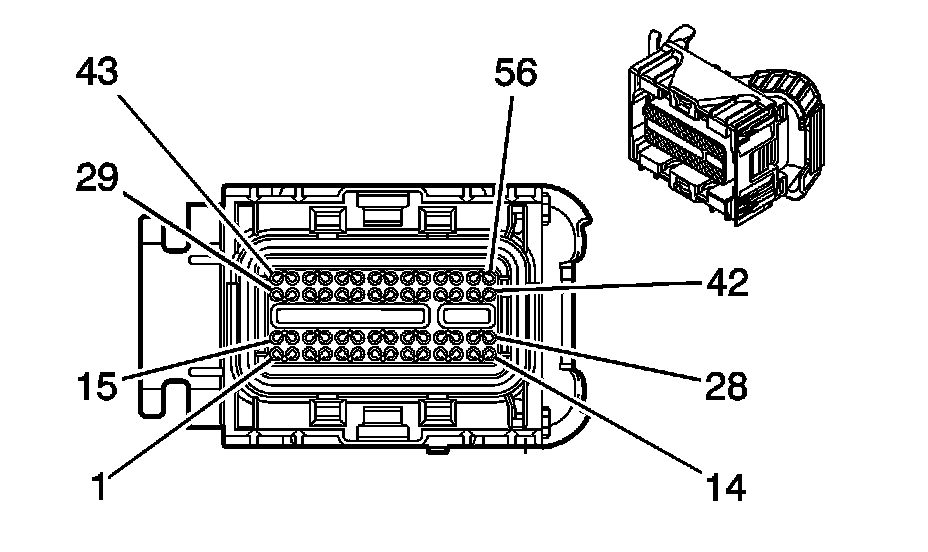

Powertrain Control Module Connector End Views

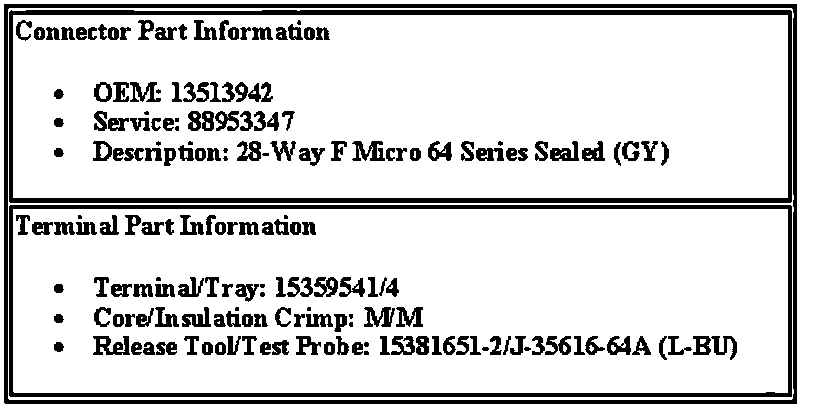

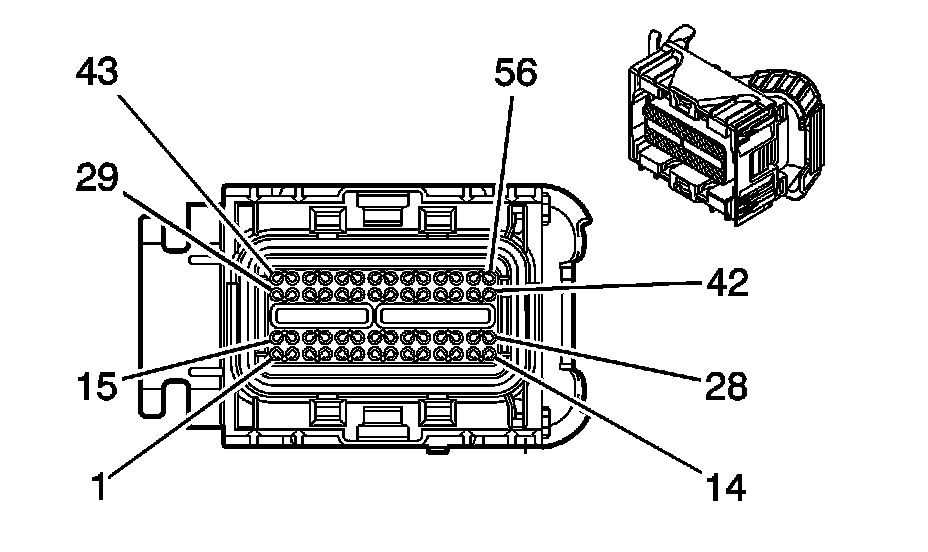

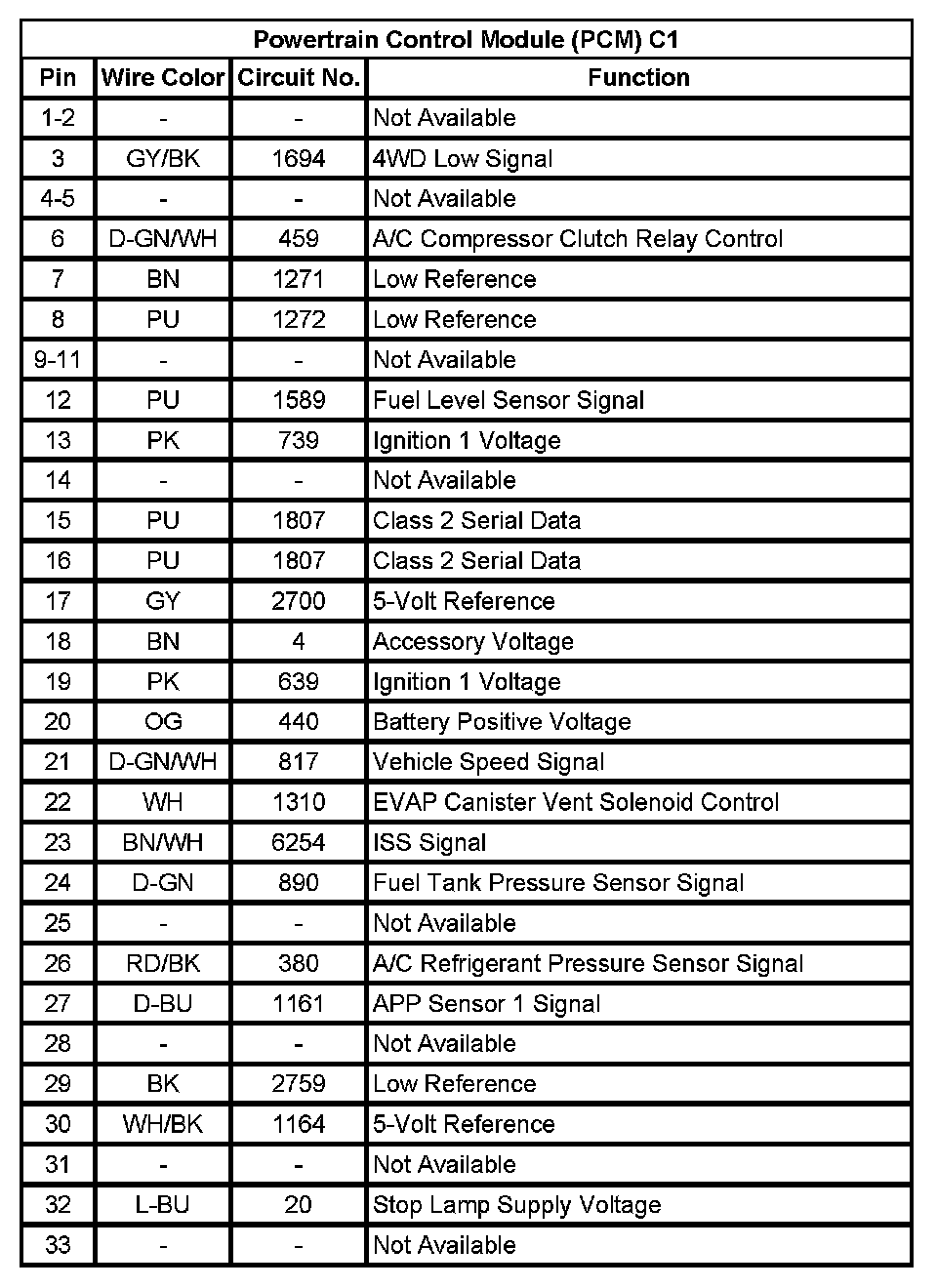

Powertrain Control Module (PCM) C1
Powertrain Control Module (PCM) C1 (Pin 1 To 33):

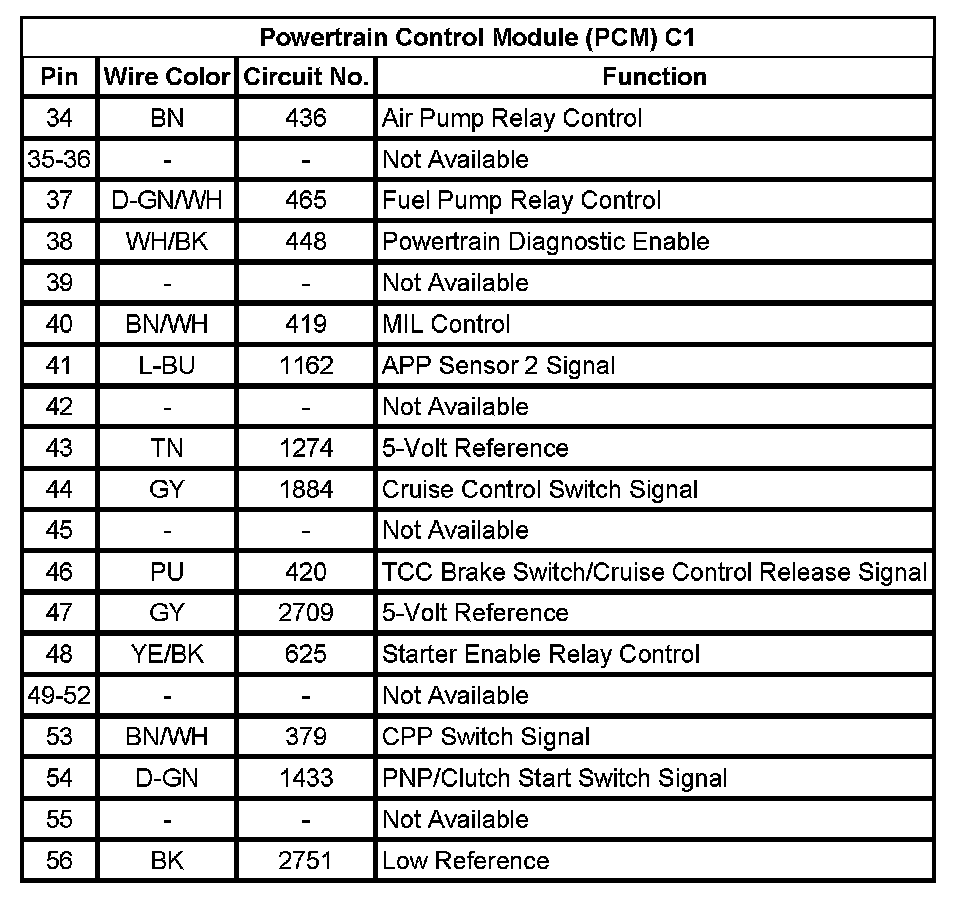

Powertrain Control Module (PCM) C1 (Pin 34 To 56):

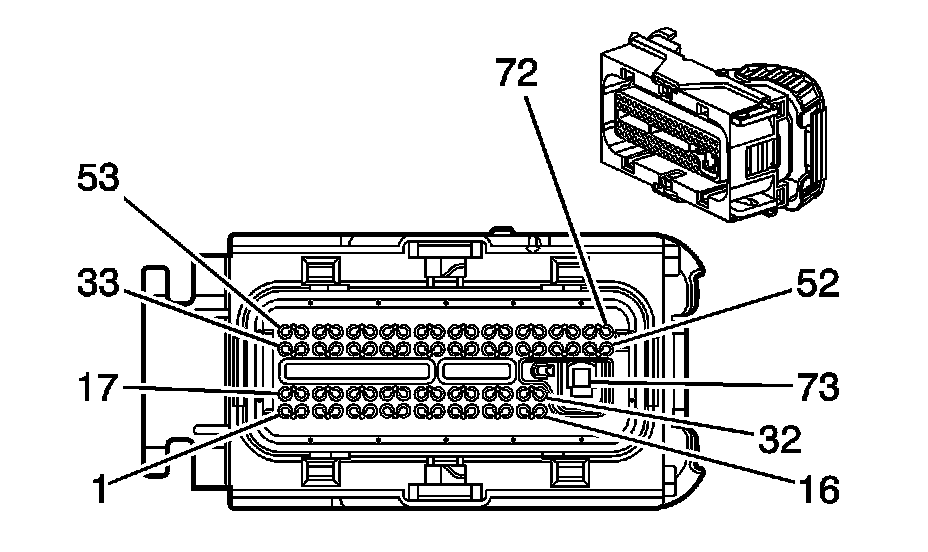

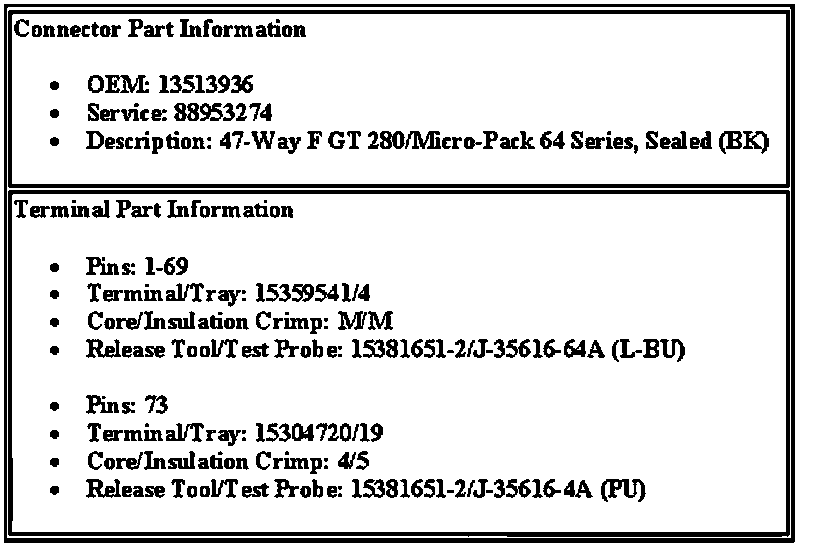

Powertrain Control Module (PCM) C2

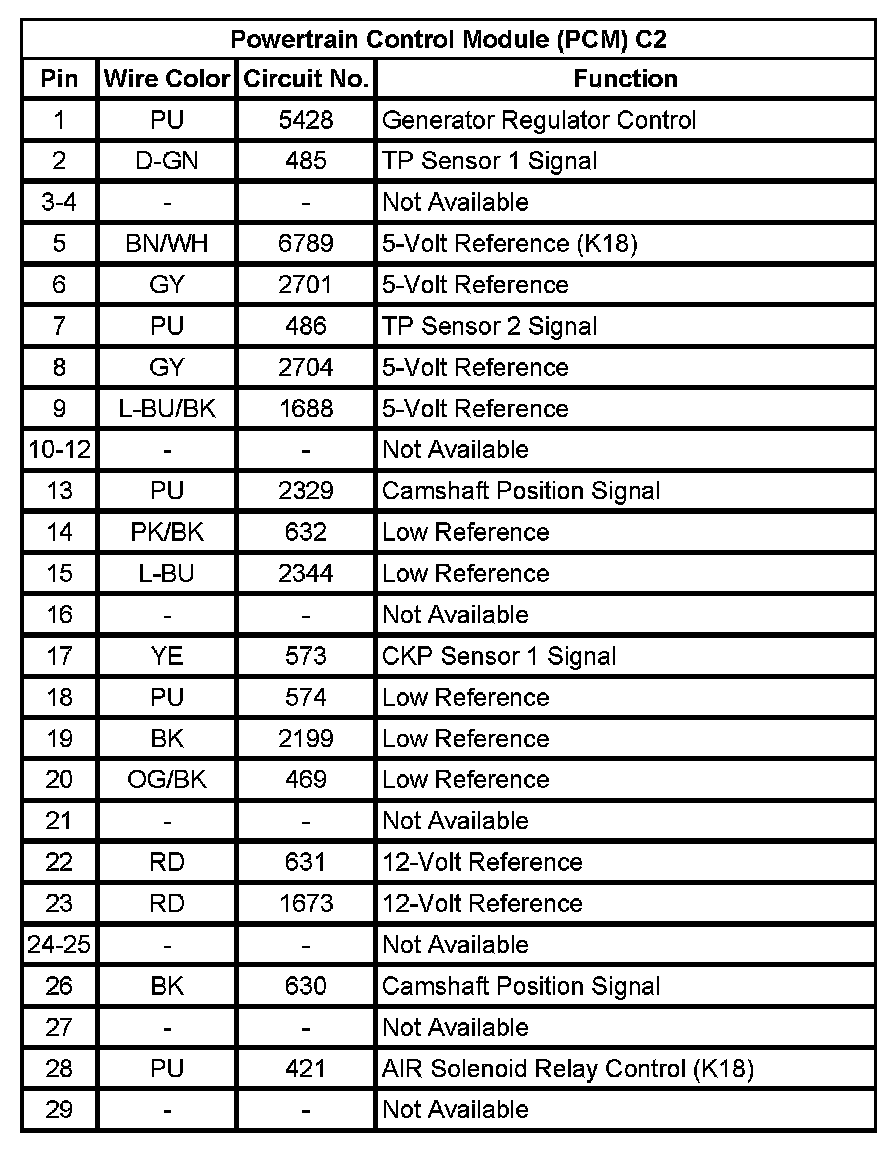

Powertrain Control Module (PCM) C2 (Pin 1 To 29):

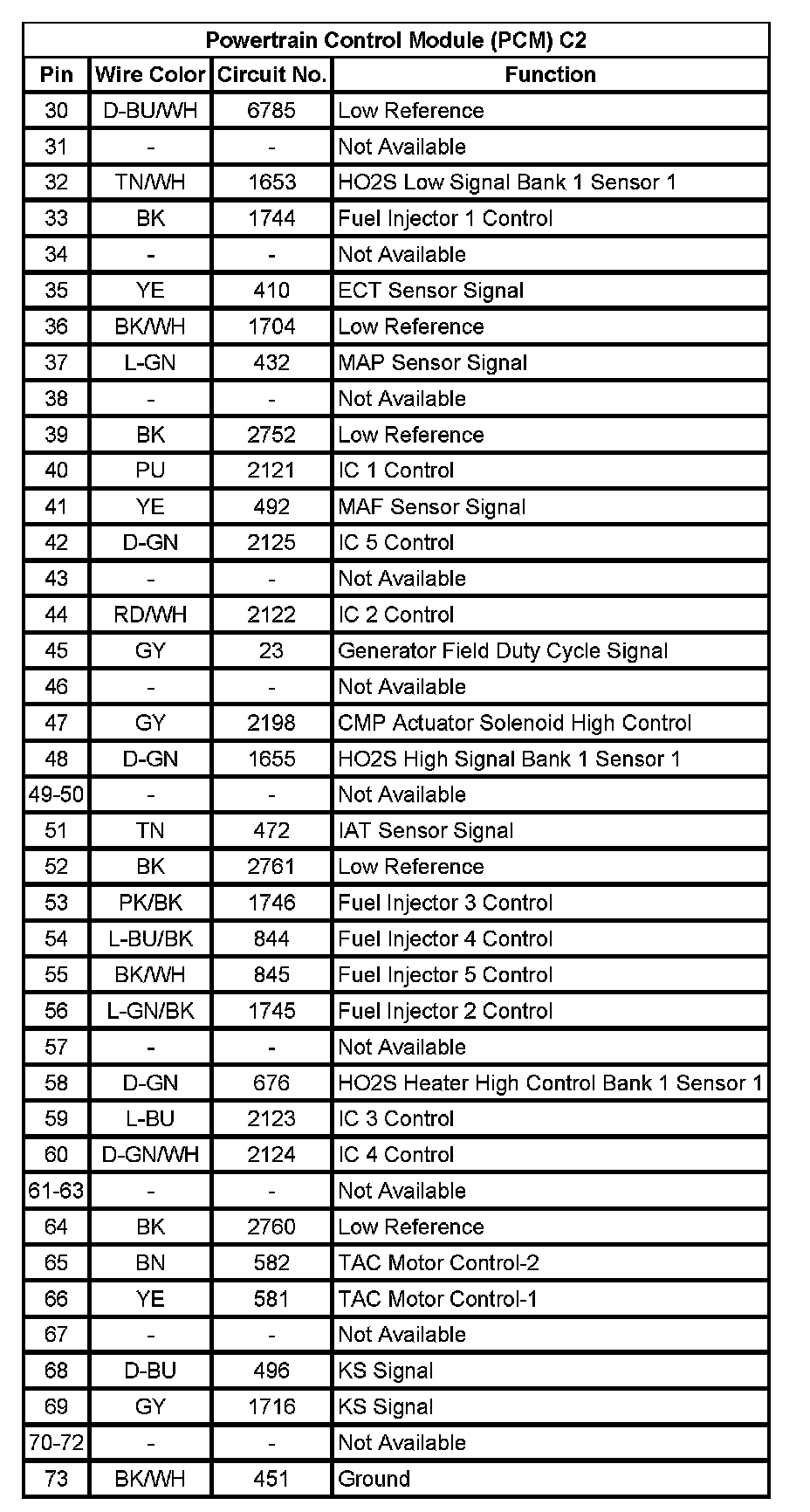

Powertrain Control Module (PCM) C2 (Pin 30 To 73):

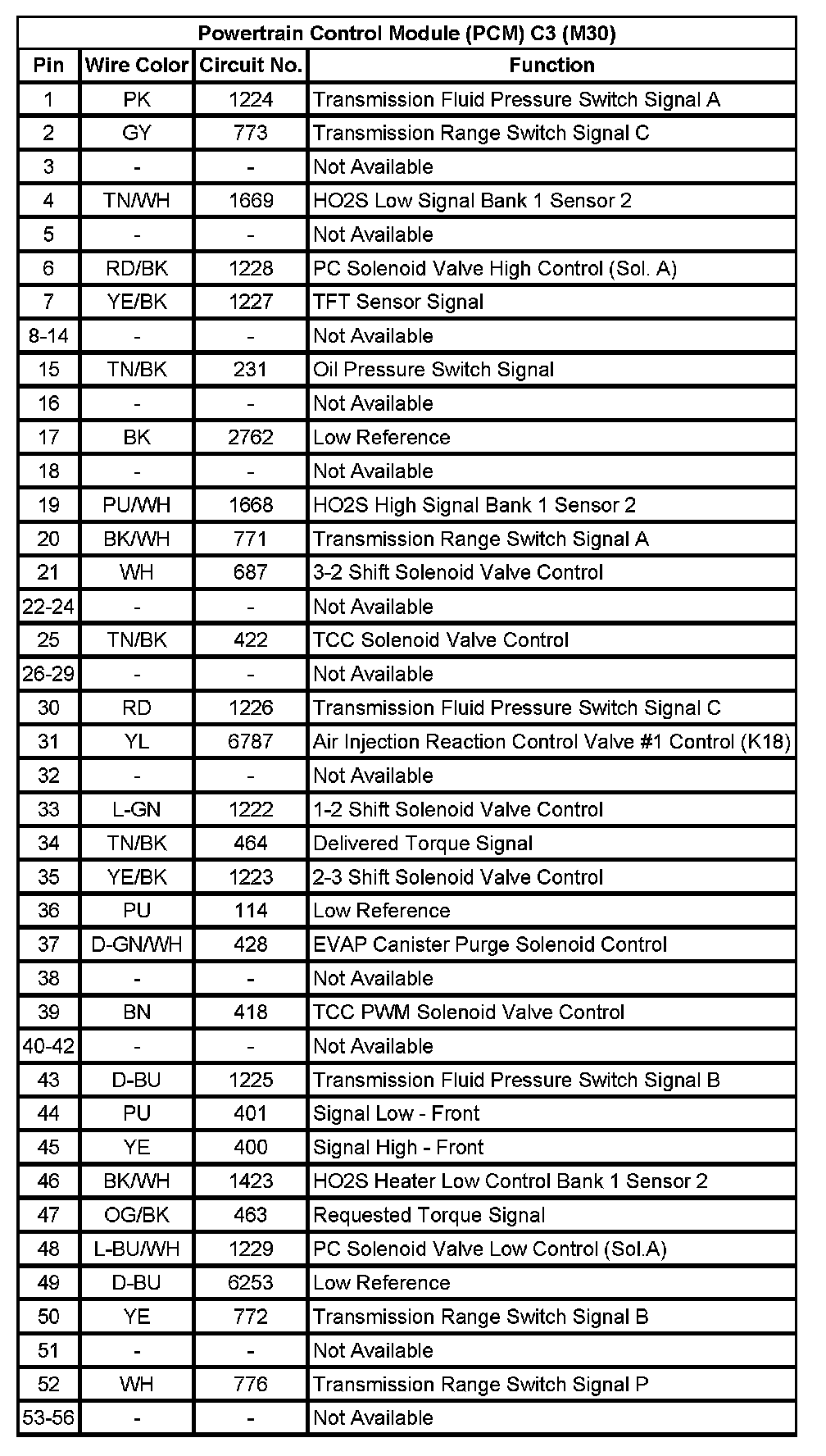

Powertrain Control Module (PCM) C3 (M30)

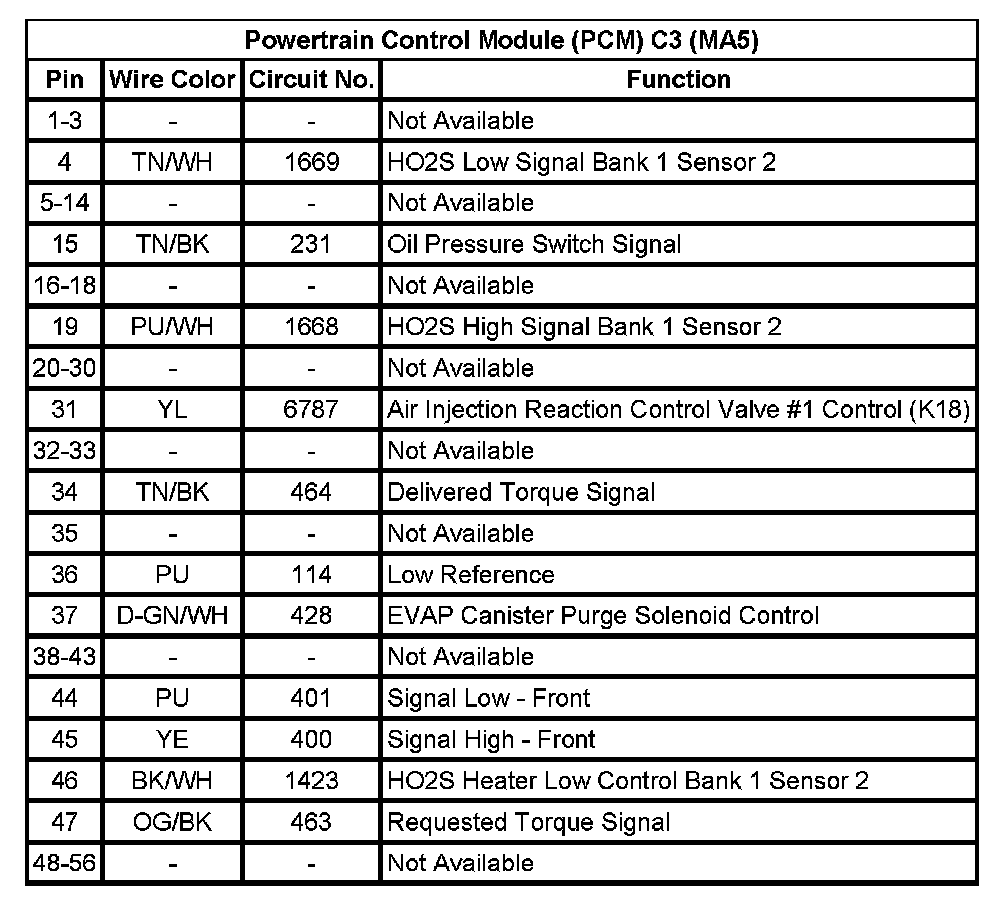

Powertrain Control Module (PCM) C3 (MA5)
