Emission Hose Routing Diagram

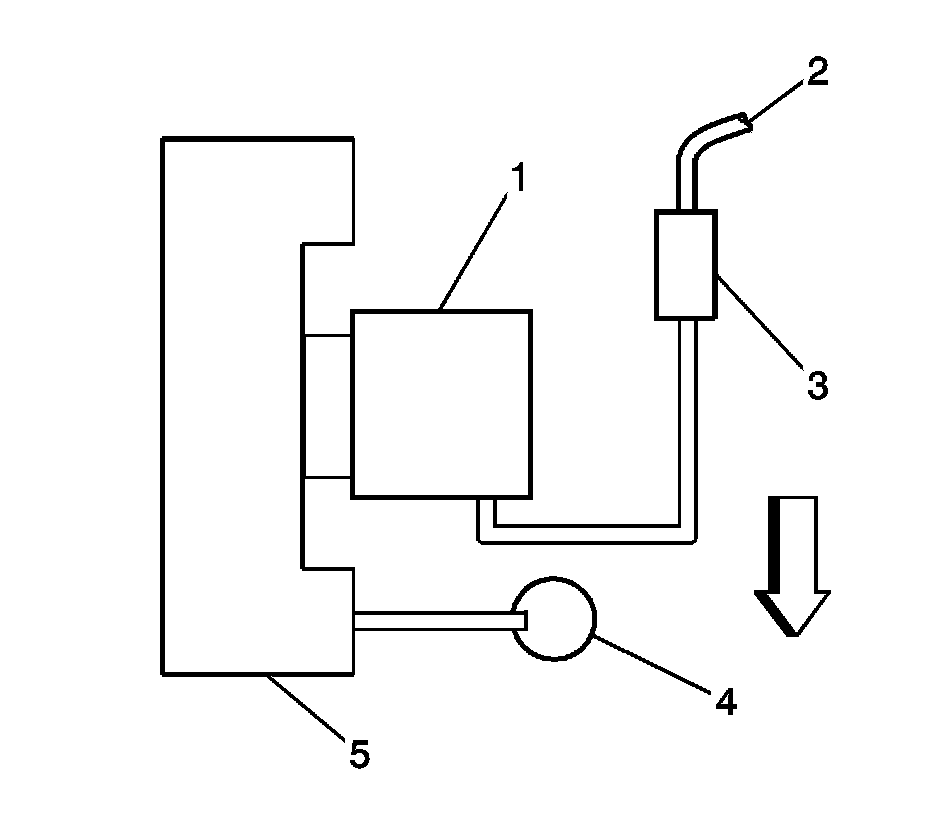

Emission Hose Routing Diagram

1 - Throttle Body
2 - To the EVAP Canister
3 - EVAP Canister Purge Valve
4 - Preplenum Resonator
5 - Fuel Pressure Regulator
