Air Injection Pump: Diagrams

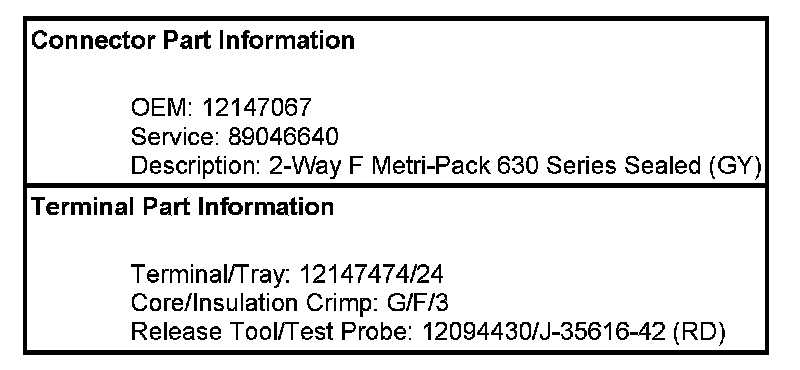

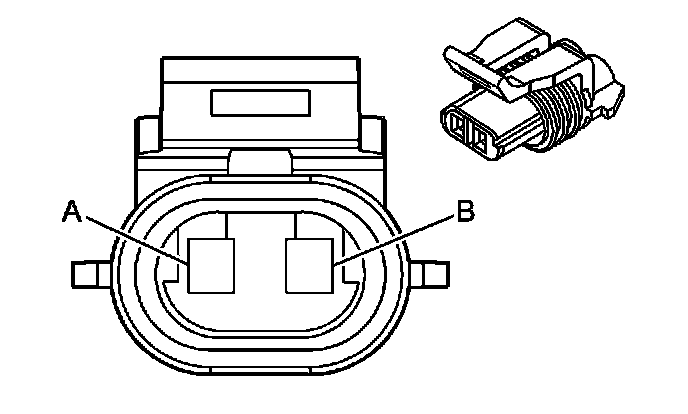

Engine Controls Connector End Views

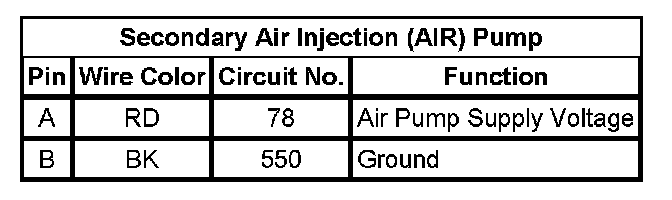

Secondary Air Injection (AIR) Pump

Reverse Lockout Solenoid:
