Front Engine Compartment-LLR

Power and Grounding Component Views

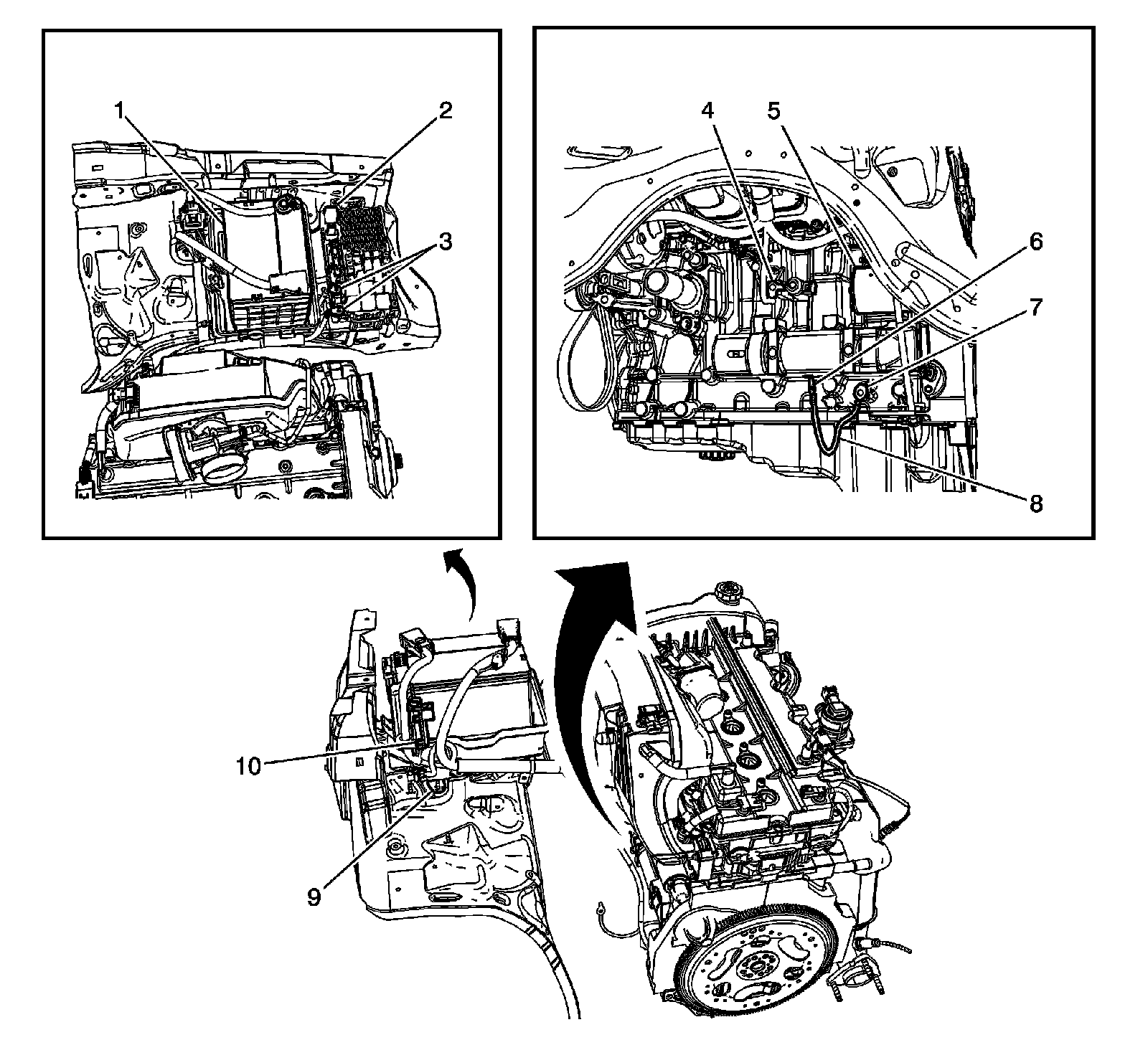

Front Engine Compartment-LLR




1 - Battery
2 - Fuse Block-Underhood
3 - Positive Battery Studs
4 - G104
5 - Starter
6 - G120
7 - G110
8 - Ground Strap
9 - G100
10 - Generator Control Module
