Engine Components - Left Side (L52)

Power and Grounding Component Views

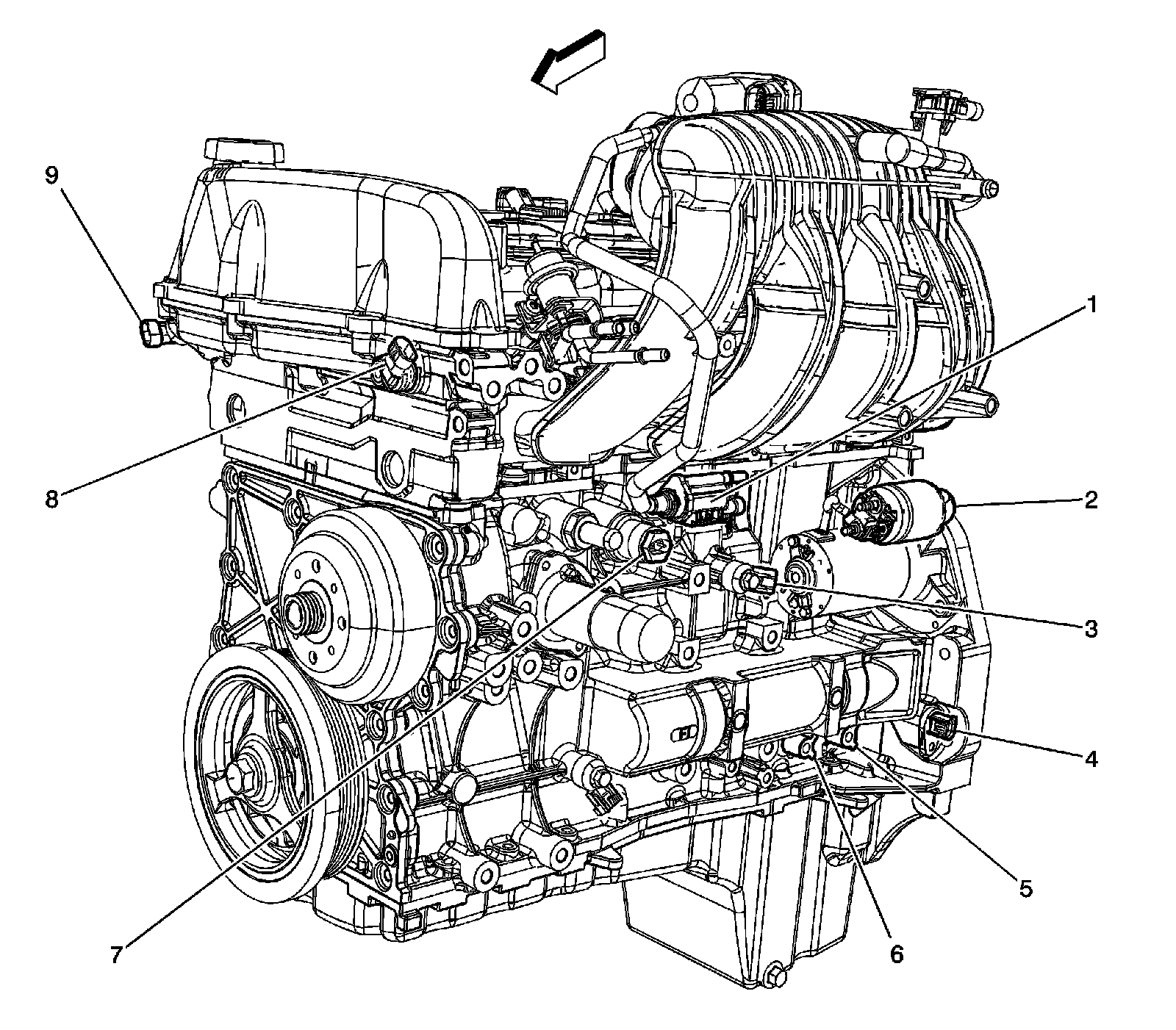

Engine Components - Left Side (L52)




1 - Evaporative Emission (EVAP) Canister Purge Soleniod Valve
2 - Starter Solenoid
3 - Knock Sensor (KS) Bank 2
4 - Crankshaft Position (CKP) Sensor
5 - G102
6 - G103
7 - Engine Block Heater
8 - Camshaft Position (CMP) Sensor - Intake
9 - Camshaft Position (CMP) Sensor - Exhaust
