Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlight Leveling Inoperative

Headlight Leveling Inoperative



Headlight Leveling Inoperative

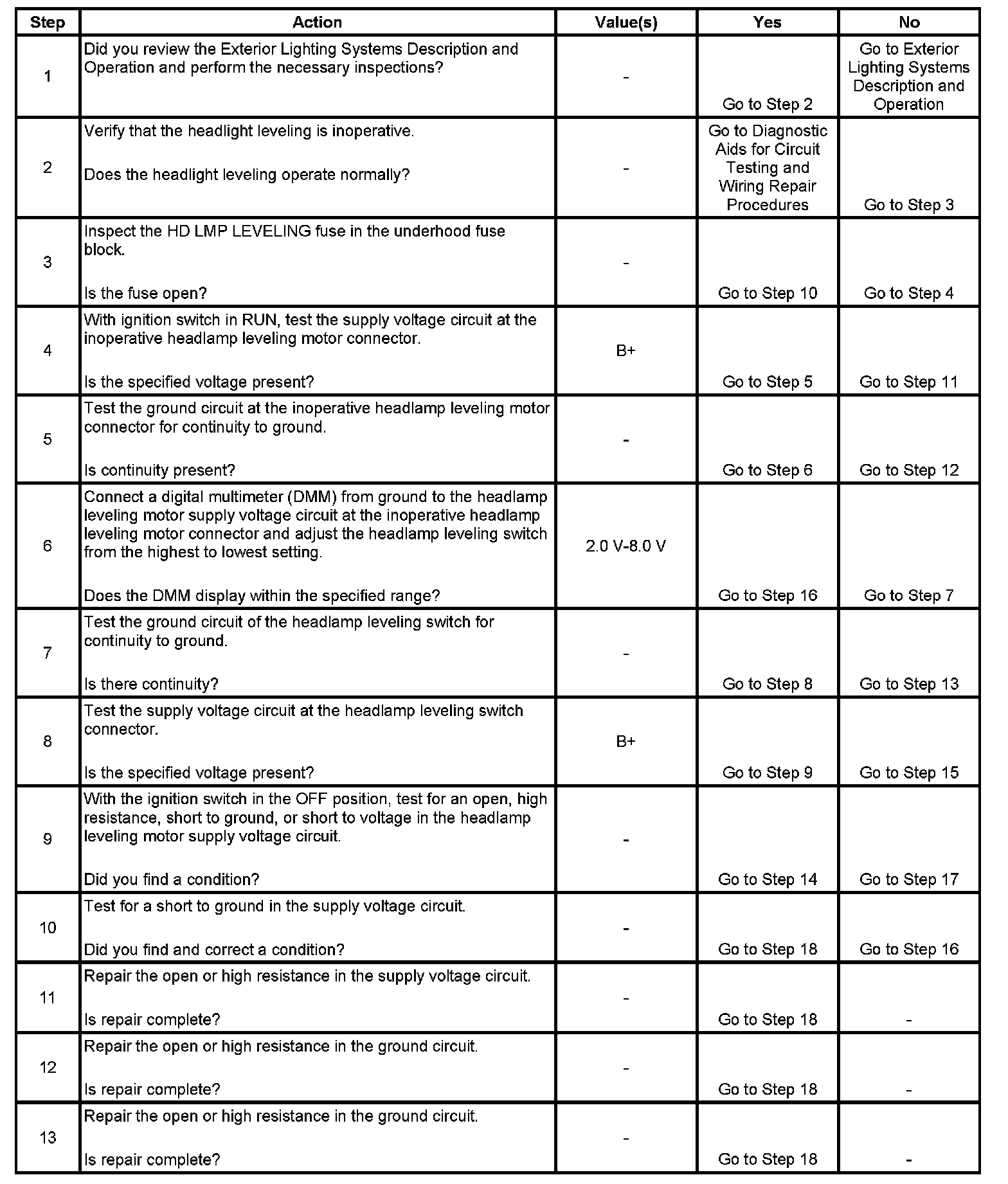

Step 1 - Step 13:

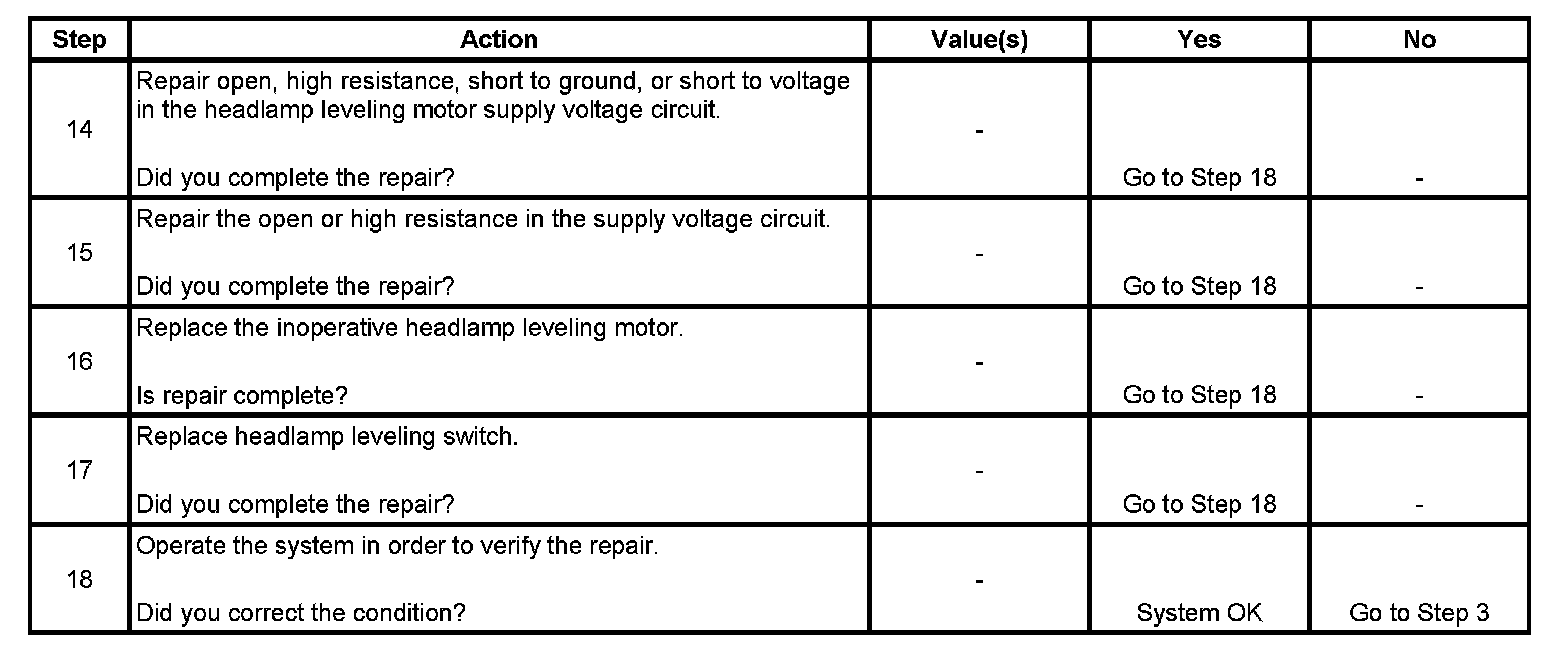

Step 14 - Step 18:
