FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Hummer
>>
2007
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Headlamp Low or High Beams Always On
Headlamp Low or High Beams Always On
Headlamp
Low or High Beams Always On

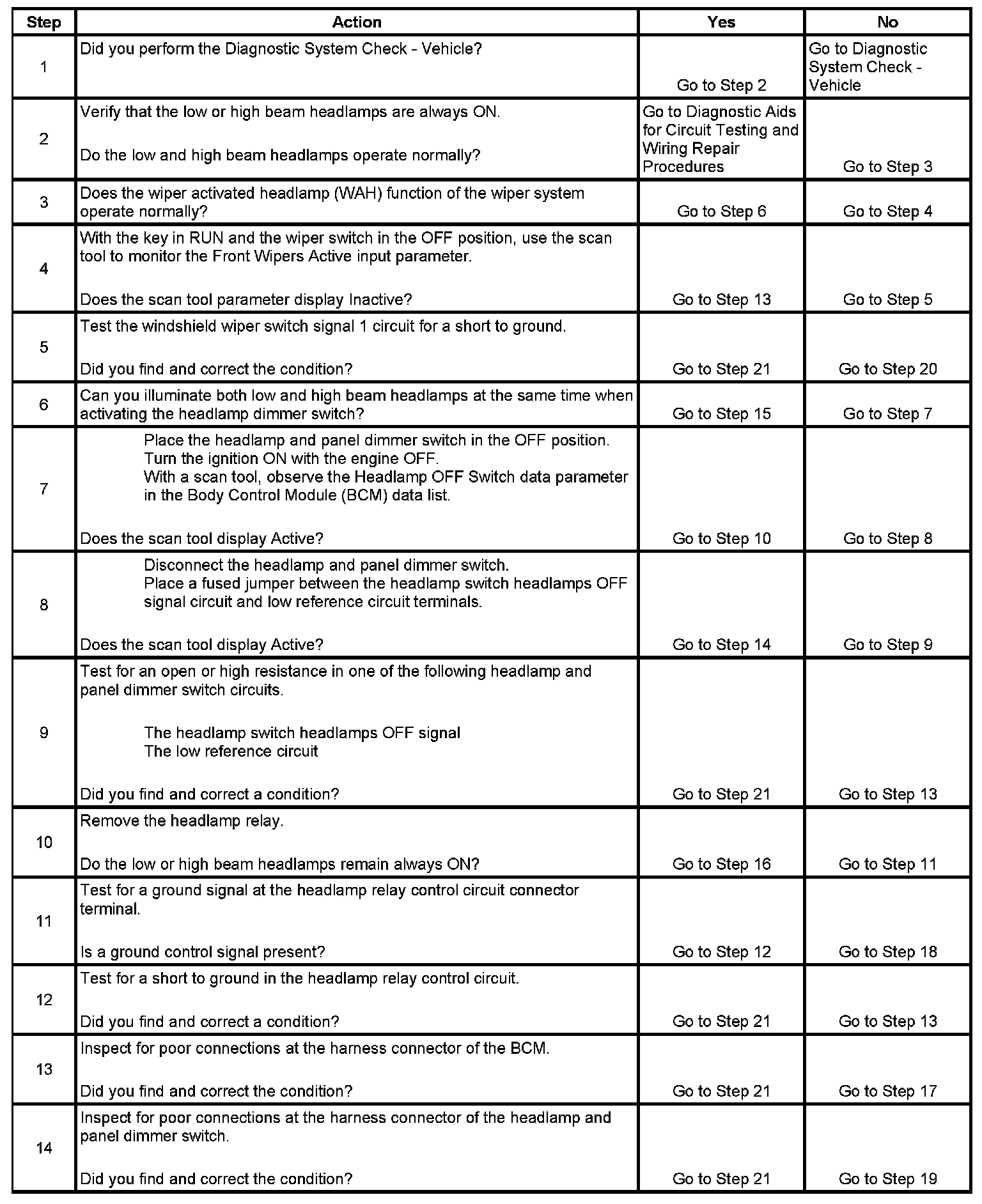

Step 1 - Step 14:

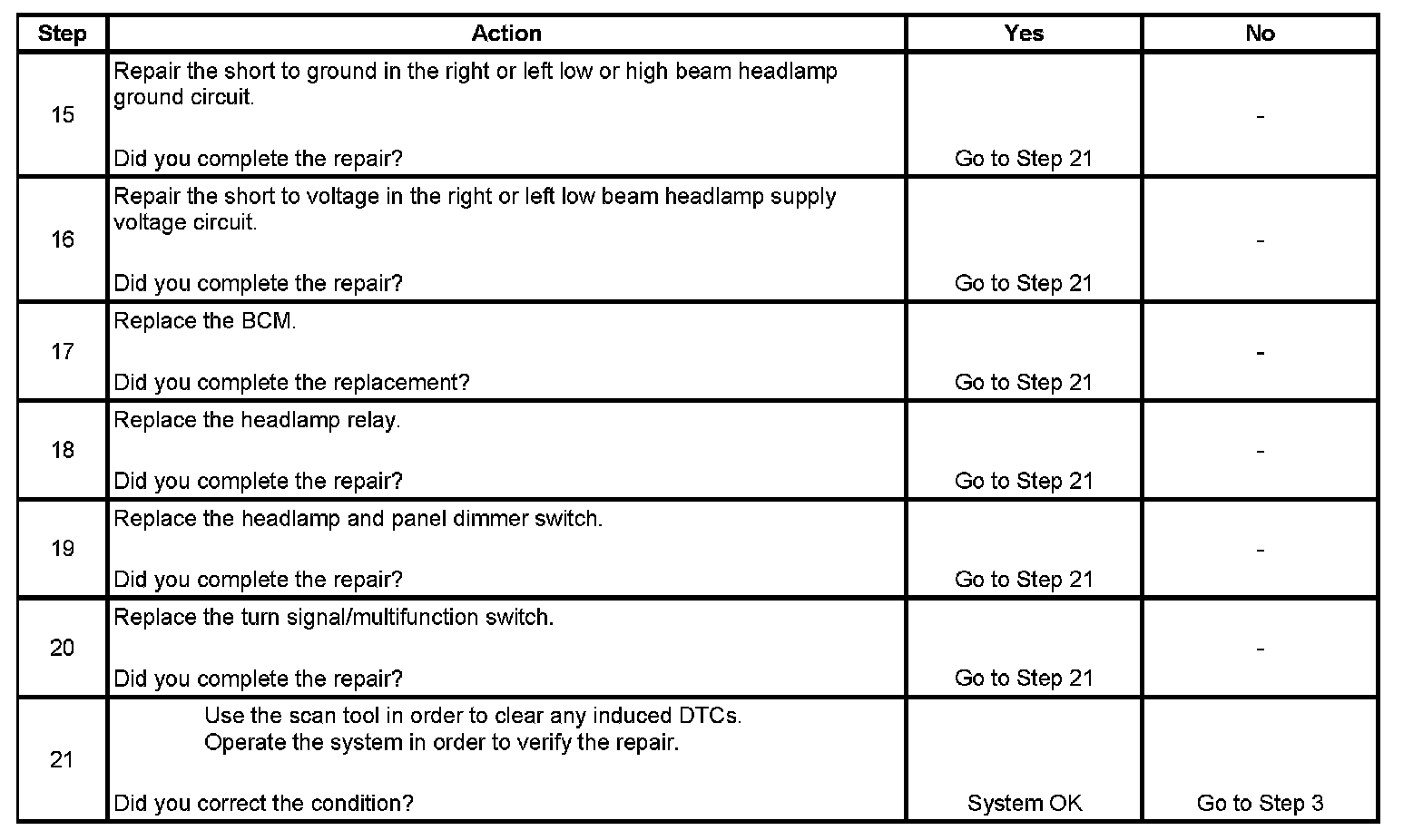

Step 15 - Step 21:
