Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Courtesy Lamps Inoperative

Courtesy Lamps Inoperative



Courtesy Lamps Inoperative

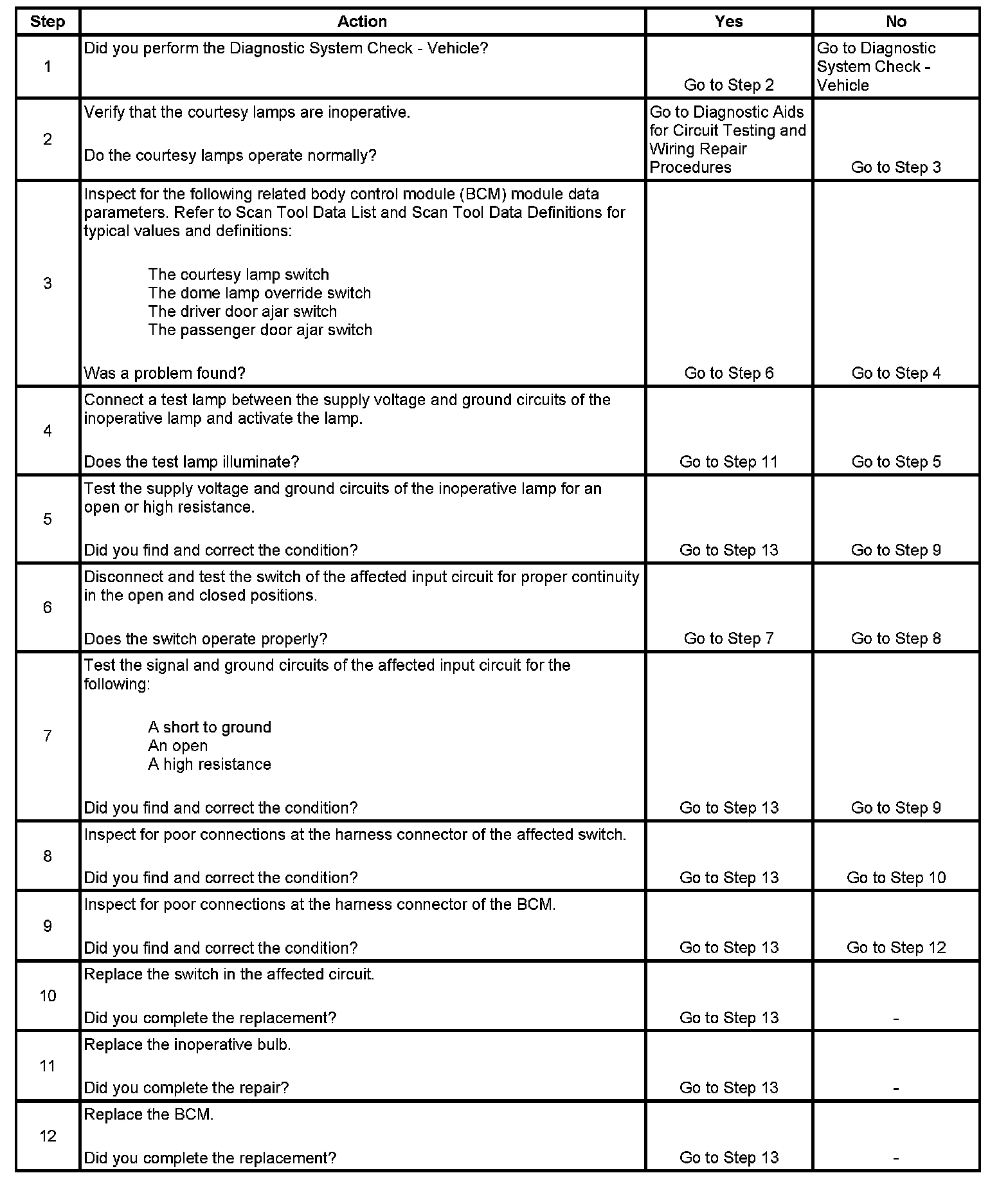

Step 1 - Step 12:

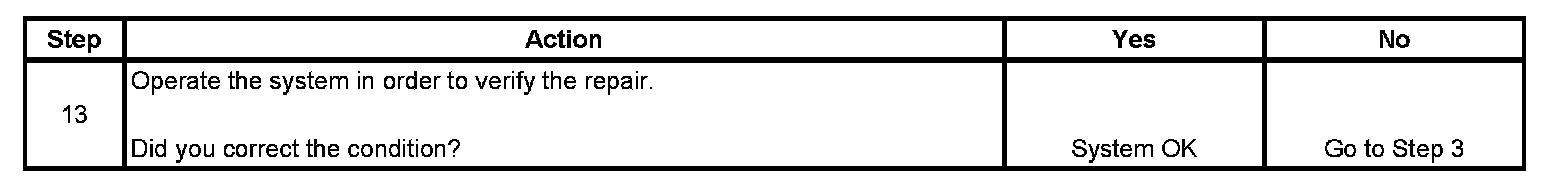

Step 13:
