Lighting and Horns: Locations

Lighting Systems Component Views

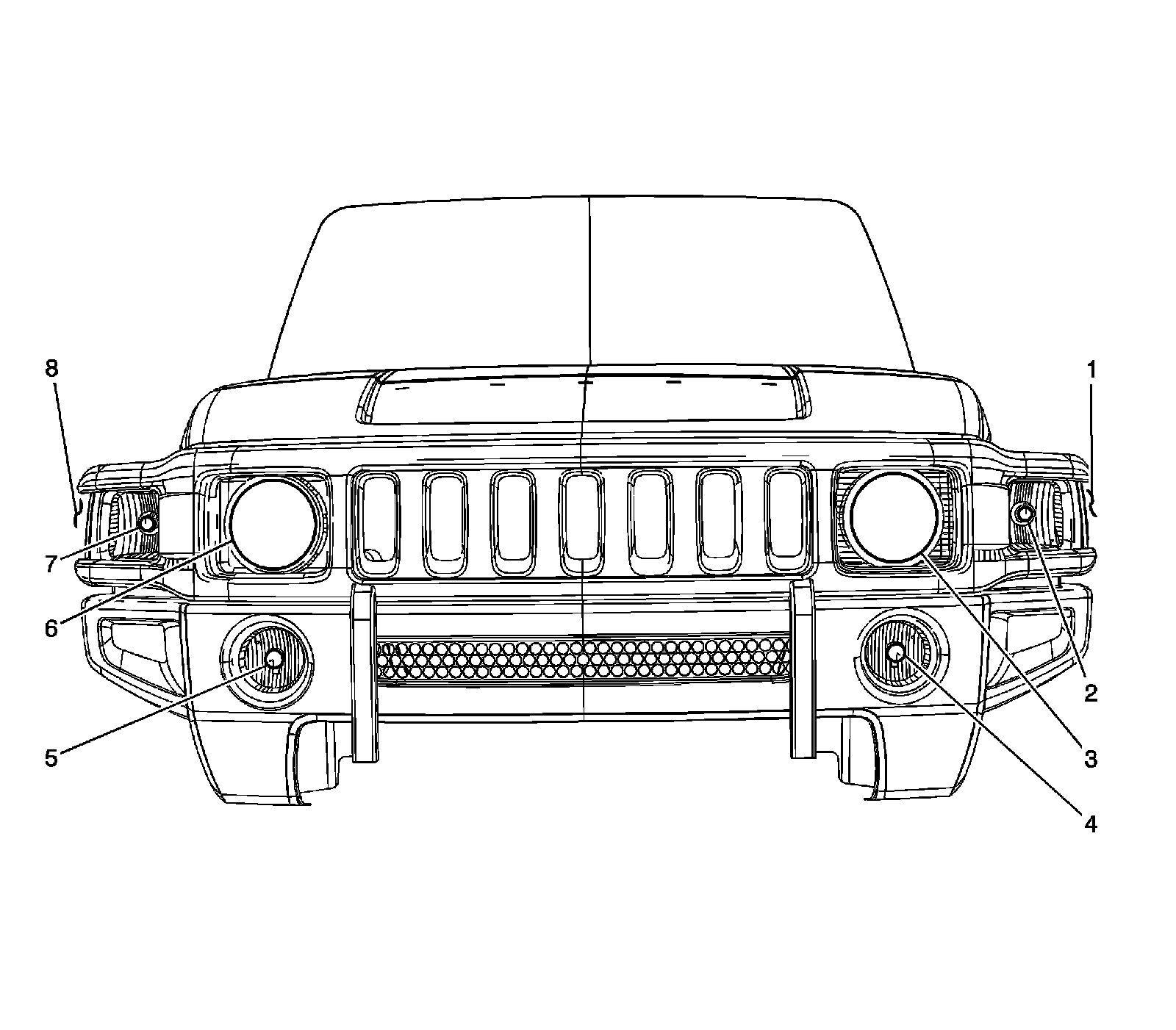

Front Exterior Lights




1 - Marker Lamp - LF
2 - Park/Turn Signal Lamp - LF
3 - Headlamp - Left
4 - Fog Lamp - Left
5 - Fog Lamp - Right
6 - Headlamp - Right
7 - Park/Turn Signal Lamp - RF
8 - Marker Lamp - RF

I/P Harness Components

I/P Harness Components:

1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Hazard Switch
4 - Accessory Switch
5 - Radio
6 - Ambient Light Sensor
7 - Inflatable Restraint I/P Module
8 - HVAC Control Module
9 - Auxiliary Power Outlets - Front
10 - Rear Window Wiper/Washer Switch
11 - Inflatable Restraint Steering Wheel Module
12 - Turn Signal/Multifunction Switch

I/P Harness Components




1 - Instrument Panel Cluster (IPC)
2 - Accessory Switch
3 - Hazard Switch
4 - Inflatable Restraint I/P Module
5 - Ambient Light Sensor
6 - Antenna - Base
7 - Transfer Case Shift Control Module
8 - Digital Radio Receiver
9 - Courtesy Lamp Footwell - Right
10 - Body Control Module (BCM)
11 - Auxiliary Power Outlets - Front
12 - Vehicle Communication Interface Module (VCIM)
13 - Courtesy Lamp Footwell - Left
14 - Data Link Connector (DLC)

Lower Left Side of I/P

Lower Left Side of I/P:

1 - Clutch Start Switch (MA5)
2 - Accelerator Pedal Position (APP) Sensor
3 - Steering Wheel Position Sensor (JL4)
4 - TCC Brake/Cruise Release Switch
5 - Stop Lamp Switch
6 - Park Brake Switch
7 - Clutch Release Switch (MA5)

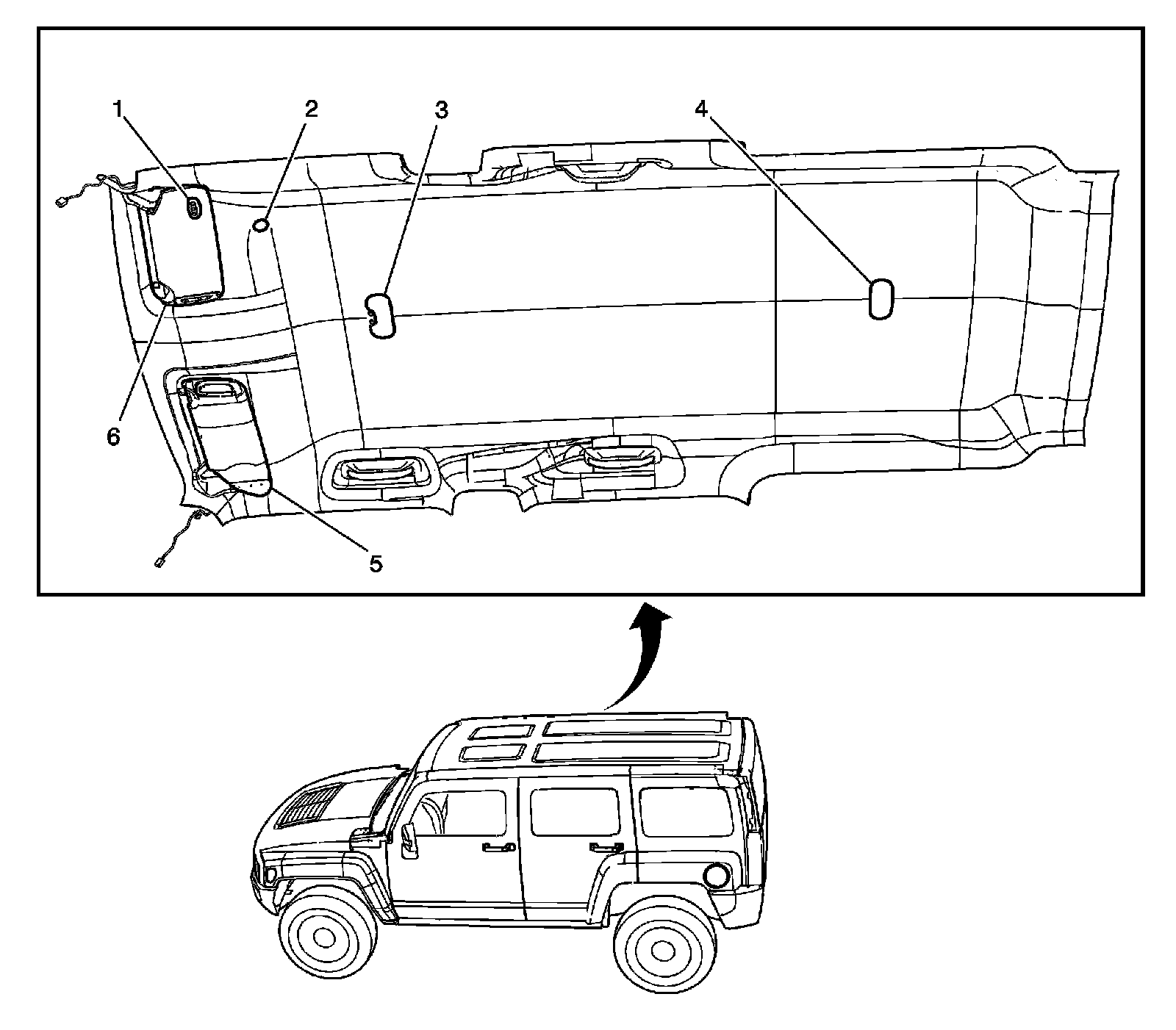

Headliner Components




1 - Garage Door Opener
2 - Cellular Microphone
3 - Dome/Reading Lamps
4 - Dome Lamp
5 - Sunshade - Right (YC3)
6 - Sunshade - Left (YC3)

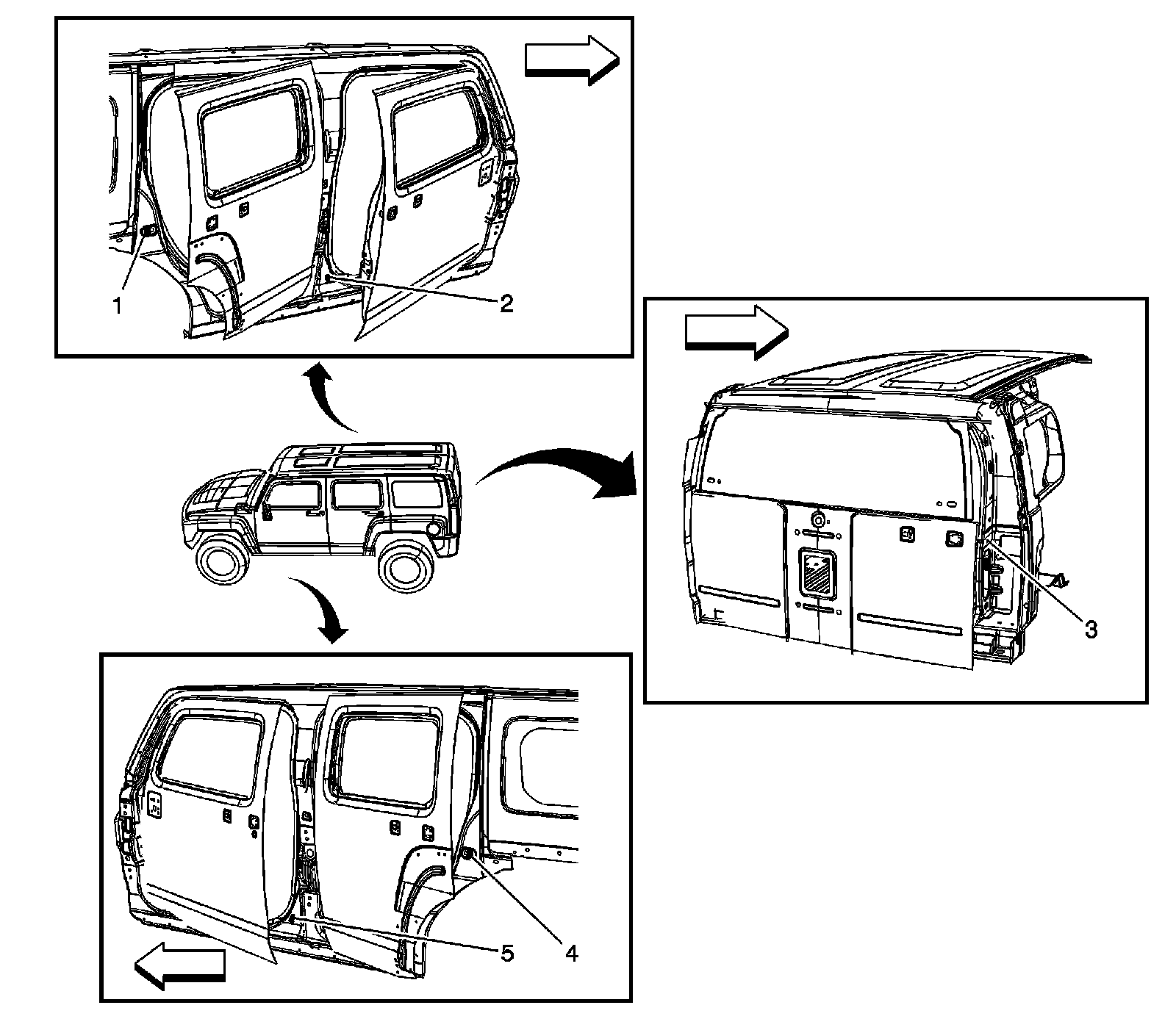

Door Ajar Switches




1 - Door Ajar Switch - RR
2 - Door Ajar Switch - Passenger
3 - Endgate Ajar Switch
4 - Door Ajar Switch - LR
5 - Door Ajar Switch - Driver

Engine Harness - Rear (MA5)

Engine Harness - Rear (MA5):

1 - Transmission Case
2 - Backup Lamp Switch
3 - Heated Oxygen Sensor (HO2S) 2
4 - Transfer Case Encoder Motor Connector
5 - Vehicle Speed Sensor (VSS) Connector

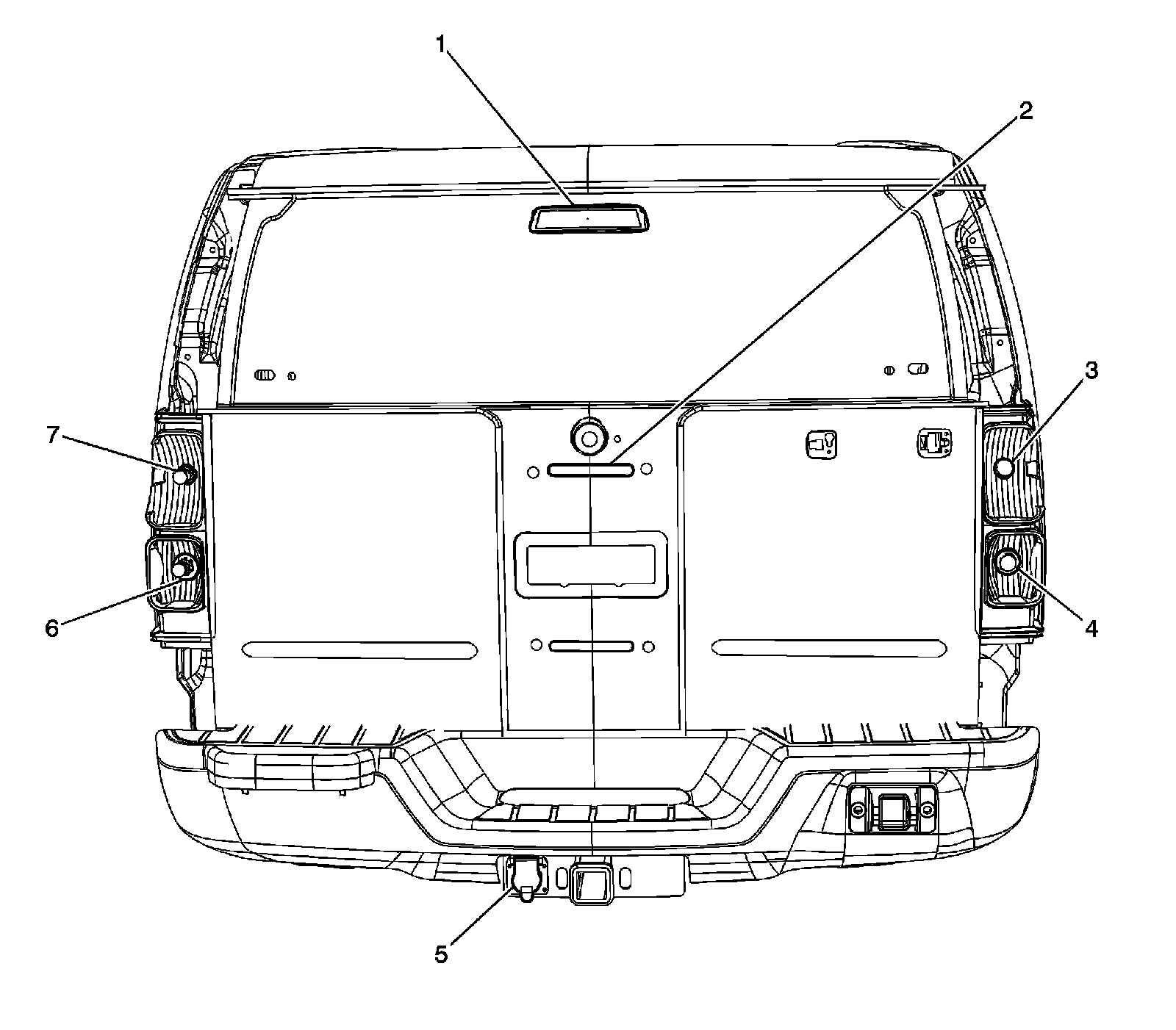

Rear Exterior Lights




1 - Center High Mounted Stop Lamp (CHMSL)
2 - License Lamp
3 - Tail/Stop and Turn Signal Lamp - Right
4 - Backup Lamp - Right
5 - Trailer Connector
6 - Backup Lamp - Left
7 - Tail/Stop and Turn Signal Lamp - Left
