Clearance Lamp: Diagrams

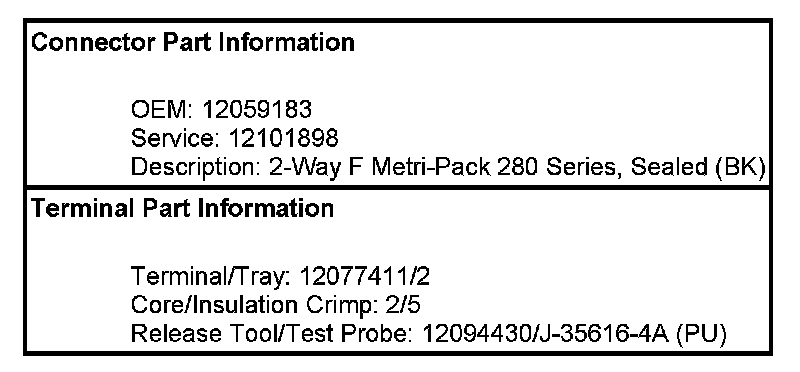

Lighting Systems Connector End Views

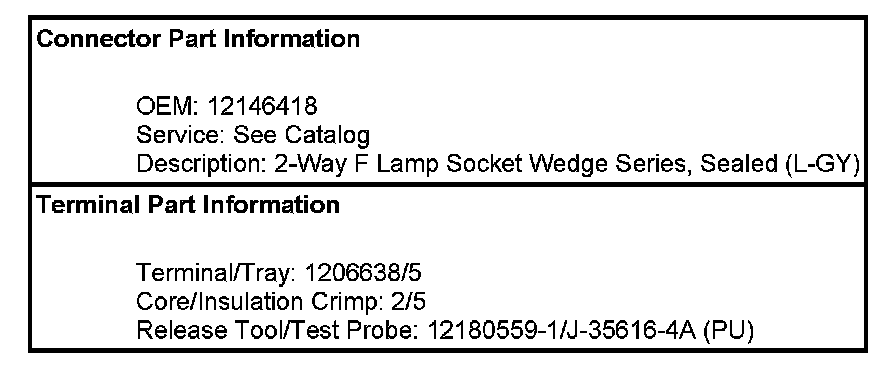

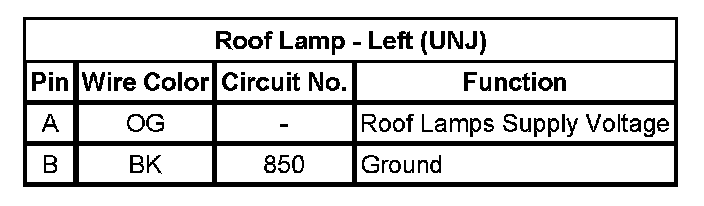

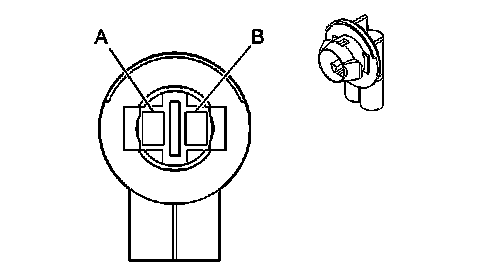

Roof Lamp - Left (UNJ)

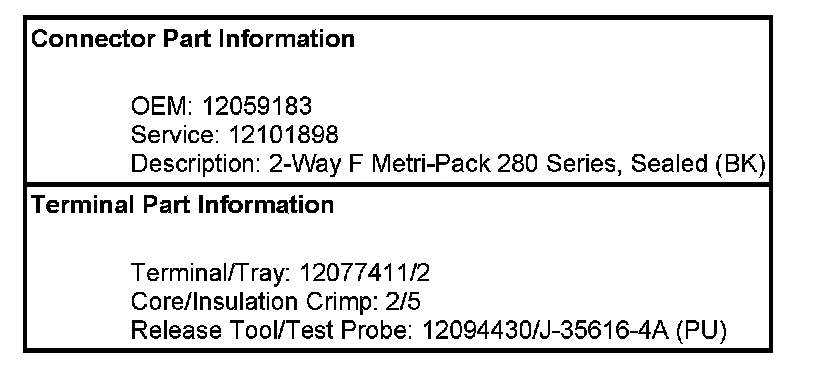

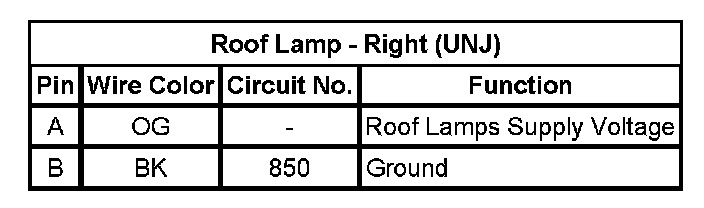

Roof Lamp - Right (UNJ)

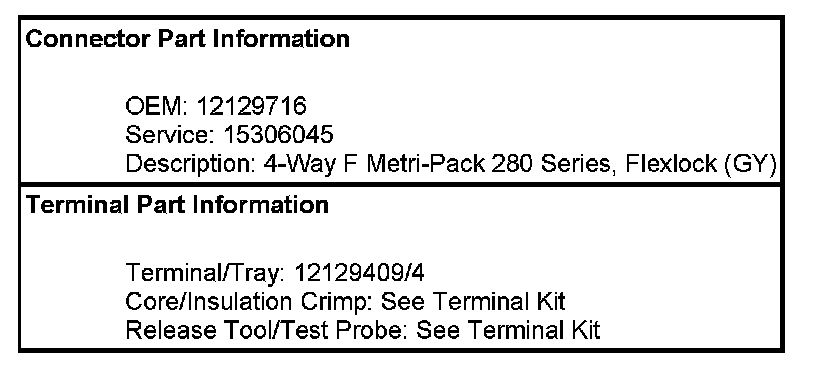

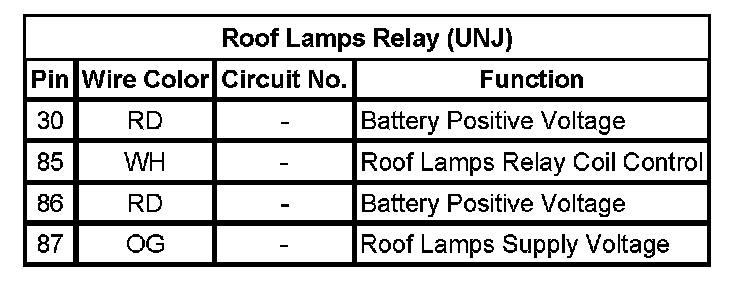

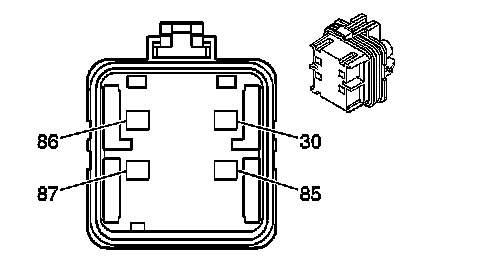

Roof Lamps Relay (UNJ)

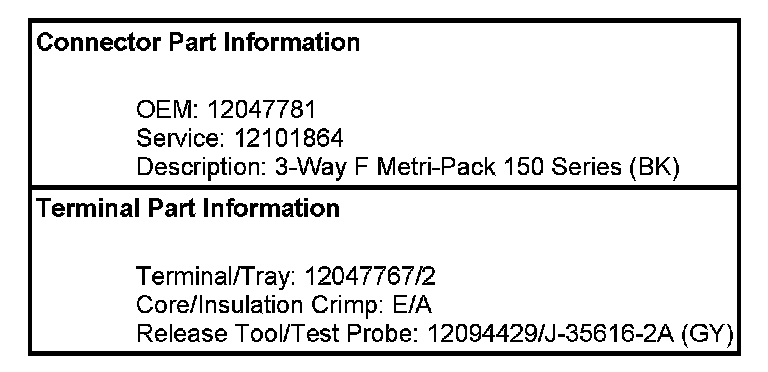

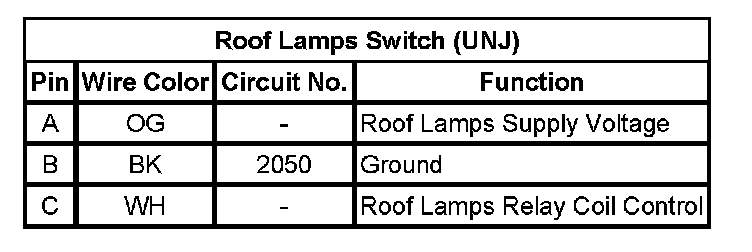

Roof Lamps Switch (UNJ)

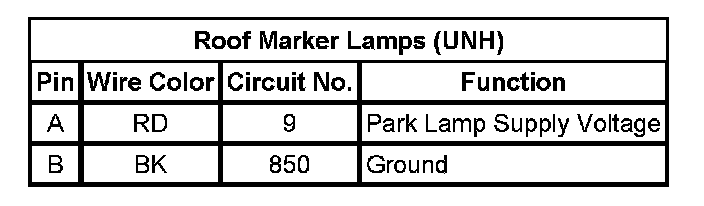

Roof Marker Lamps (UNH)
