Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Heating, Ventilation, and Air Conditioning

Heating, Ventilation, and Air Conditioning

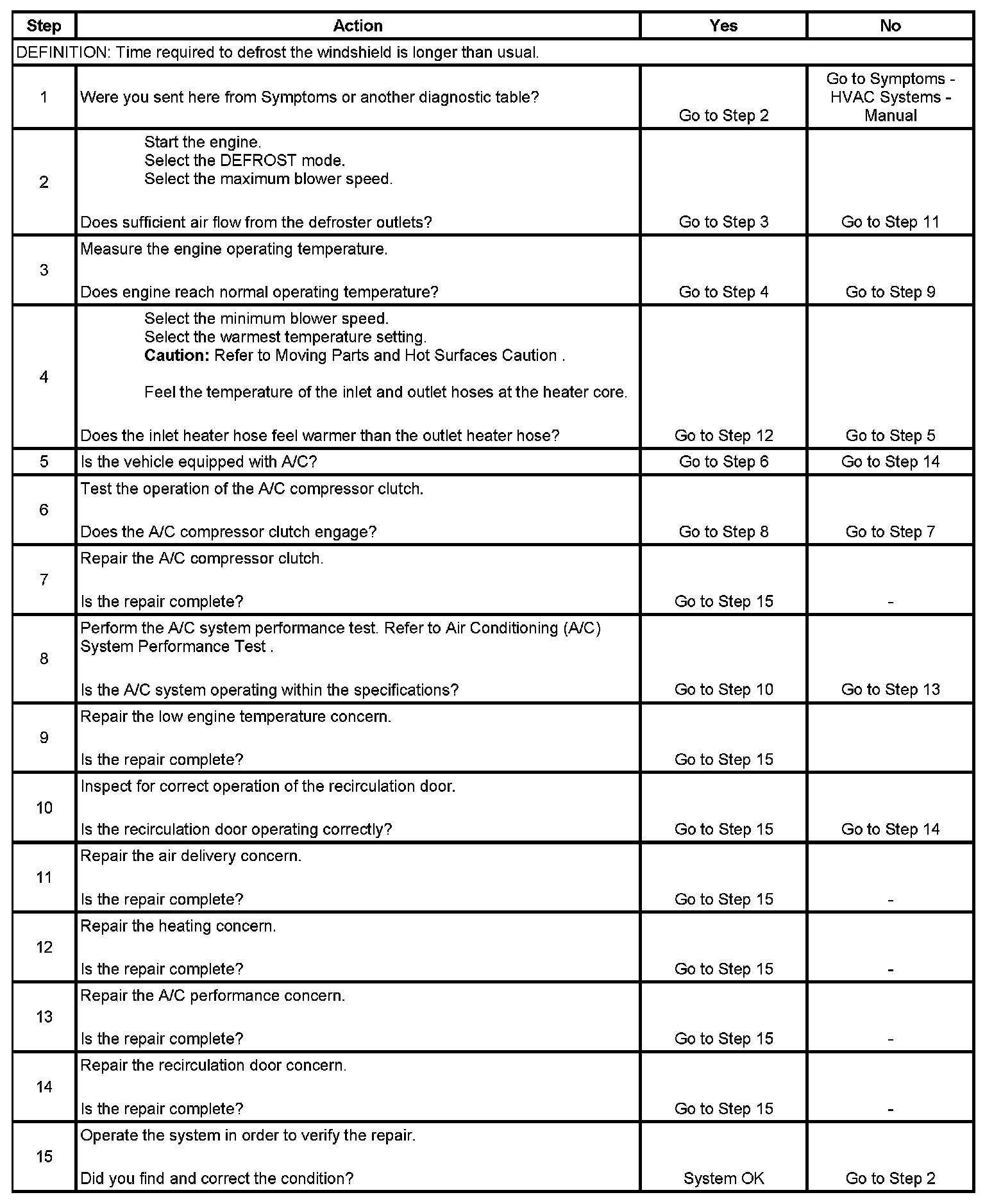

Defrosting Insufficient

Step 1 - Step 15:
