Compressor Clutch Hub: Service and Repair

Compressor Clutch Plate/Hub Assembly Replacement

Removal Procedure

1. Remove the skid plate.
2. Remove the engine belt.

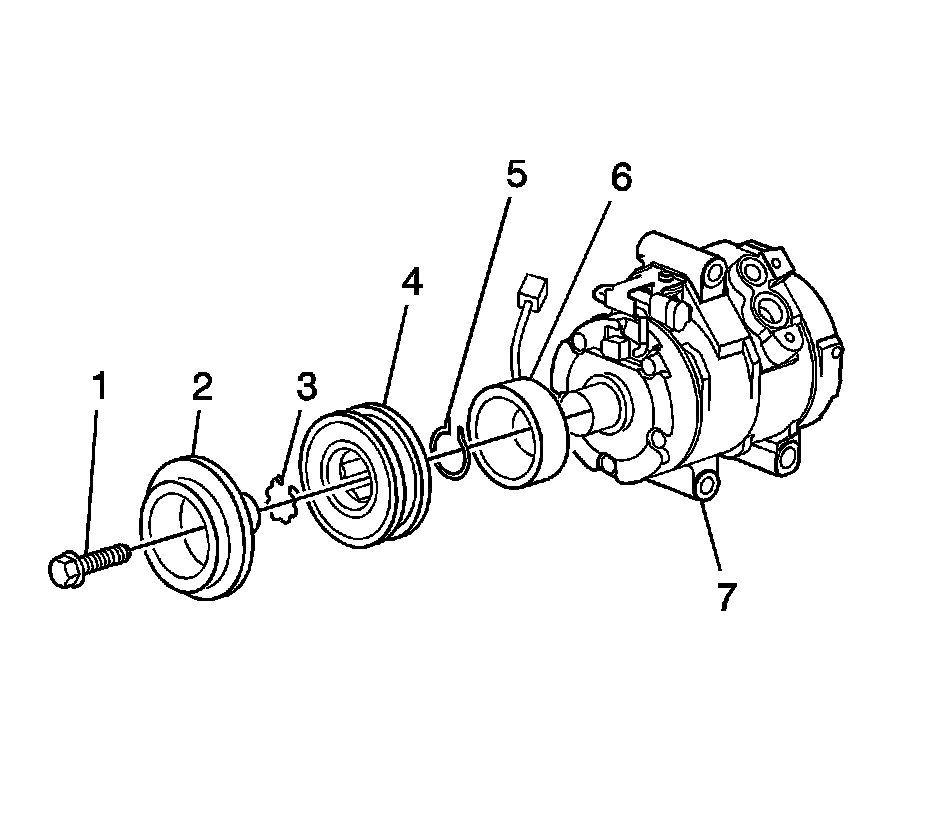

3. Remove the clutch plate retaining bolt (1).
4. Remove the cooling fan.
5. Remove the clutch plate assembly (2).
6. Remove the clutch hub/bearing snap ring (3).
7. Remove the clutch hub/bearing assembly (4).

Installation Procedure




1. Install the clutch hub/bearing assembly (4).
2. Install the clutch hub/bearing snap ring (3).
3. Install the clutch plate assembly (2).

Notice: Refer to Fastener Notice.

4. Install the clutch plate retaining bolt (1).

Tighten the bolt to 18 N.m (13 lb ft).

5. Install the cooling fan.
6. Install the engine belt.
7. Install the skid plate.
