Exhaust Pipe Gasket: Service and Repair

Exhaust Seal Replacement

Removal Procedure

Caution: Refer to Exhaust Service Caution.

Caution: Refer to Protective Goggles and Glove Caution.

1. Raise and support the vehicle.

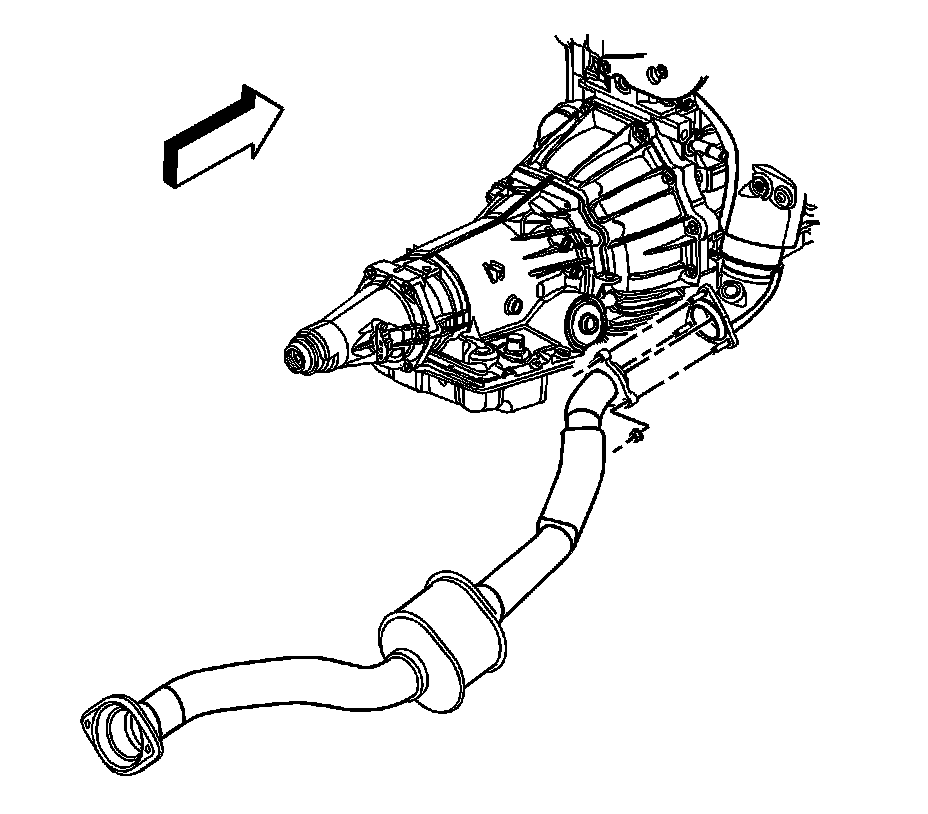

2. Remove the nuts attaching the catalytic converter to the exhaust manifold.
3. Position the exhaust system rearward, enough to allow clearance to remove the seal.

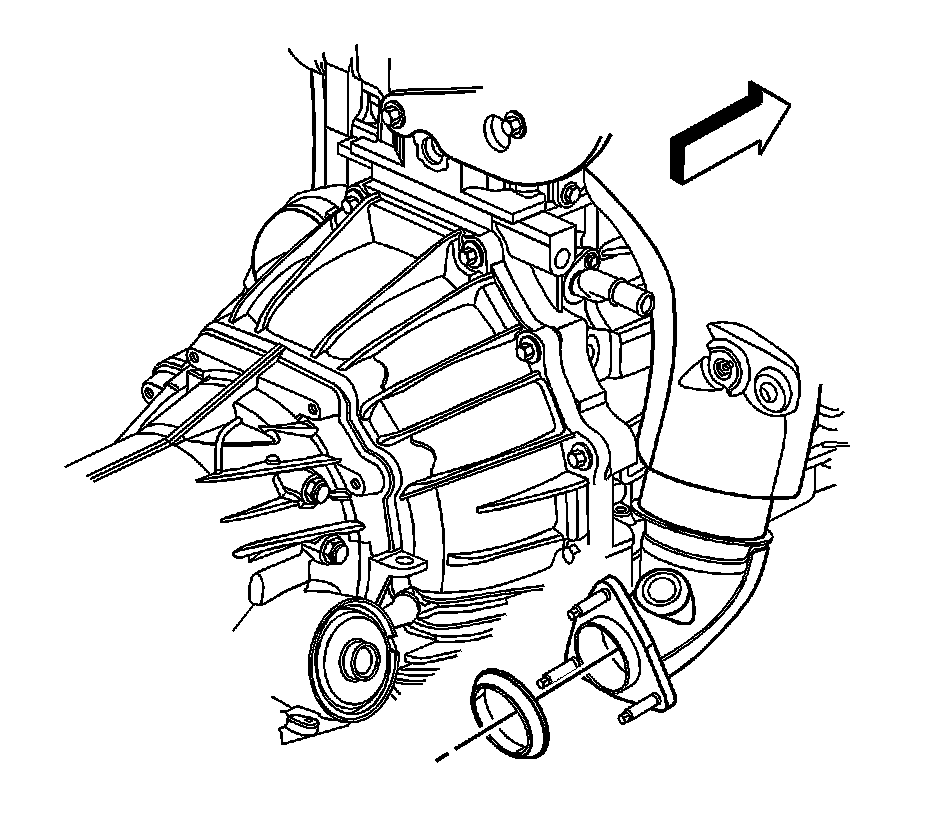

4. Remove and discard the exhaust manifold seal.

Installation Procedure




1. Install a NEW seal to the exhaust manifold flange.




2. Position the catalytic converter to the exhaust manifold.

Notice: Refer to Fastener Notice.

3. Install the nuts attaching the catalytic converter to the exhaust manifold.

Tighten the nuts to 50 N.m (37 lb ft).

4. Lower the vehicle.
