Exhaust Pipe Heat Shield Replacement

Exhaust Pipe Heat Shield Replacement

Removal Procedure

Caution: Refer to Exhaust Service Caution.

Caution: Refer to Protective Goggles and Glove Caution.




1. Raise and support the vehicle.

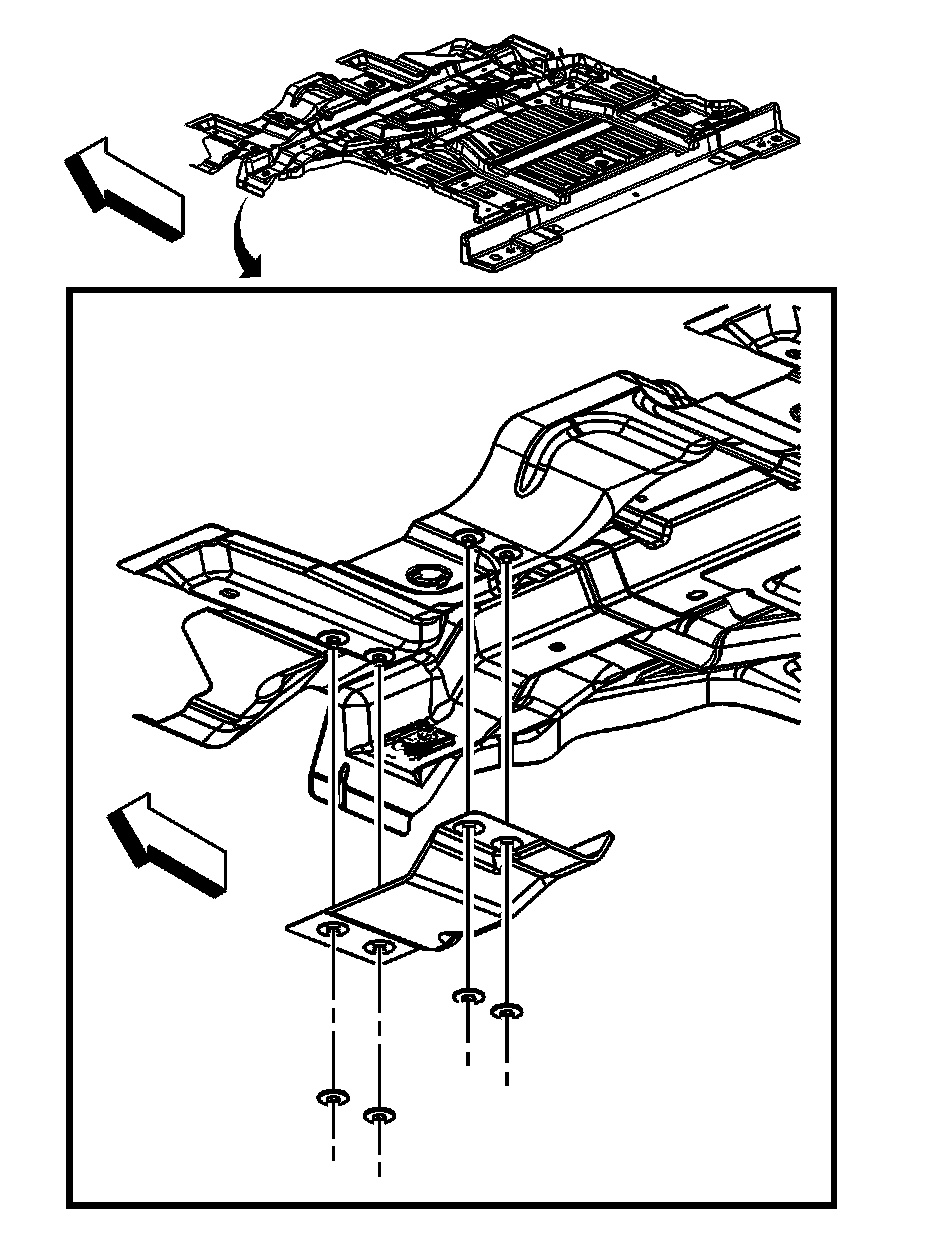

2. Remove the nuts securing the heat shield to the floor panel.
3. Remove the exhaust pipe heat shield.

Installation Procedure




1. Position the exhaust pipe heat shield to the floor panel studs.

Notice: Refer to Fastener Notice.

2. Install the nuts securing the heat shield to the floor panel.

Tighten the nuts to 9 N.m (80 lb in).

3. Lower the vehicle.
