Air Cleaner Outlet Duct Replacement

Air Cleaner Outlet Duct Replacement

Removal Procedure




1. Loosen the air cleaner outlet duct clamps.

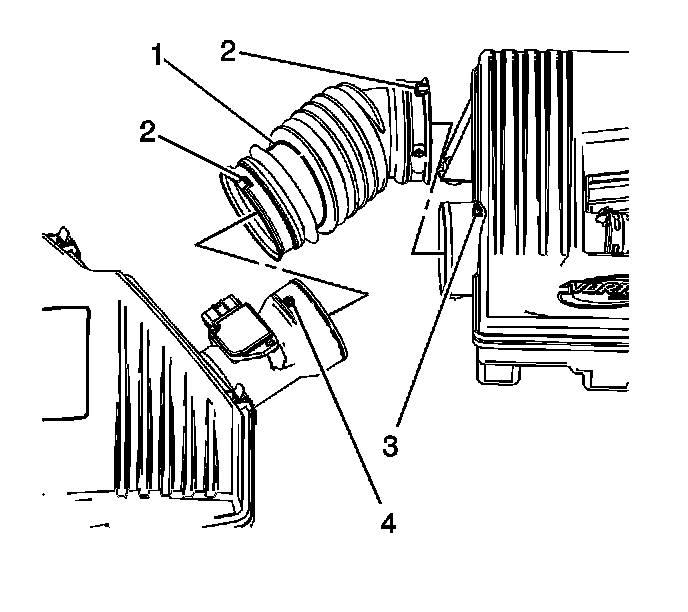

2. Remove the air cleaner outlet duct (1) from the following:

* The air cleaner assembly
* The air cleaner resonator

Installation Procedure






Important: Ensure the notches (2) on the air cleaner outlet duct (1) are aligned with the following:

* The air cleaner assembly tang (4)

* The air cleaner resonator tang (3)

Install the air cleaner outlet duct to the following:

* The air cleaner assembly
* The air cleaner resonator

Notice: Refer to Fastener Notice.

1. Tighten the air cleaner outlet duct clamps.

Tighten the air cleaner outlet duct clamps to 6 N.m (53 lb in).
