Engine Lift Bracket Replacement

Engine Lift Bracket Replacement

Removal Procedure




1. Remove the drive belt.

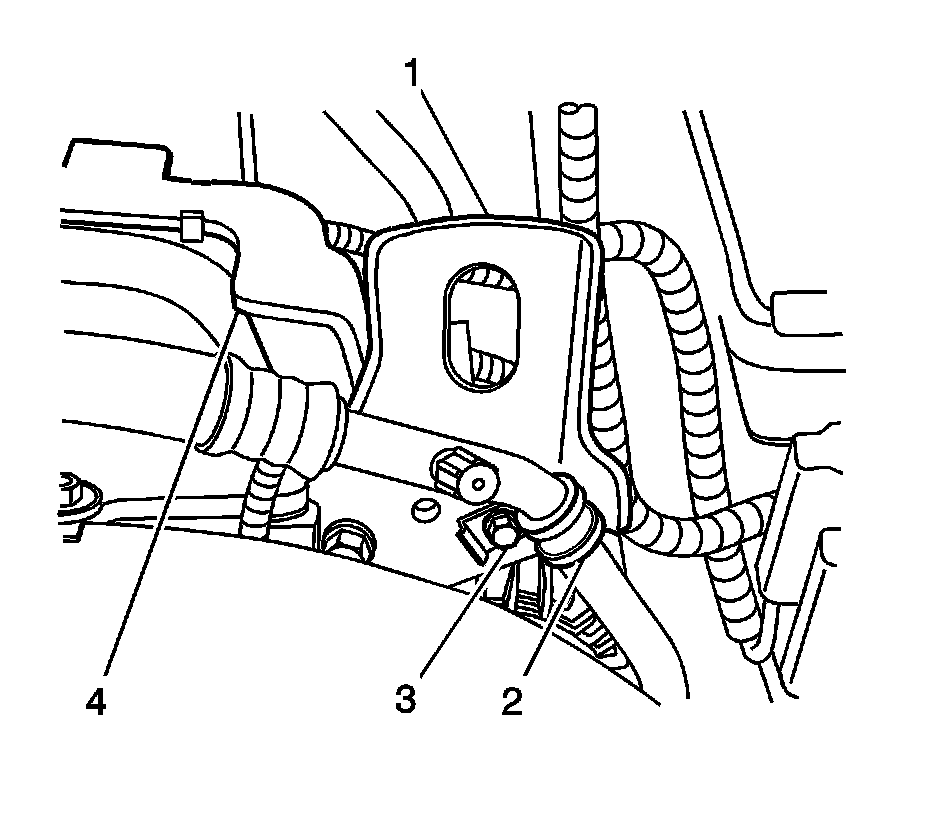

2. Remove the bolt (3) securing the A/C compressor hose/pipe bracket (2) to the engine lift bracket (1).
3. Carefully disengage the engine wiring harness conduit from the engine lift bracket (1).




4. Remove the 3 generator bolts and reposition the generator.

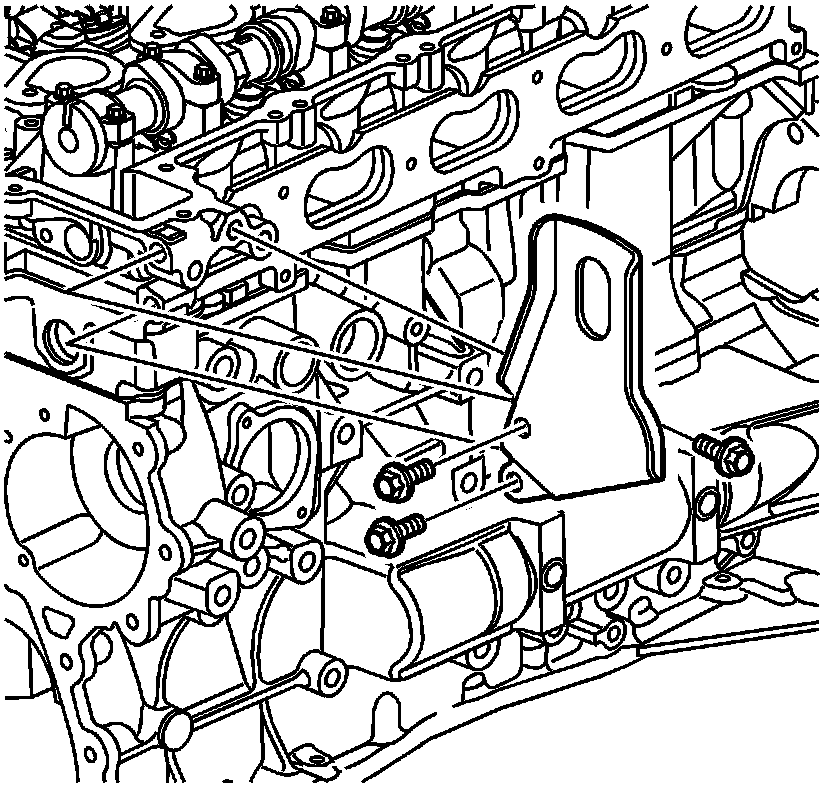

5. Remove the engine lift bracket bolts.
6. Remove the engine lift bracket.

Installation Procedure




1. Position the engine lift bracket.

Notice: Refer to Fastener Notice.

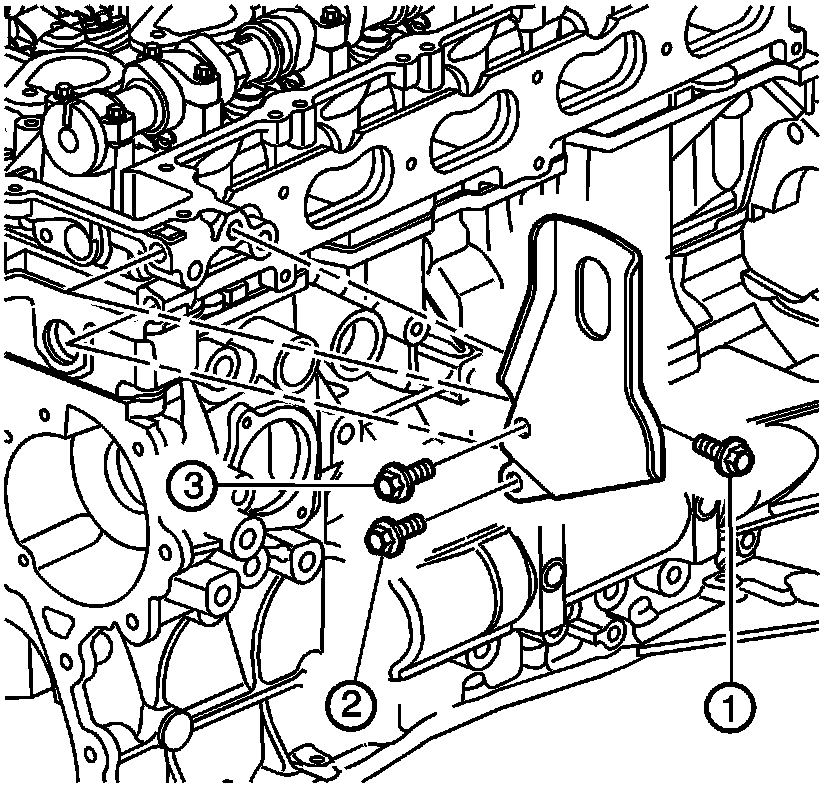

2. Install the engine lift bracket bolts.
1. Tighten the bolts a first pass in sequence to 5 N.m (44 lb in).
2. Tighten the bolts a final pass in sequence to 50 N.m (37 lb ft).




3. Position the generator to the engine.
4. Install the 3 generator bolts.

Tighten the bolts in sequence to 50 N.m (37 lb ft).




5. Engage the engine wiring harness conduit to the engine lift bracket (1).
6. Install the bolt (3) securing the A/C compressor hose/pipe bracket (2) to the engine lift bracket (1).

Tighten the bolt to 9 N.m (80 lb in).

7. Install the drive belt.
