97. Oil Level Indicator and Tube Installation

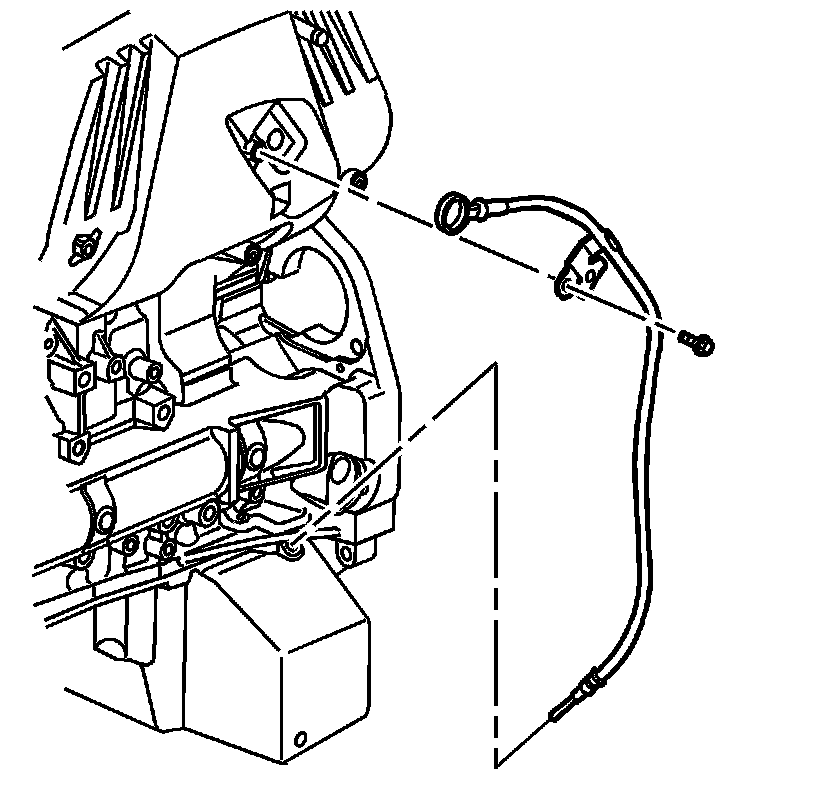

Oil Level Indicator and Tube Installation




1. Install the oil level indicator tube.
2. Add sealant GM P/N 12346004 (Canadian P/N 10953480) to the oil level indicator tube stud threads.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the oil level indicator tube stud.

Tighten the oil level indicator tube stud to 10 N.m (89 lb in).

4. Install the oil level indicator.
