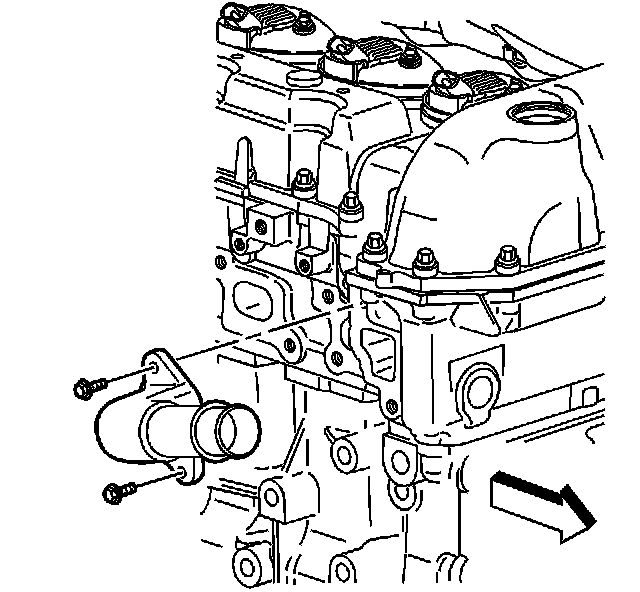

94. Water Outlet Installation

Water Outlet Installation




1. Install the water outlet.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the water outlet bolts.

Tighten the water outlet bolts to 10 N.m (89 lb in).
