92. Heater Inlet Pipe Installation

Heater Inlet Pipe Installation

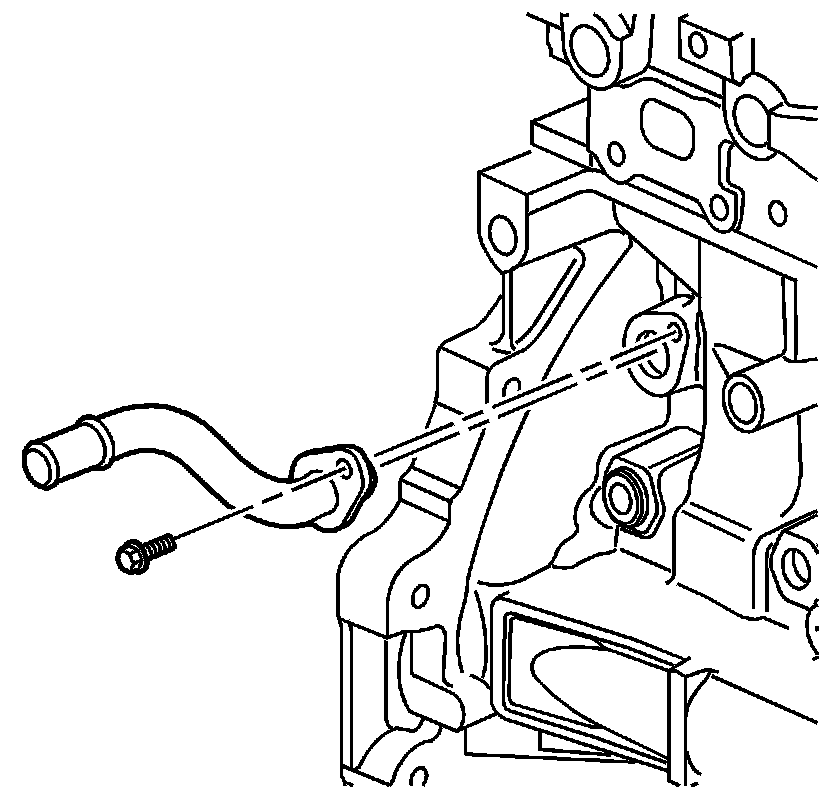

1. Install the heater inlet pipe.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the heater inlet pipe bolt.

Tighten the heater inlet pipe bolt to 10 N.m (89 lb in).
