91. Engine Coolant Thermostat Housing Installation



Engine Coolant Thermostat Housing Installation

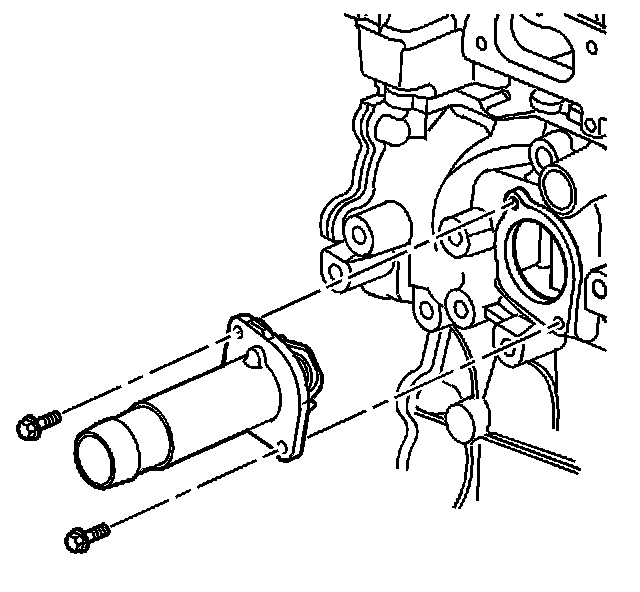

1. Install the thermostat housing.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the thermostat housing bolts.

Tighten the thermostat housing bolts to 10 N.m (89 lb in).
