46. Piston and Connecting Rod Disassemble

Piston and Connecting Rod Disassemble

Tools Required

EN-46745 Piston Pin Retainer Remover and Installer





Caution: Handle the piston carefully. Worn piston rings are sharp and may cause bodily injury.

Important: Do not reuse the piston rings.

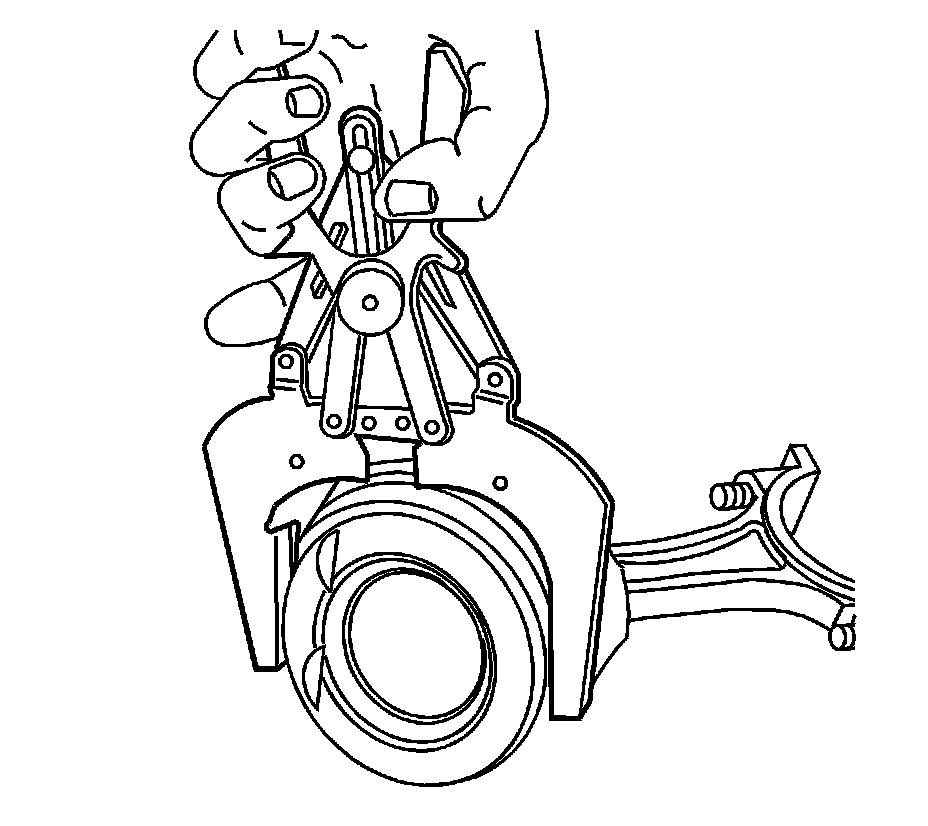

1. Remove the piston rings using a piston ring expander.





Important: Two retainers hold the piston pins in place. Reuse the retainers if they are not damaged during removal.

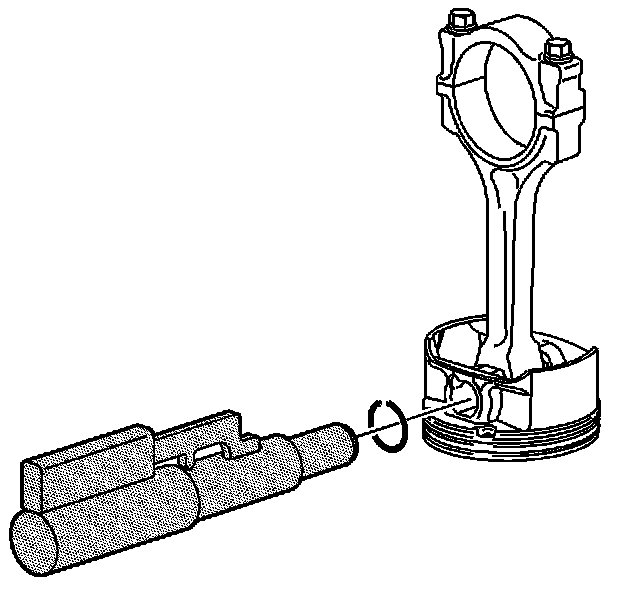

2. Remove the piston pin retainers using EN-46745.

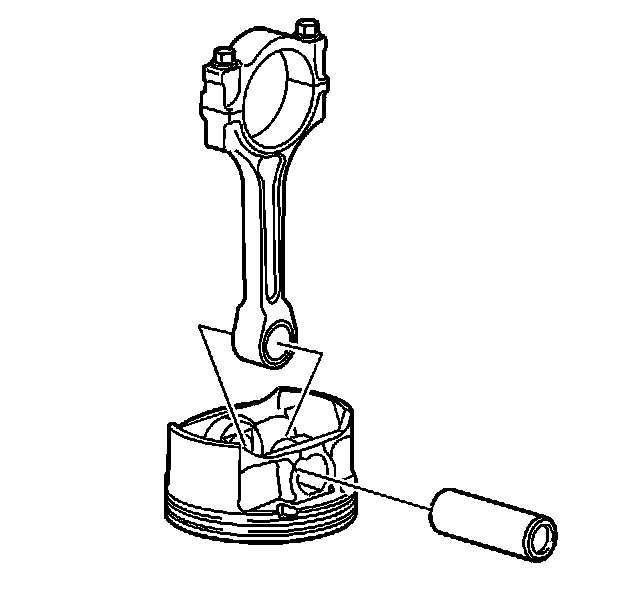

3. Remove the piston pin.
