100. Drive Belt Idler Pulley Installation

Drive Belt Idler Pulley Installation

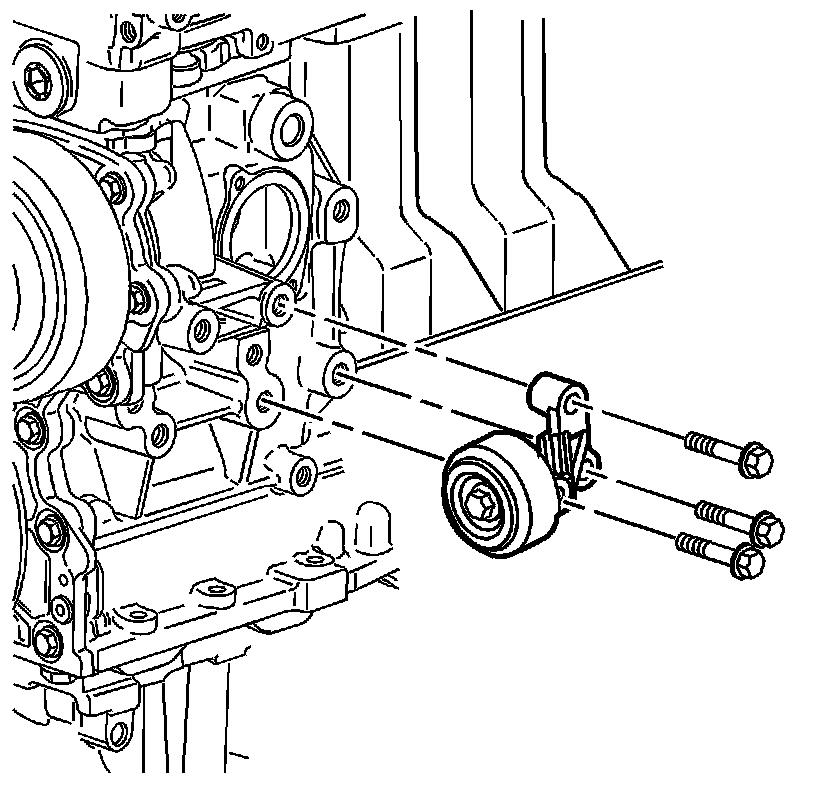

1. Install the drive belt idler pulley.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt idler pulley bolts.

Tighten the drive belt idler pulley bolts to 50 N.m (37 lb ft).
