Oil Pump: Service and Repair

Oil Pump Replacement

Removal Procedure

1. Remove the engine front cover.

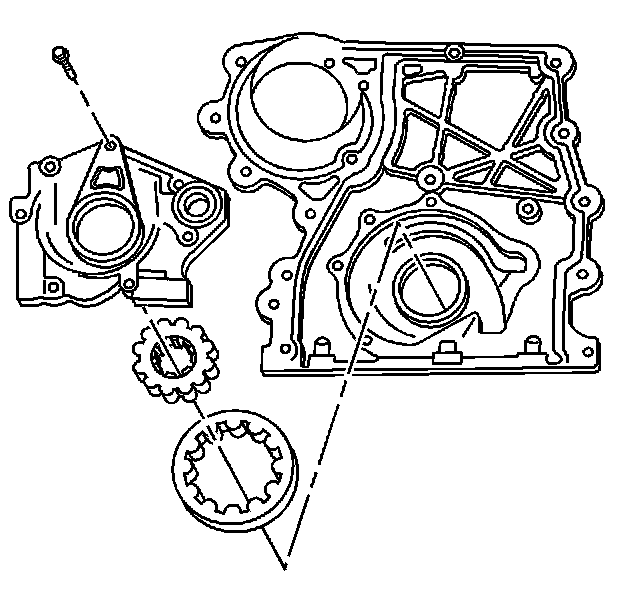

2. Remove the oil pump cover bolts.
3. Remove the oil pump cover.
4. Mark the inner and the outer gears in relation to the oil pump housing.
5. Remove the inner and the outer oil pump gears.
6. Remove the oil pump pressure relief valve plug.
7. Remove the oil pump pressure relief valve and the spring.
8. Clean and inspect the oil pump.

Installation Procedure




1. Install the oil pump pressure relief valve and the spring.

Notice: Refer to Component Fastener Tightening Notice.

2. Install the oil pump pressure relief valve plug.

Tighten the plug to 14 N.m (124 lb in).

3. Install the oil pump outer and inner gears as removed.
4. Install the oil pump cover.

Notice: Refer to Fastener Notice.

5. Install the oil pump cover bolts.

Tighten the bolts to 10 N.m (89 lb in).

6. Install the engine front cover.
