Oil Pick Up/Strainer: Service and Repair

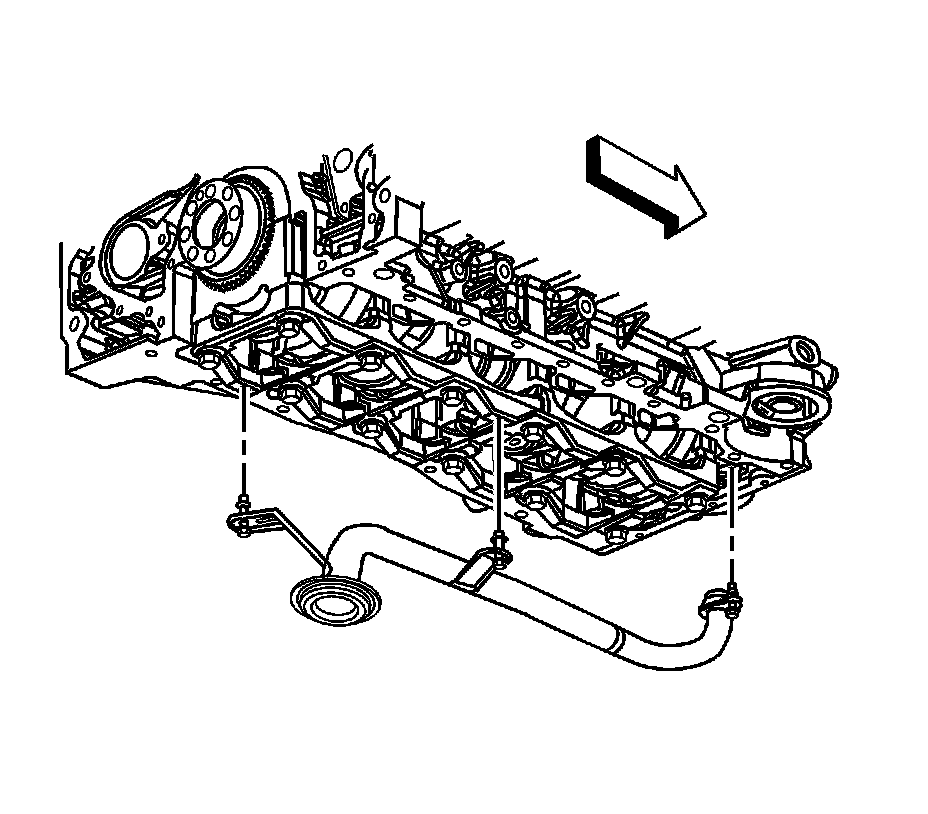

Oil Pump Suction Pipe and Screen Assembly Replacement

Removal Procedure




1. Remove the oil pan.
2. Remove the oil pump pipe screen brace bolts.
3. Remove the oil pump pipe screen bolt.
4. Remove the oil pump pipe screen from the engine.
5. Remove and discard the oil pump pipe seal.
6. Clean and inspect the oil pump pipe screen.

Installation Procedure




1. Install a NEW oil pump pipe seal onto the oil pump pipe screen assembly.
2. Install the oil pump pipe screen to the engine.
3. Apply sealant to the oil pump pipe bolt threads.

Notice: Refer to Fastener Notice.

4. Install the oil pump pipe screen assembly bolts.

Tighten the bolts to 10 N.m (89 lb in).

5. Install the oil pan.
