Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube Replacement

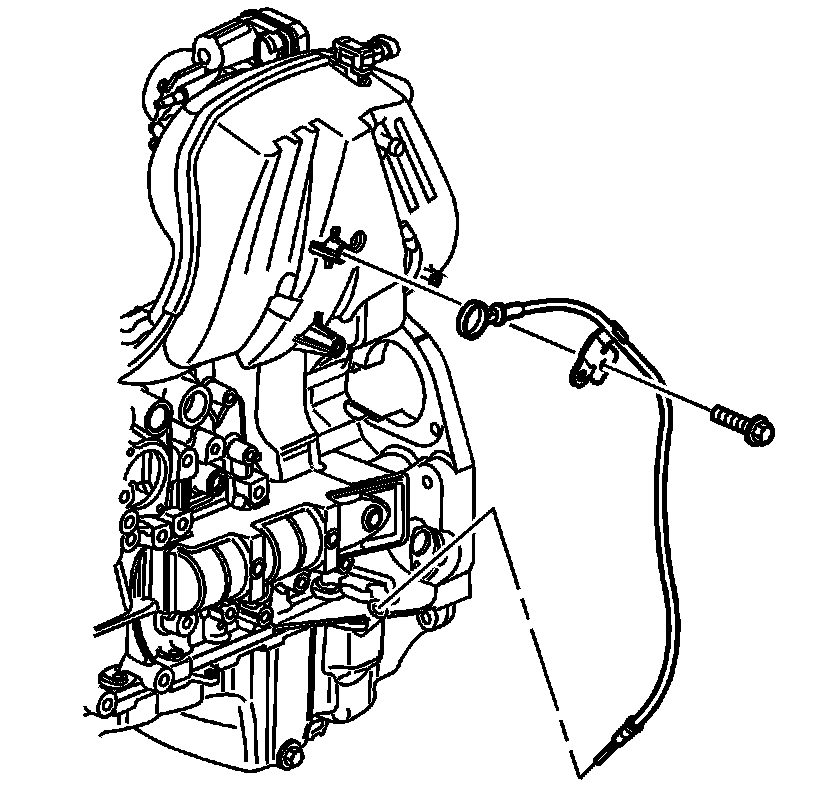

Removal Procedure




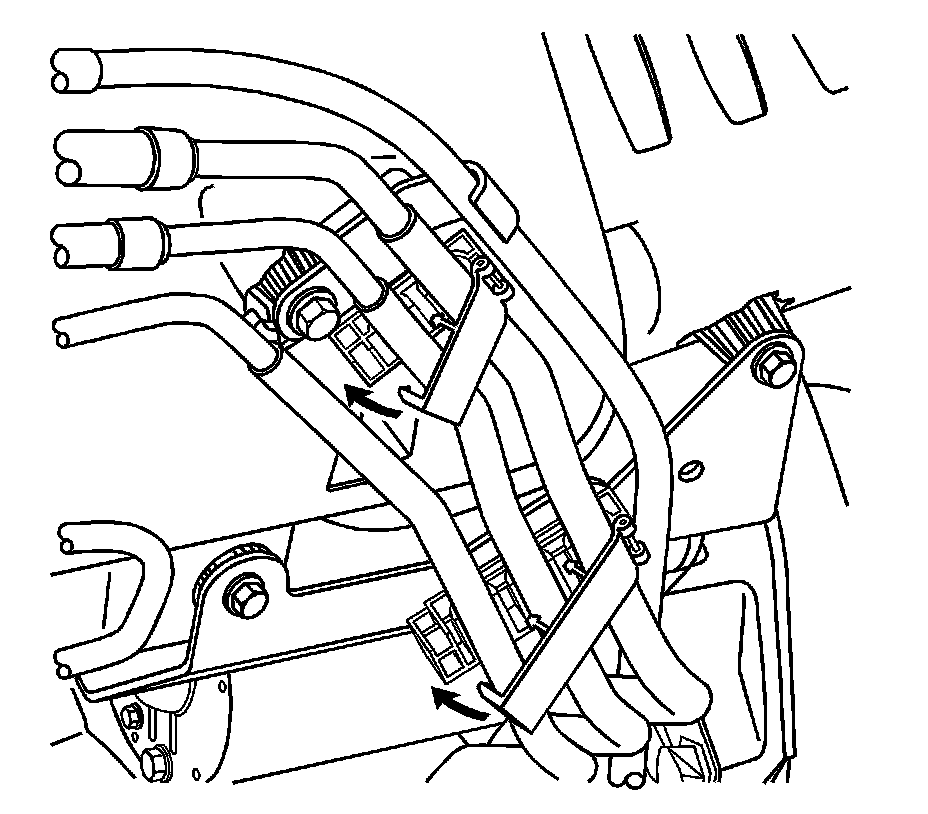

1. Disengage the fuel lines from the retainers at the oil level indicator bracket and intake manifold.




2. Remove the oil level indicator from the tube.
3. Remove the oil level indicator tube bolt.
4. Remove the oil level indicator tube from the engine oil pan.

Installation Procedure




1. Lightly lubricate the O-ring seal with clean engine oil.
2. Install the oil level indicator tube into the engine oil pan.

Notice: Refer to Fastener Notice.

3. Install the oil level indicator tube bolt.

Tighten the bolt to 10 N.m (89 lb in).

4. Install the oil level indicator into the tube.




5. Insert the fuel lines into the retainers at the oil level indicator bracket and intake manifold.
