Engine Mount Replacement - Left

Engine Mount Replacement - Left Side

Removal Procedure

1. Raise and suitably support the vehicle.
2. Remove the left front wheel and tire assembly.
3. Remove the engine shield, if equipped.
4. Remove the lower intermediate steering shaft.
5. Support the engine using a jack stand and a block of wood.




6. Remove the left engine mount-to-frame bracket through bolt.
7. Loosen the right side through bolt.
8. Raise the engine using the jack stand; the engine will tilt to one side.




9. Remove the engine mount bolts.
10. Remove the engine mount. You will need to articulate the mount in order to remove the mount.

Installation Procedure

1. Install the engine mount. You will need to articulate the mount in order to install the mount.

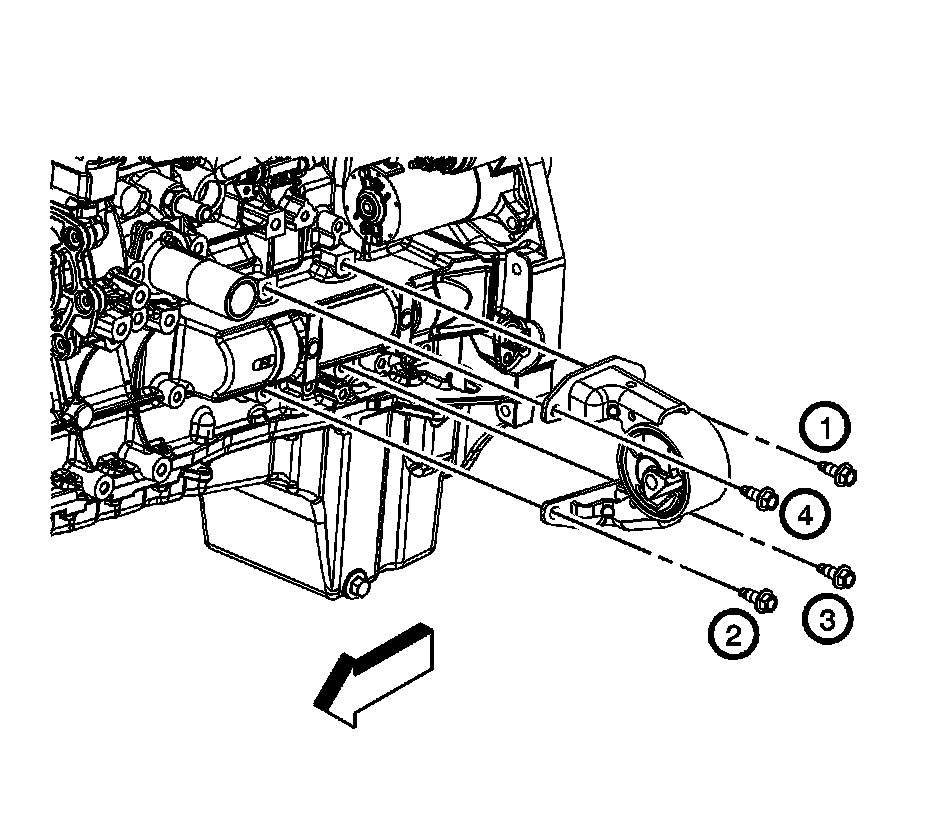

2. Install the engine mount bolts until snug, following the installation sequence.

Notice: Refer to Fastener Notice.

3. Tighten the bolts.

Tighten the bolts to 50 N.m (37 lb ft).
Lower the engine.




4. Install the left engine mount-to-frame bracket through bolt.

Tighten both of the engine mount-to-frame bracket bolts to 85 N.m (63 lb ft).

5. Remove the jack stand.
6. Install the lower intermediate steering shaft.
7. Install the engine shield, if equipped.
8. Install the wheel and tire assembly.
9. Lower the vehicle.
