Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Loss of Coolant

Loss of Coolant



Loss of Coolant

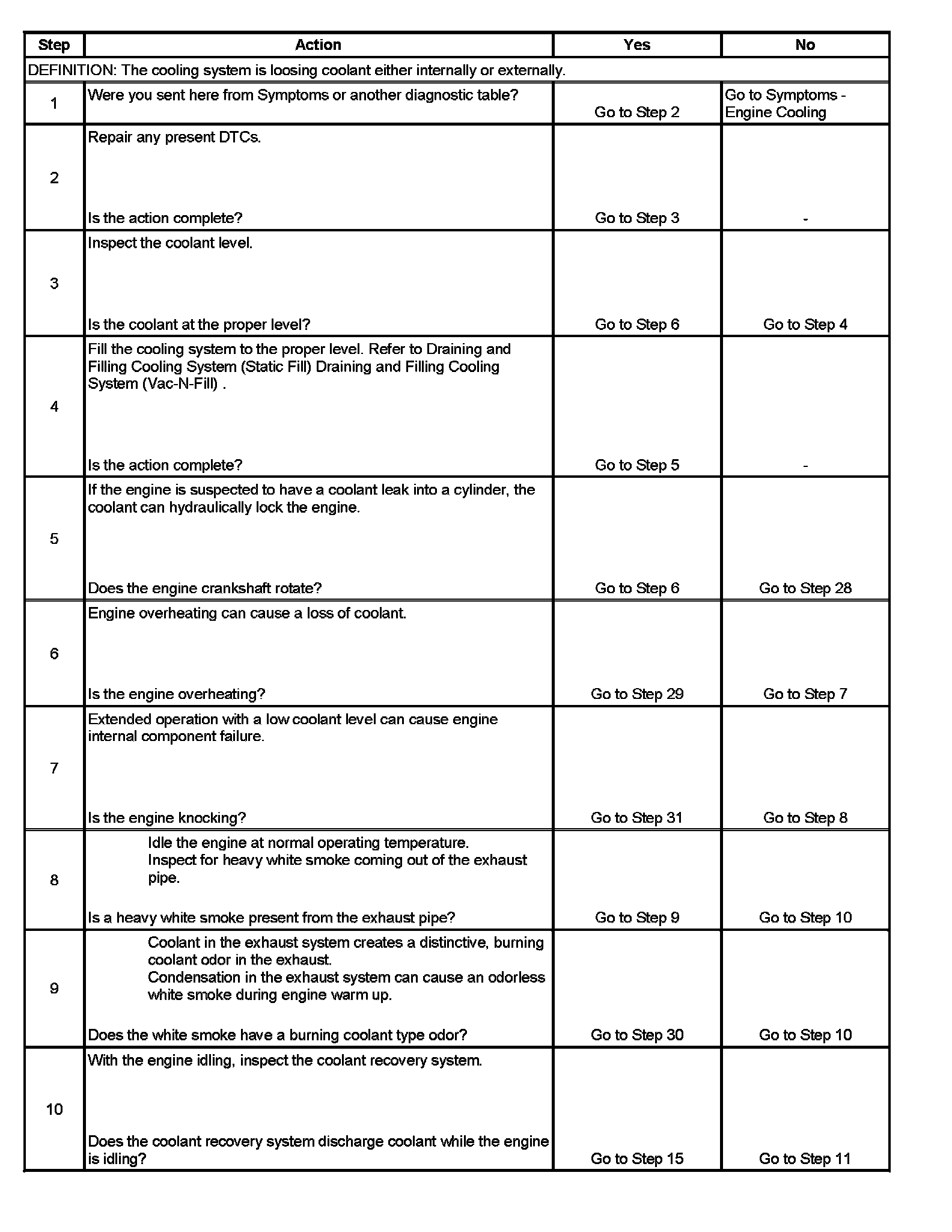

Step 1 - Step 10:

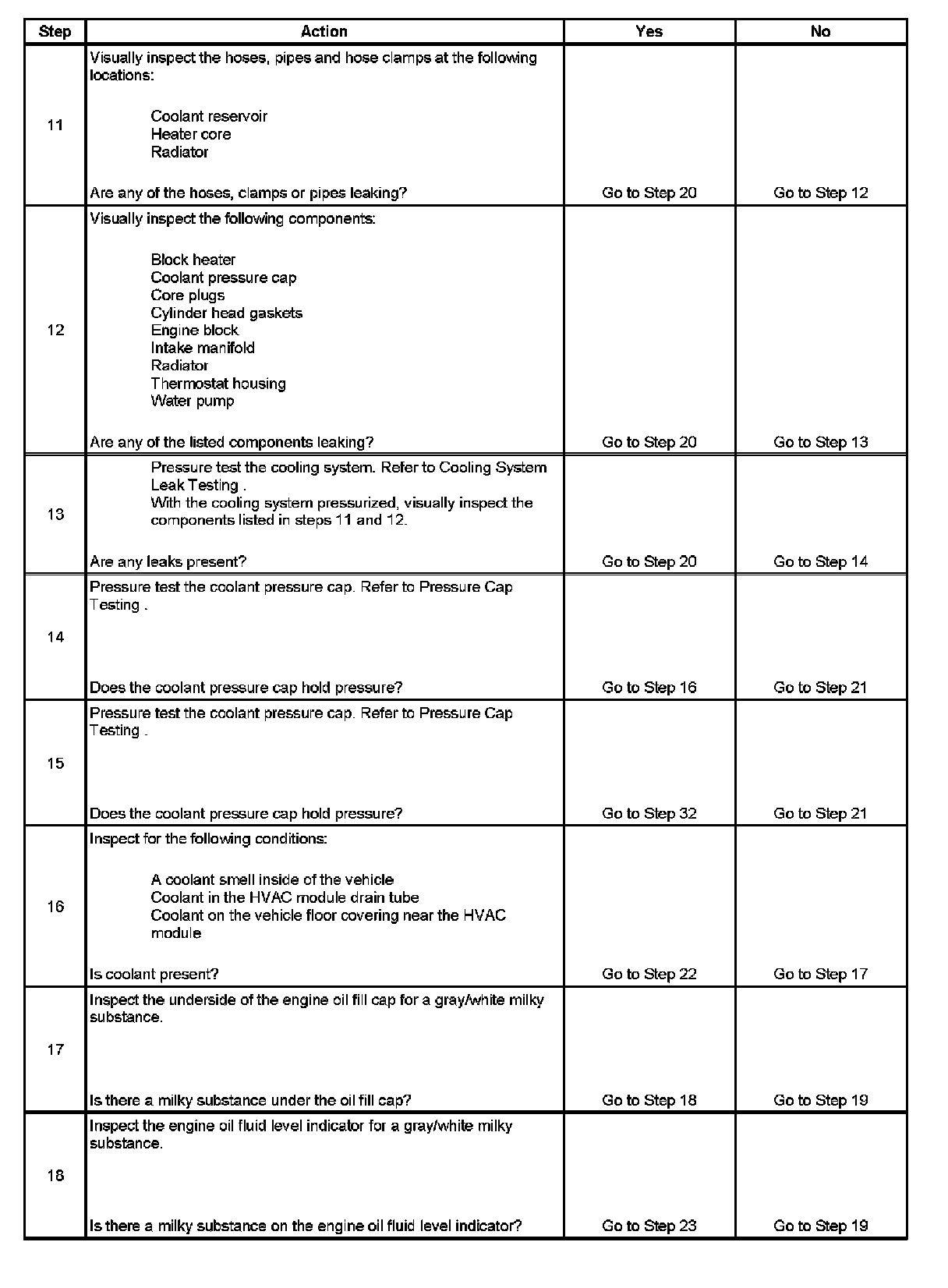

Step 11 - Step 18:

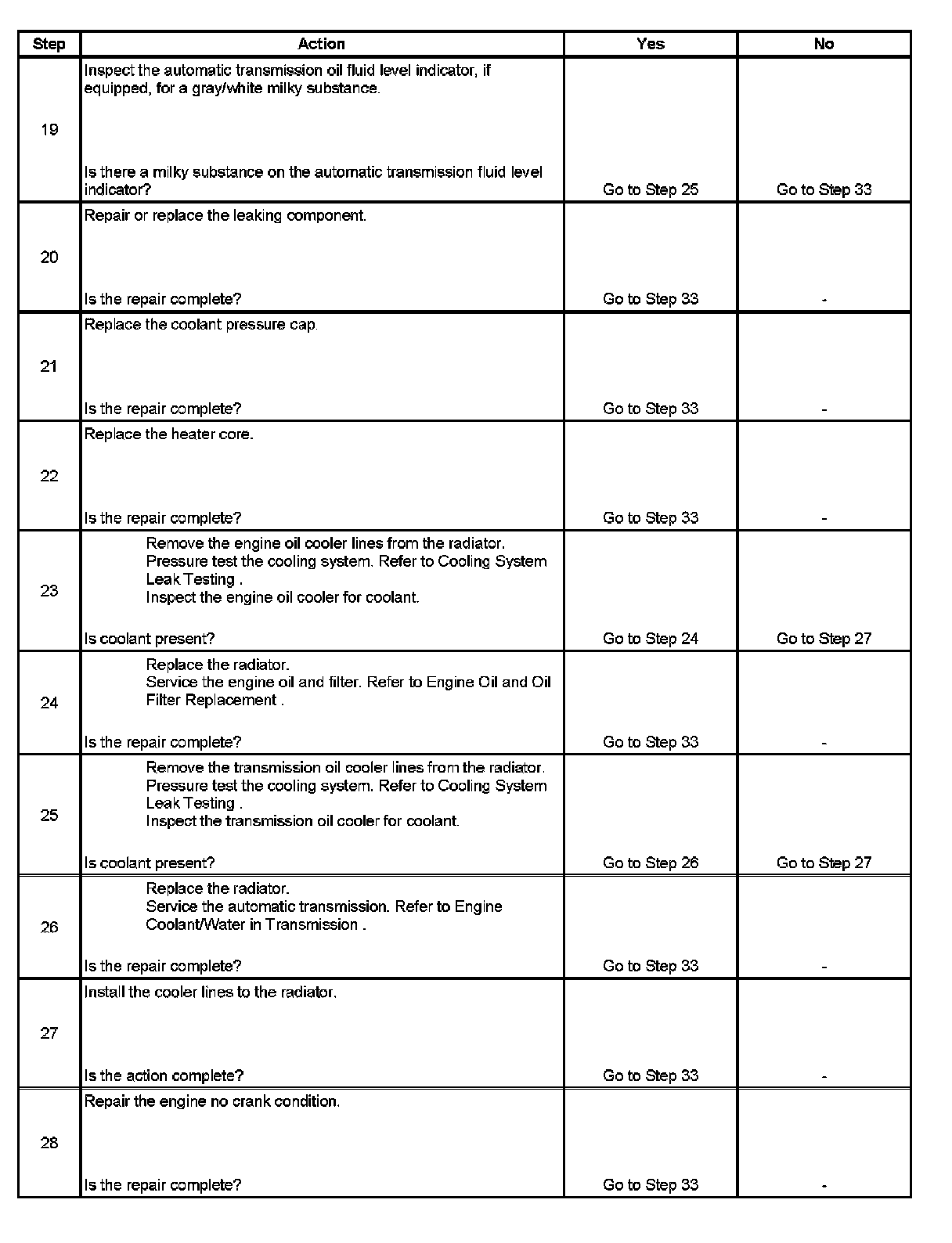

Step 19 - Step 28:

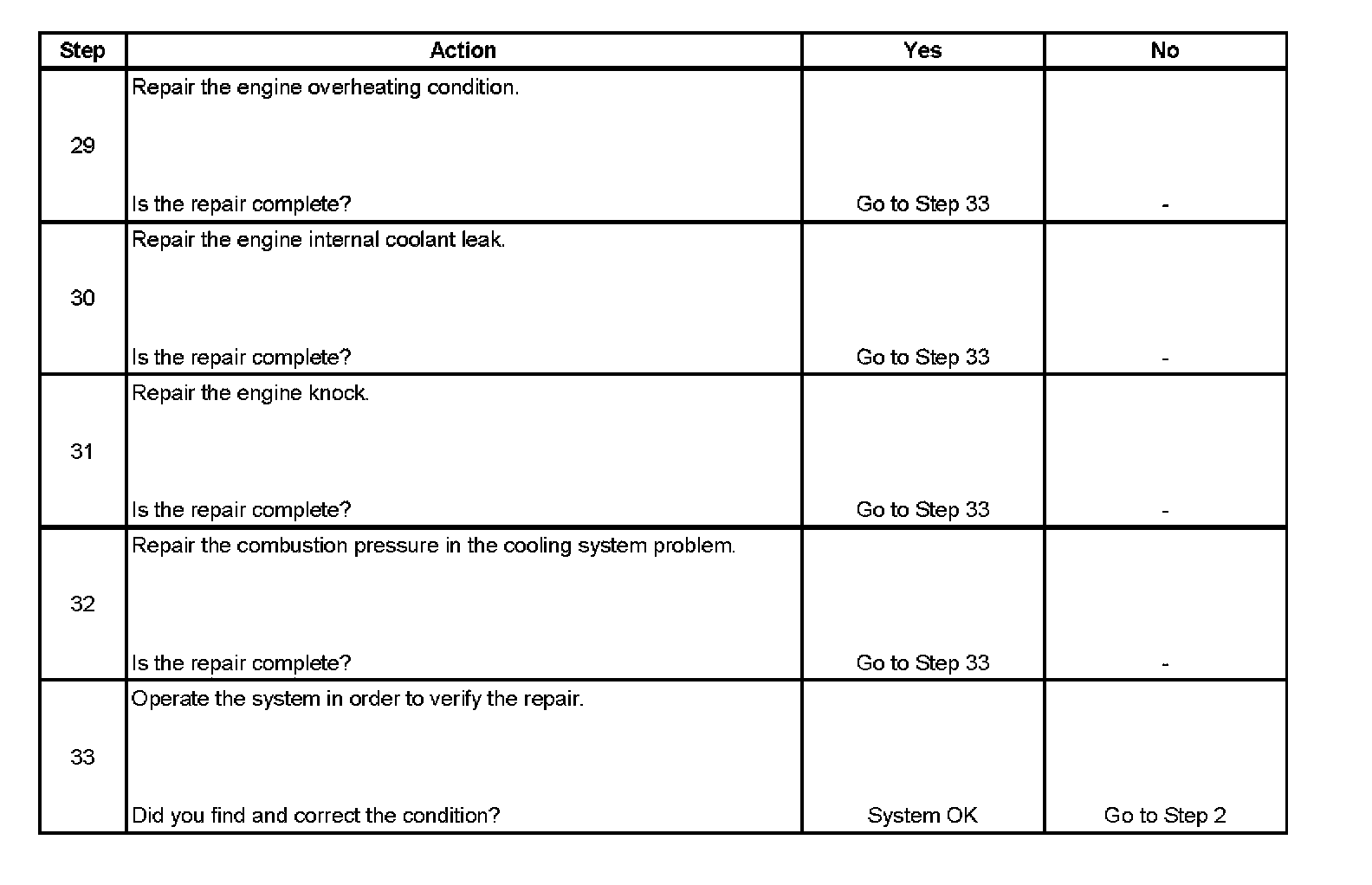

Step 29 - Step 33:
