Engine Fails to Reach Normal Operating Temperature



Engine Fails To Reach Normal Operating Temperature

Diagnostic Aids

The engine may fail to reach normal operating temperature due to an intermittent operation of the thermostat.

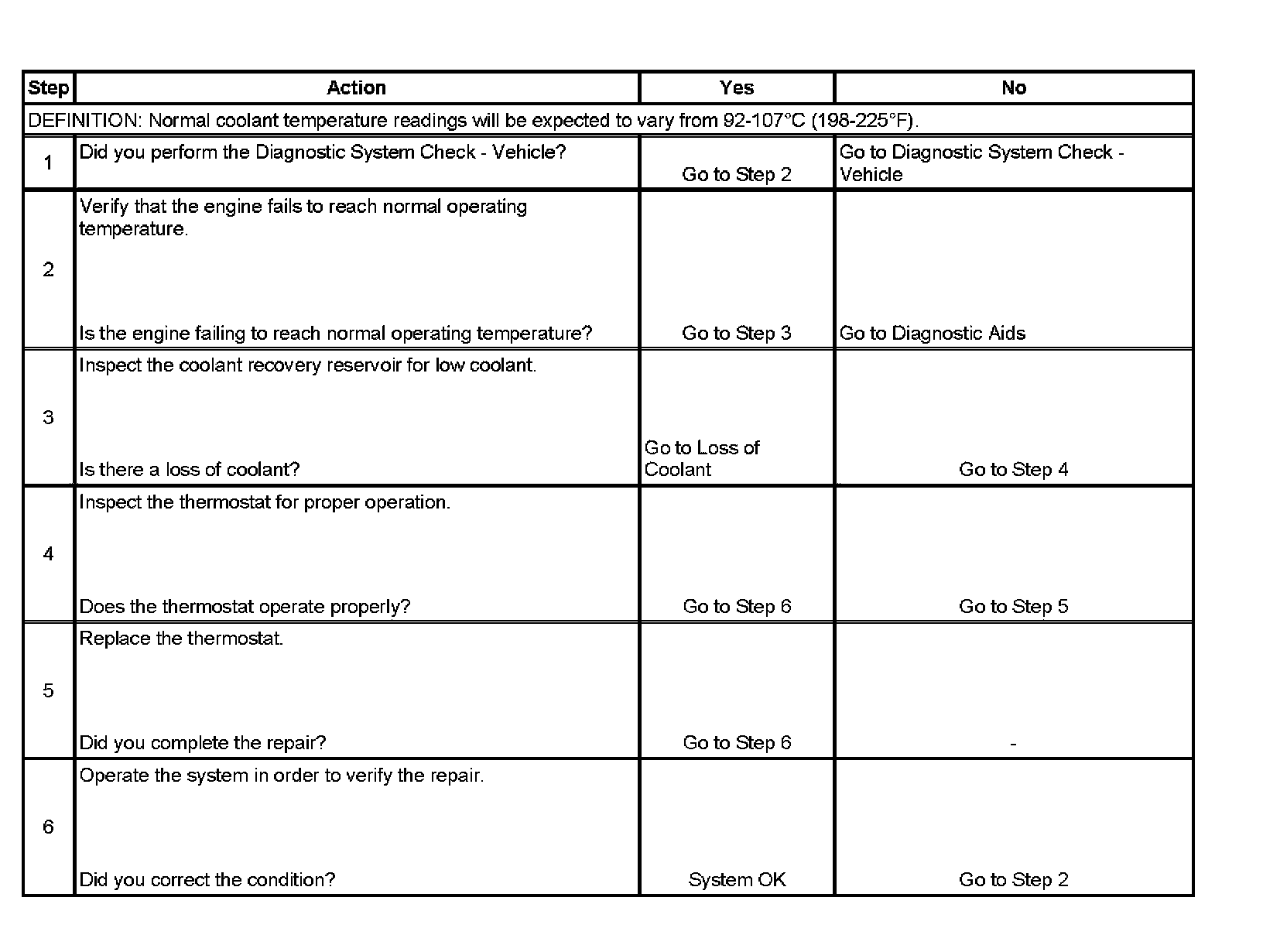

Step 1 - Step 6:
