Fan Clutch: Testing and Inspection



Fan Clutch Diagnosis

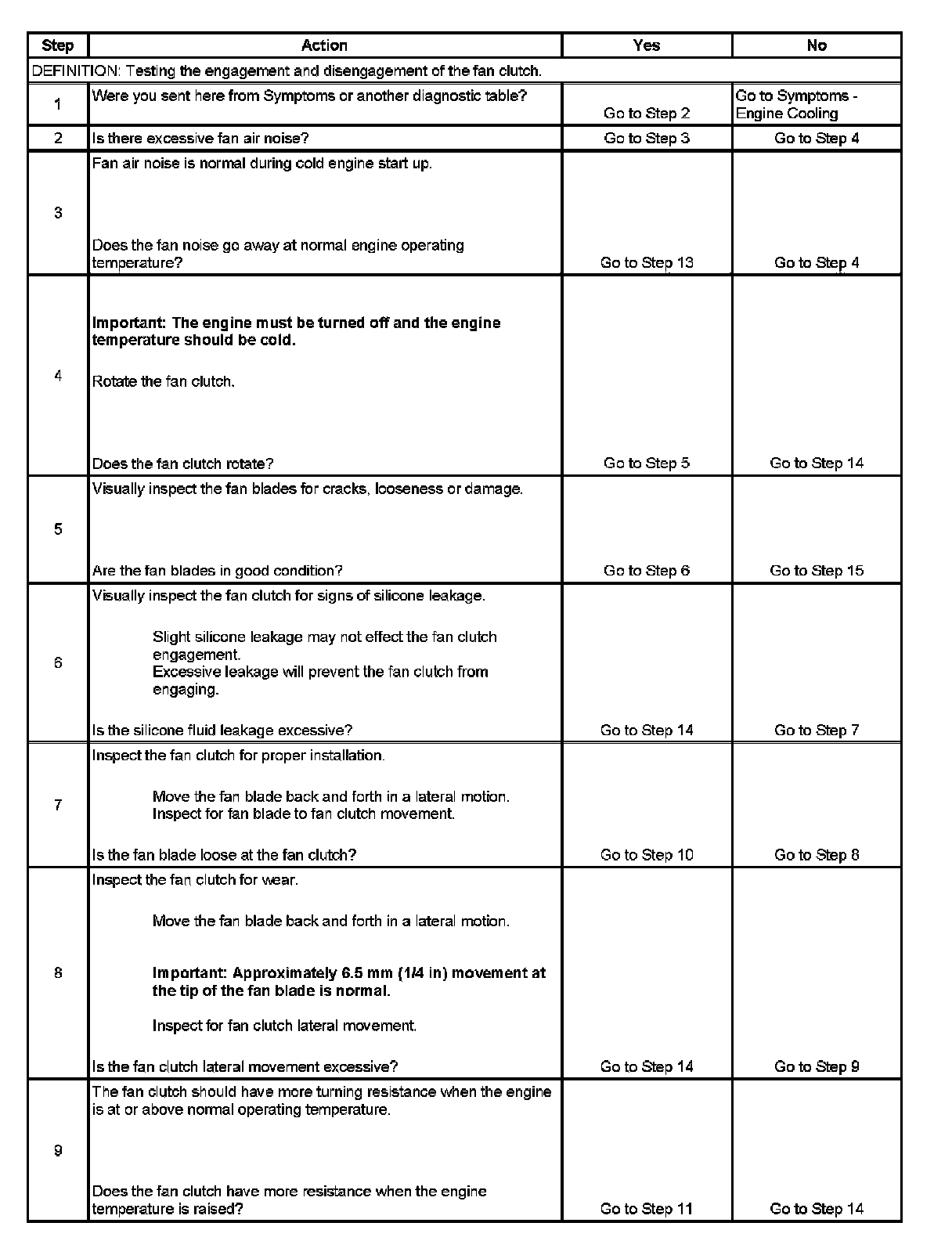

Step 1 - Step 9:

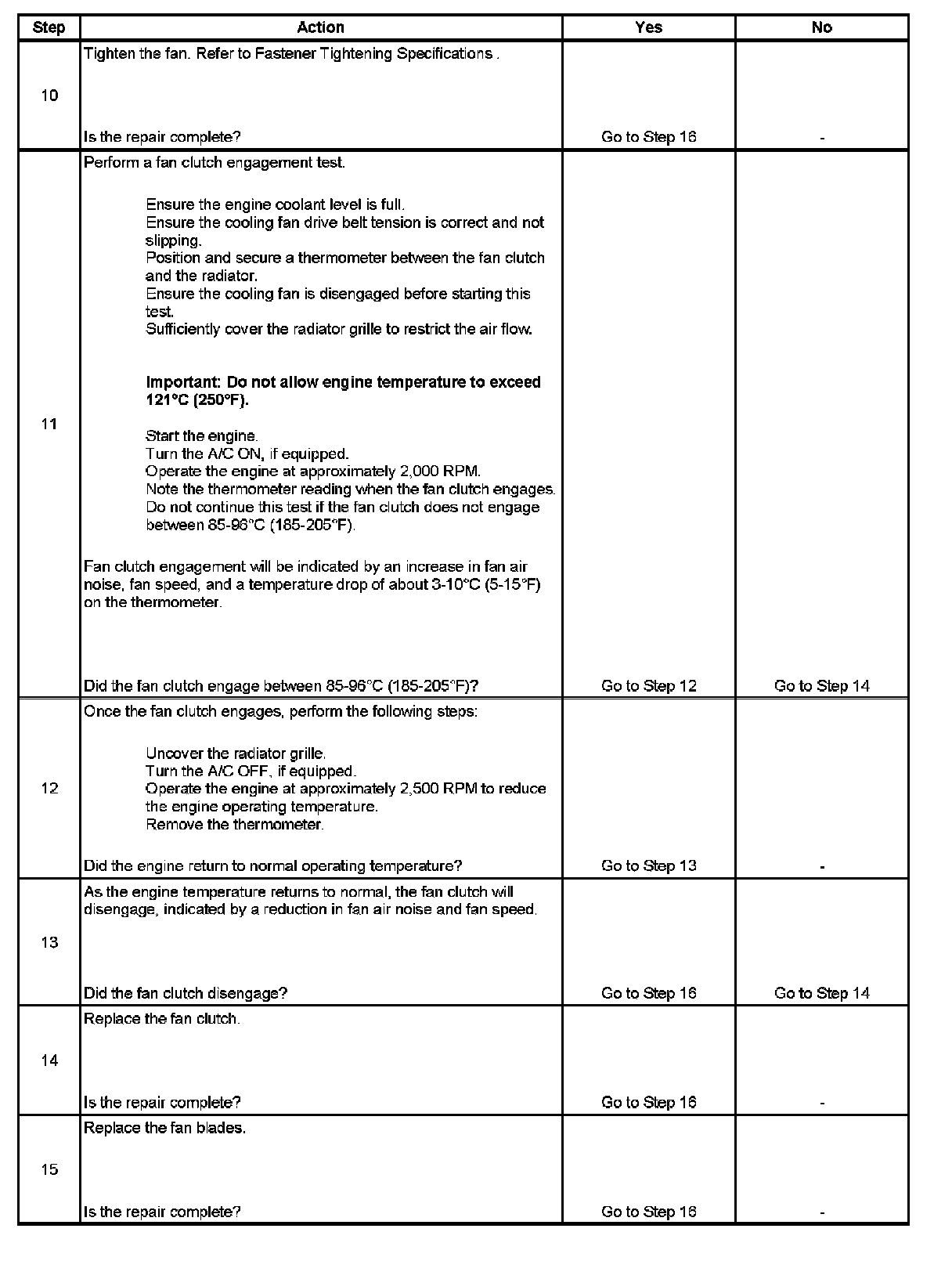

Step 10 - Step 15:

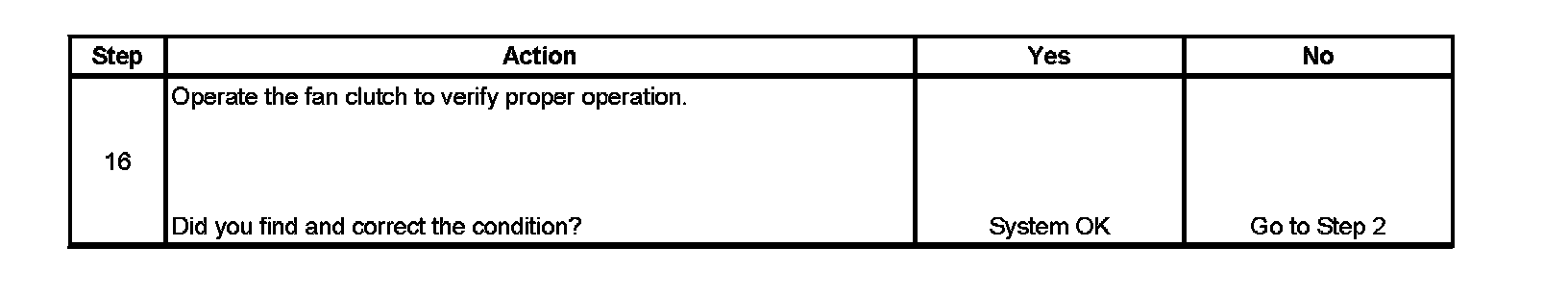

Step 16:
