Engine Harness - Right

Harness Routing Views

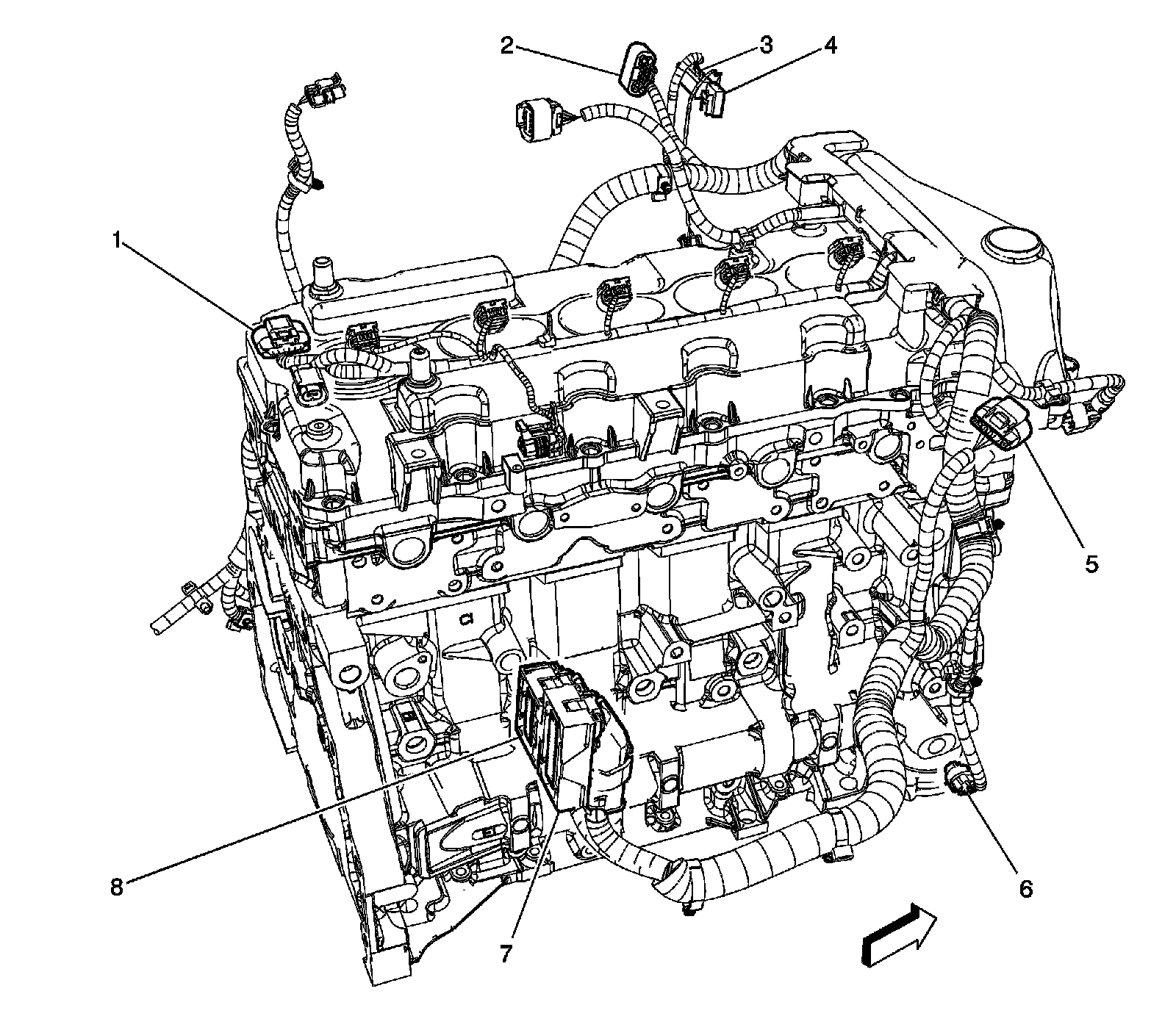

Engine Harness - Right




1 - C101 Engine Harness to Fuel Injector Harness
2 - C125 Engine Harness to Body Harness
3 - Fuse Block-Underhood C3
4 - Fuse Block-Underhood C4
5 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector
6 - Engine Oil Pressure (EOP) Switch Connector
7 - Powertrain Control Module (PCM) C2
8 - Powertrain Control Module (PCM) C3
