Left Rear Door Harness

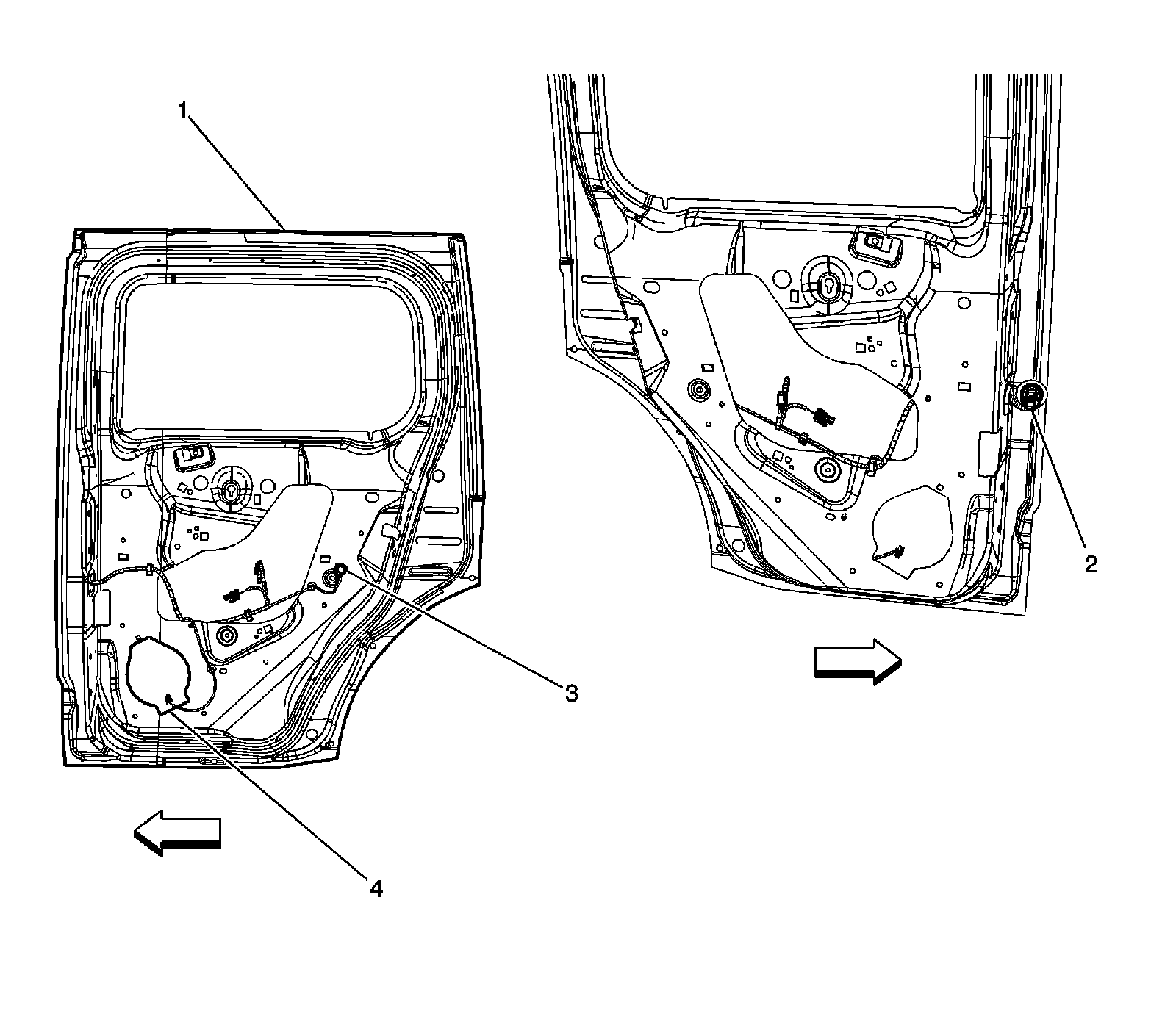

Harness Routing Views

Left Rear Door Harness




1 - Door Frame
2 - C370 Left Rear Door Harness to Body Harness
3 - Door Lock Actuator Connector
4 - Speaker - LR
