Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Door Views >> Driver Door Harness

Driver Door Harness

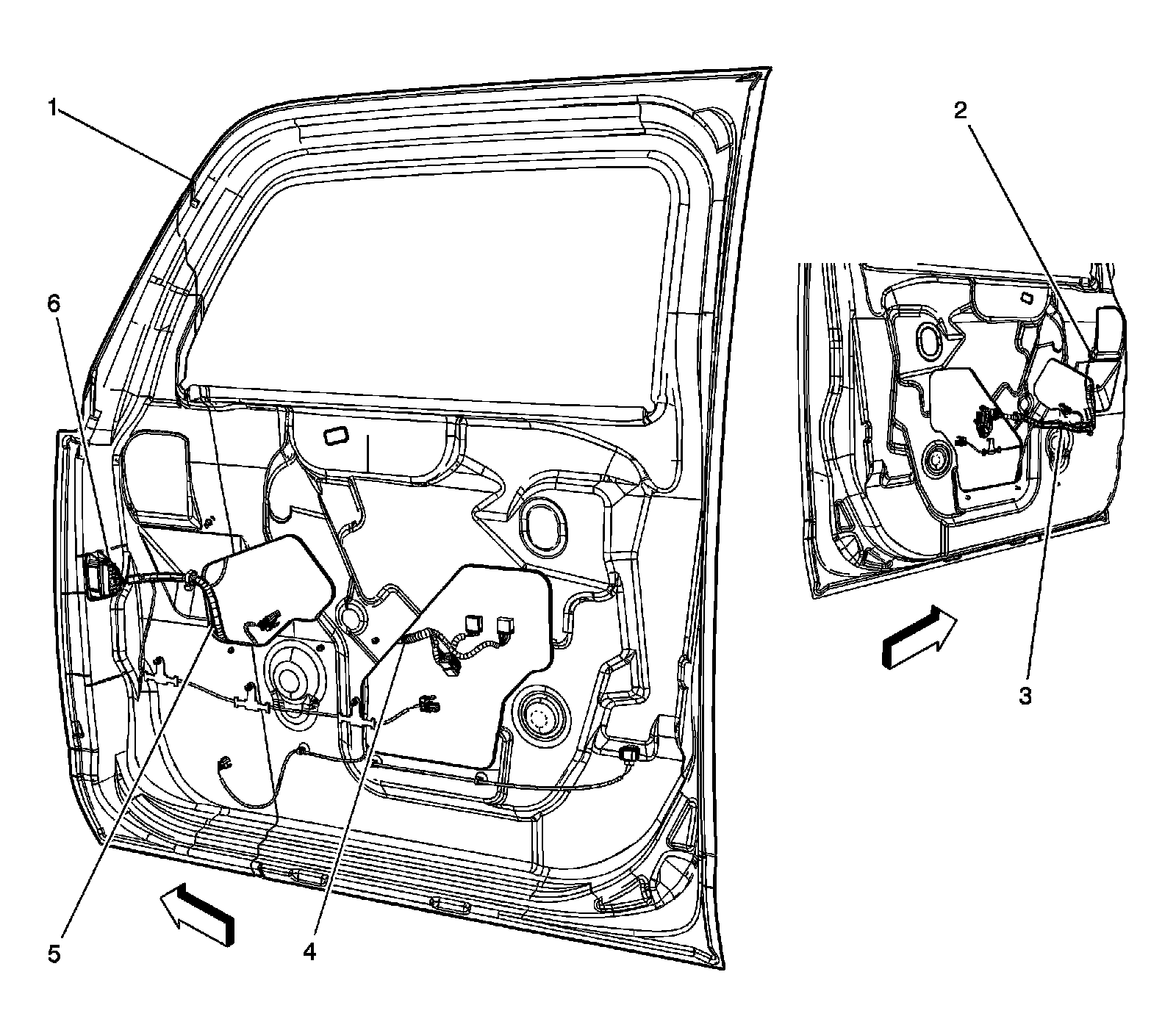

Harness Routing Views

Driver Door Harness




1 - Door Frame
2 - C510 LF Door Harness to Rearview Mirror Harness
3 - S529
4 - S514
5 - S590
6 - C500 Driver Door Harness to Body Harness
