Body Harness Routing-Right Side of I/P
Body Harness Routing-Right Side of I/P
Harness Routing Views

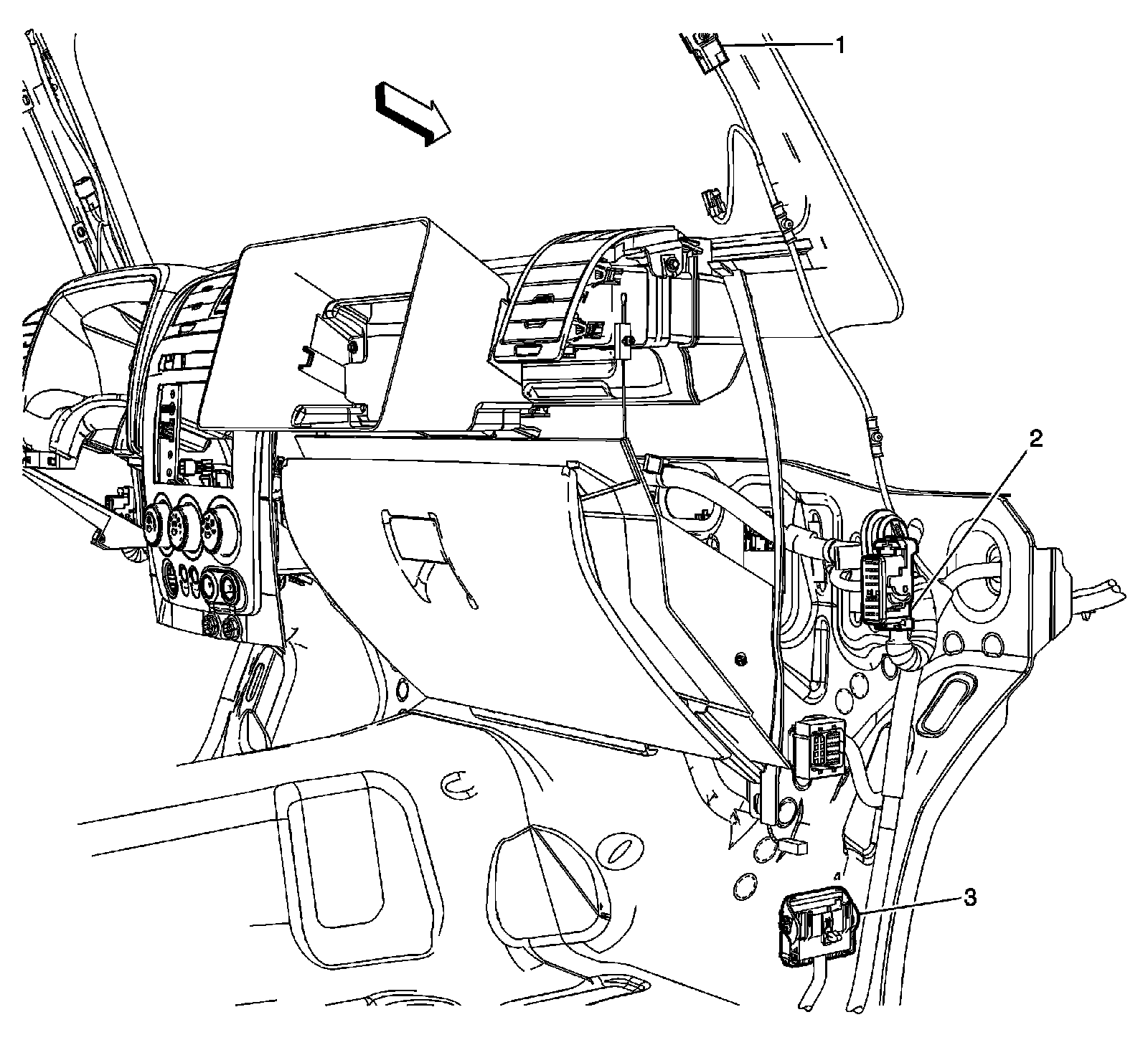

Body Harness Routing-Right Side of I/P
1
- C350
2
- C600
3
- C204
