Body Harness Routing-Passenger Compartment



Harness Routing Views

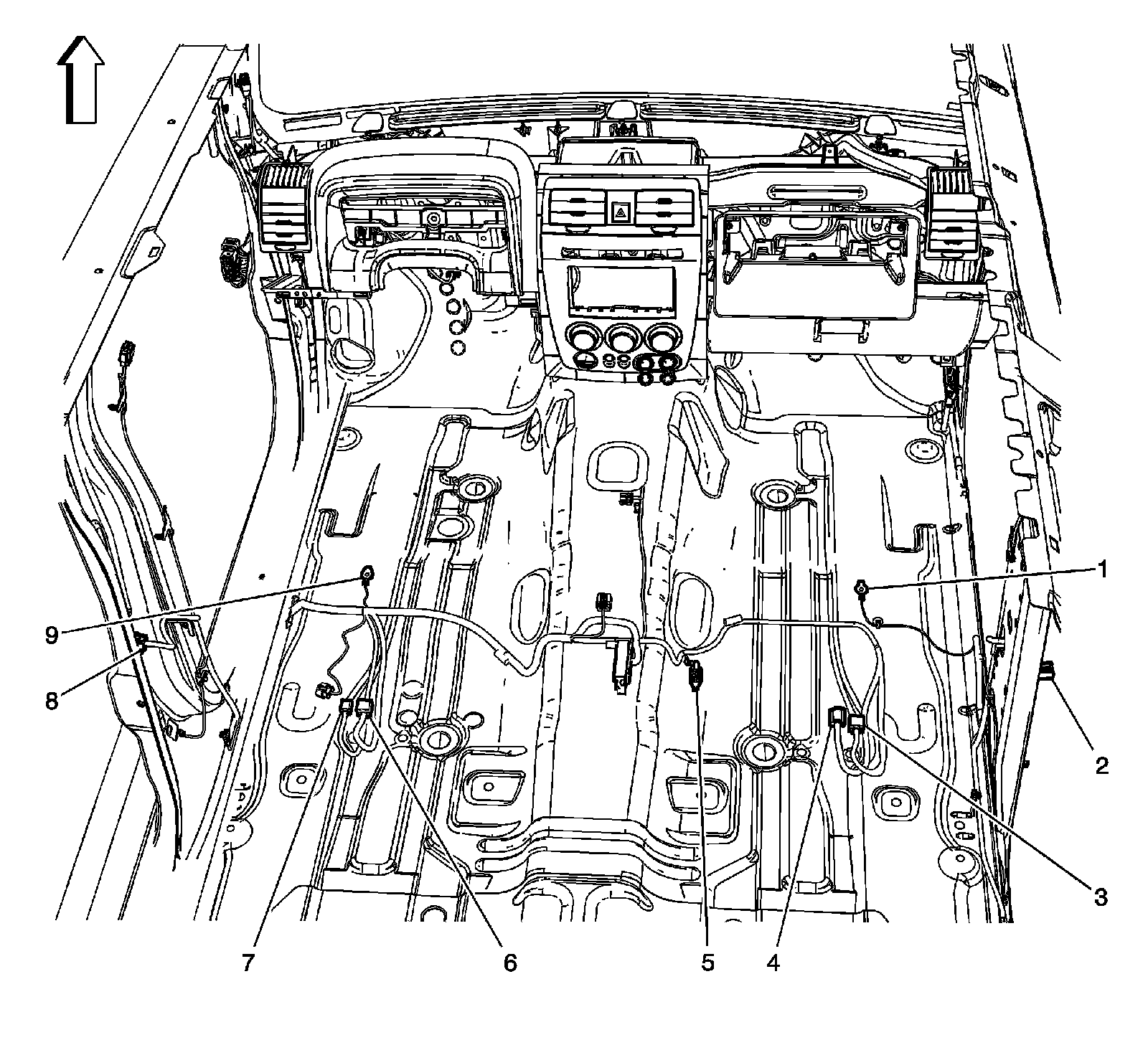

Body Harness Routing-Passenger Compartment




1 - G320
2 - C380
3 - C320
4 - C315
5 - G310
6 - C301
7 - C308
8 - C370
9 - G300
