Body Harness Routing-Left Side of I/P



Harness Routing Views

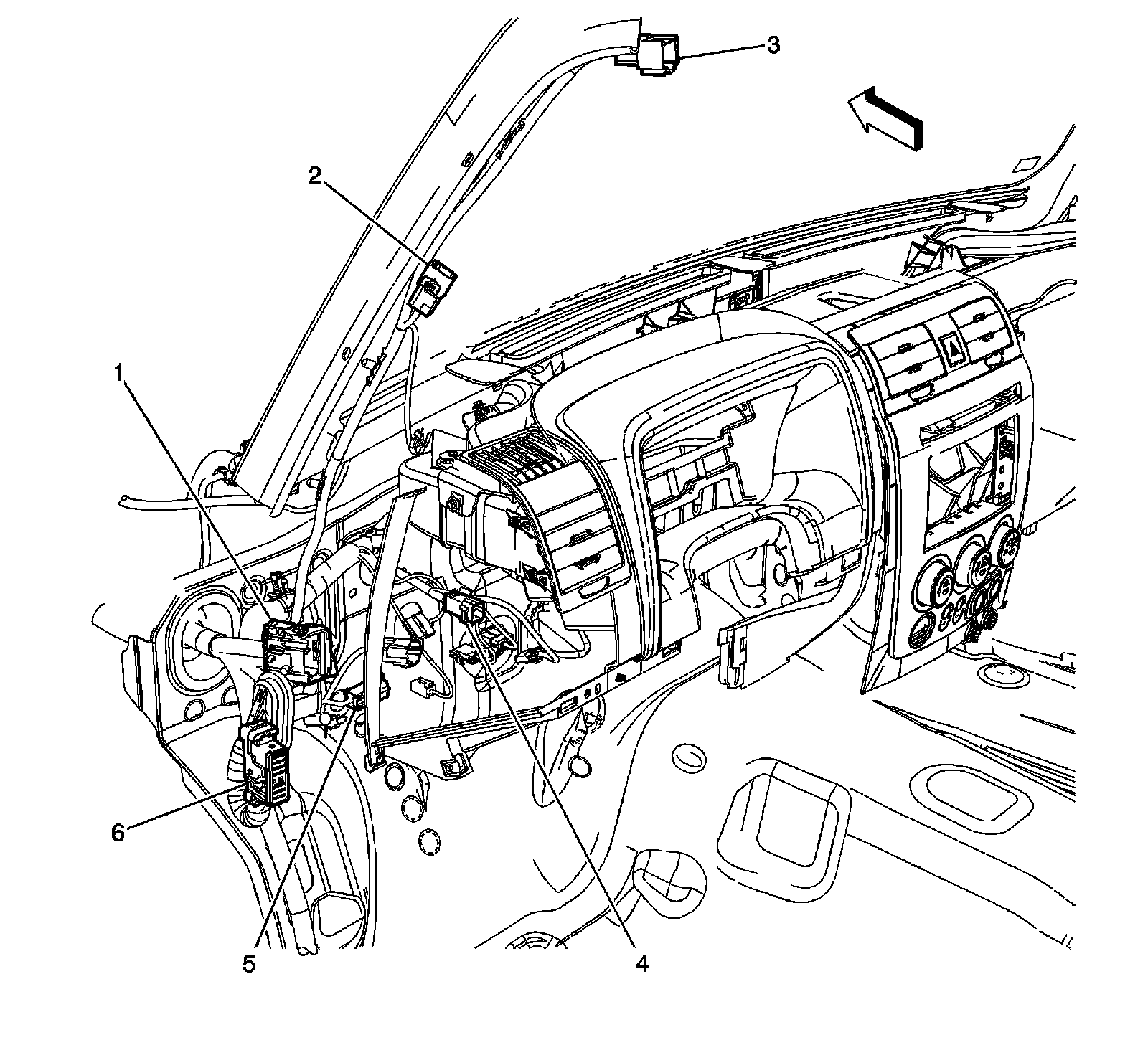

Body Harness Routing-Left Side of I/P




1 - C200
2 - C335 (CF5 or UE1)
3 - C330 (CF5)
4 - C275
5 - C207 (UQA)
6 - C500
