Body Harness Routing - Splices



Harness Routing Views

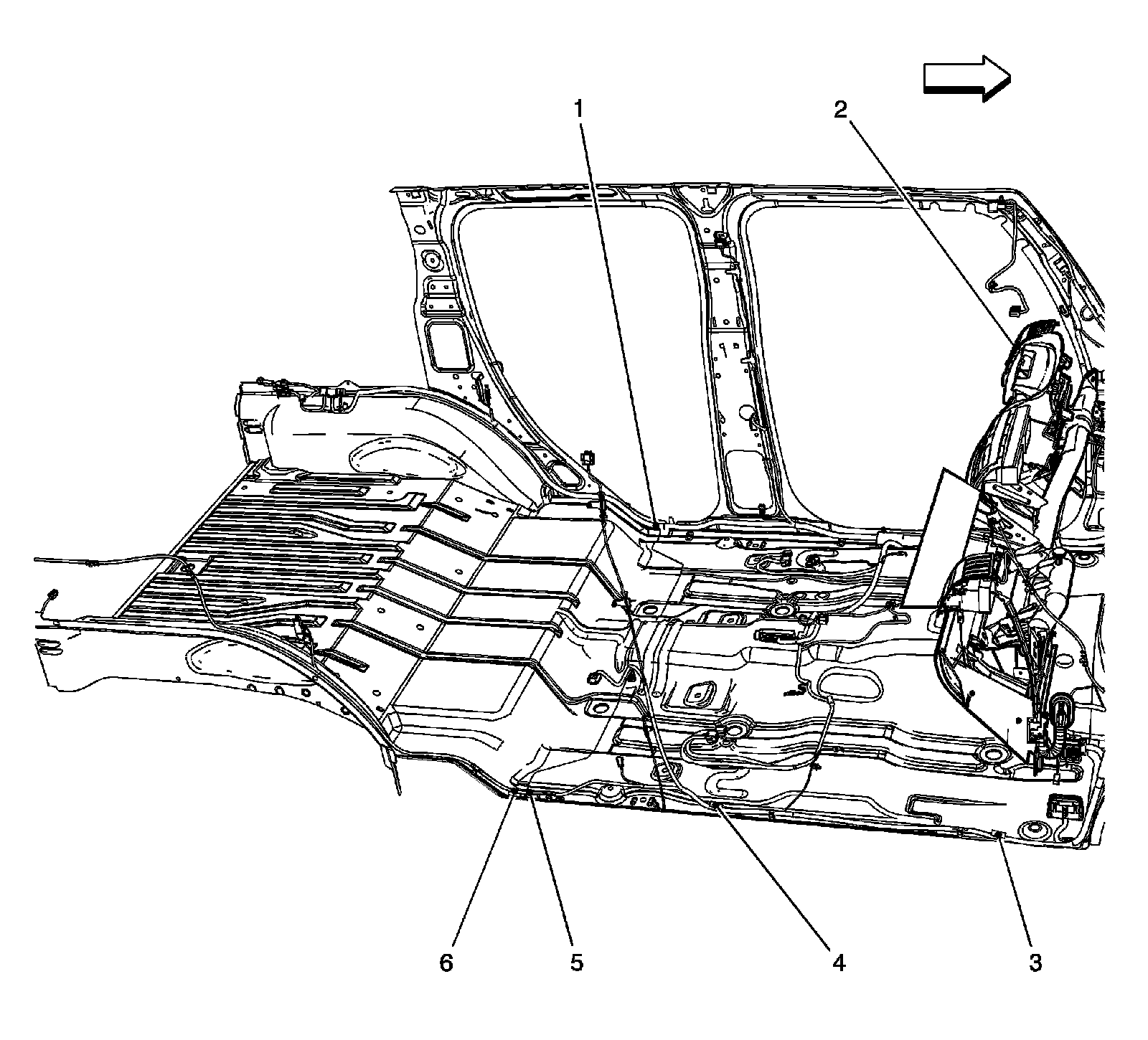

Body Harness Splices-Passenger Compartment




1 - S314
2 - Instrument Panel
3 - S305
4 - S320
5 - S347
6 - S315
