Body Harness - Front

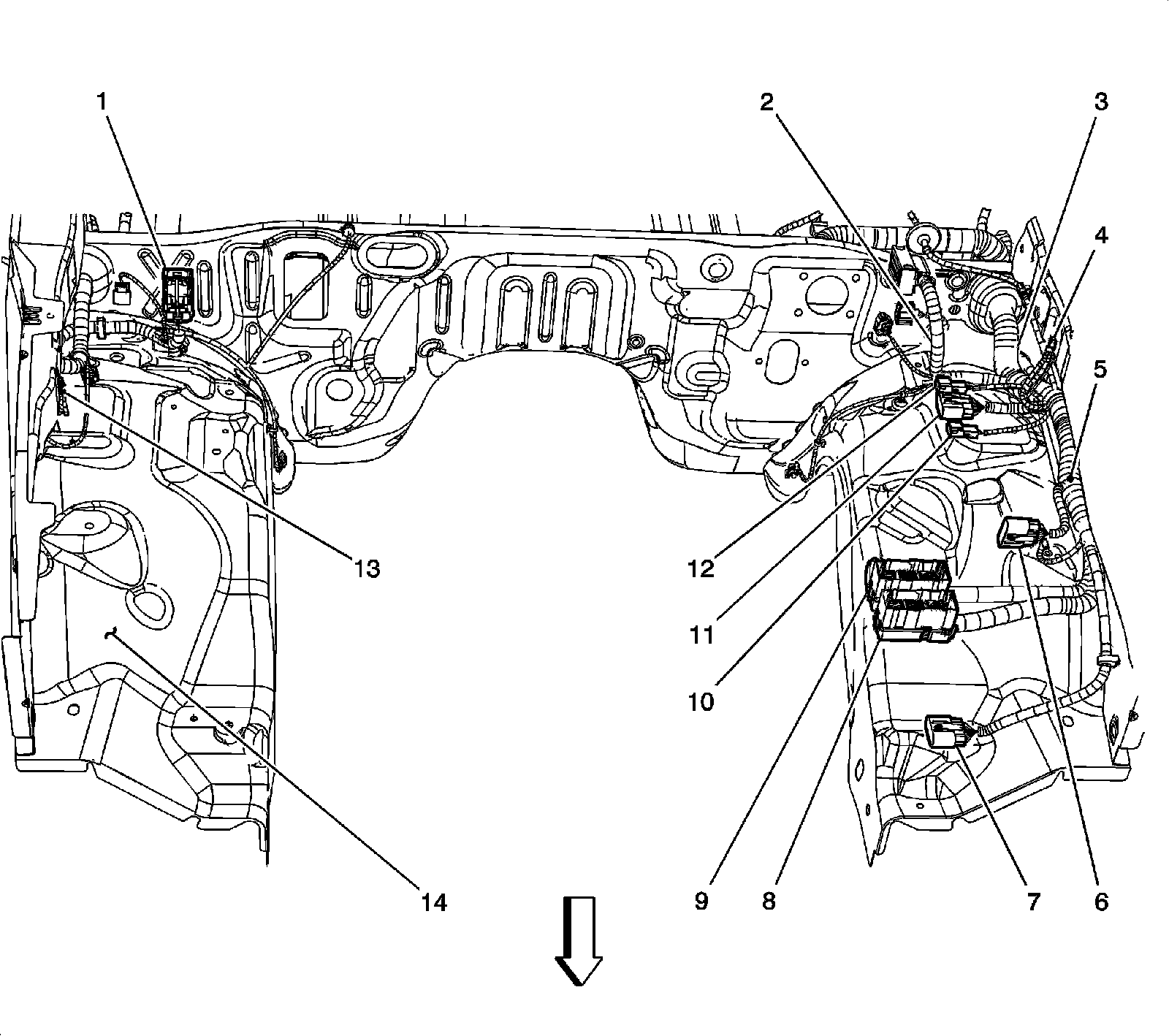

Harness Routing Views

Body Harness - Front




1 - Powertrain Control Module (PCM) C1
2 - S110
3 - S141
4 - G105
5 - S143
6 - C125 Body Harness to Engine Harness
7 - C115 Body Harness to Forward Lamp Harness
8 - Fuse Block - Underhood C2
9 - Fuse Block - Underhood C1
10 - C130 Body Harness to Battery Cable Harness (UE1)
11 - C150 Body Harness to Chassis Harness
12 - C155 Body Harness to Chassis Harness
13 - Wheel Well-RF
14 - G106
