Locking Differential Disassembled Views

Locking Differential Disassembled Views

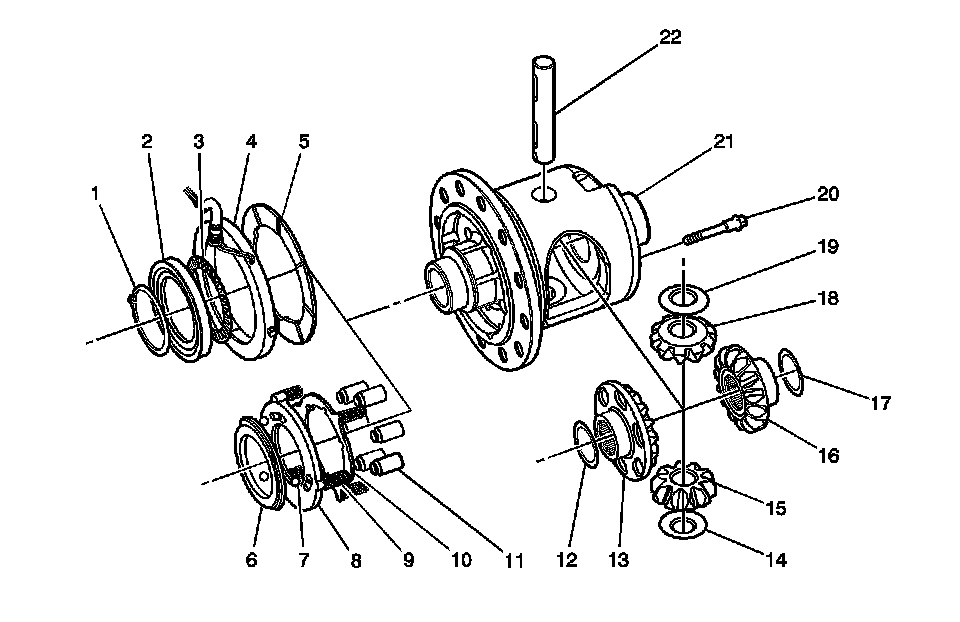

Locking Differential:

1 - Differential Bearing Retainer Ring
2 - Differential Bearing Race
3 - Differential Bearing Assembly
4 - Locking Differential Coil Assembly
5 - Locking Differential Coil Plate
6 - Locking Differential Ball Bearing Plate - Outboard
7 - Locking Differential Ball Bearing Assembly
8 - Locking Differential Ball Bearing Plate - Inboard
9 - Locking Differential Clutch Spring
10 - Locking Differential Clutch Spring Retainer
11 - Differential Carrier Lock Pin
12 - Differential Side Gear Thrust Washer
13 - Locking Differential Side Gear
14 - Pinion Thrust Washer
15 - Differential Pinion Gear
16 - Differential Side Gear
17 - Differential Side Gear Thrust Washer
18 - Differential Pinion Gear
19 - Pinion Thrust Washer
20 - Differential Pinion Shaft Lock Screw
21 - Electric Locking Differential Case Assembly
22 - Differential Pinion Gear Shaft

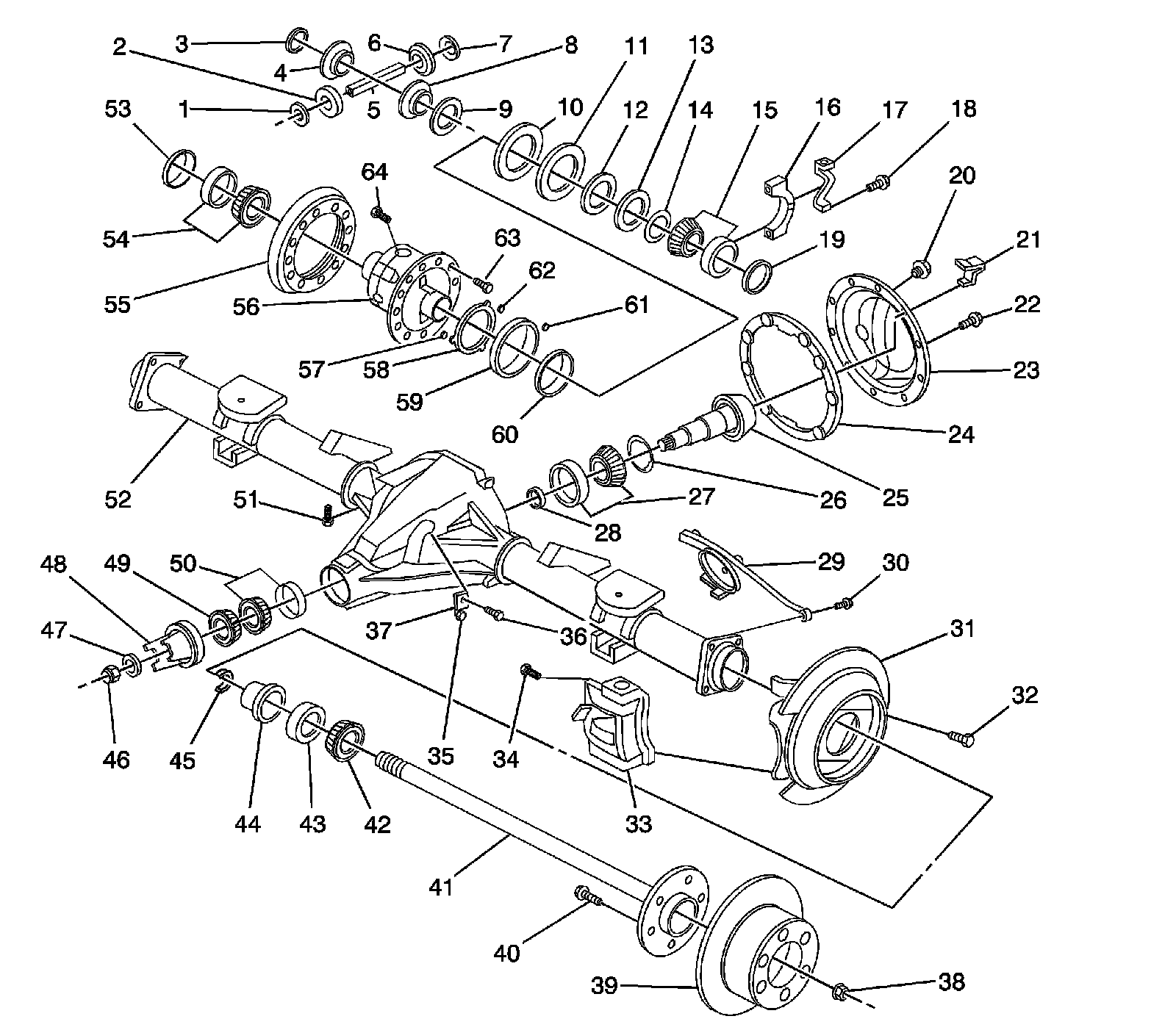

Rear Axle With Electric Locker Disassembled Views

Rear Axle With Electric Locker:

1 - Differential Side Gear Thrust Washer
2 - Differential Side Gear
3 - Differential Side Gear Thrust Washer
4 - Differential Side Locker Gear
5 - Differential Pinion Gear Shaft
6 - Differential Side Gear
7 - Differential Side Gear Thrust Washer
8 - Differential Side Locker Gear
9 - Differential Side Gear Thrust Washer
10 - Differential Bearing Spacer
11 - Electric Locking Differential Coil Lock
12 - Locking Differential Bearing Assembly
13 - Locking Differential Spacer
14 - Locking Differential Clutch Spring Retainer
15 - Differential Bearing Assembly
16 - Rear Axle Housing Assembly
17 - Rear Axle Housing Assembly
18 - Rear Axle Housing Assembly
19 - Differential Bearing Spacer
20 - Differential Carrier Fill Plug
21 - Brake Pipe Bracket
22 - Rear Axle Housing Cover Bolt/Screw
23 - Rear Axle Housing Cover
24 - Rear Axle Housing Cover Gasket
25 - Differential Ring and Drive Pinion 4.56 Ratio Gear Set
26 - Differential Drive Pinion Spacer
27 - Differential Drive Pinion Gear Inner Bearing Assembly
28 - Differential Drive Pinion Gear Bearing Spacer
29 - Rear Wheel Speed Sensor Assembly
30 - Rear Wheel Speed Sensor Bolt/Screw
31 - Differential Assembly Park Brake
32 - Park Brake Bolt/Screw
33 - Rear Disc Brake Assembly Caliper
34 - Rear Disc Brake Caliper Bolt/Screw
35 - Differential Housing Bolt/Screw
36 - Differential Housing Bolt/Screw
37 - Differential Housing Bracket
38 - Rear Brake Rotor Retainer
39 - Rear Brake Rotor Assembly
40 - Rear Wheel Stud
41 - Rear Axle Shaft
42 - Rear Axle Shaft Seal Assembly
43 - Rear Axle Shaft Bearing Assembly
44 - Wheel Speed Sensor Reluctor Ring
45 - Rear Axle Shaft Lock
46 - Differential Drive Pinion Gear Nut
47 - Differential Drive Pinion Gear Washer
48 - Differential Drive Pinion Gear Yoke
49 - Differential Drive Pinion Gear Seal
50 - Differential Drive Pinion Gear Outer Bearing Assembly
51 - Rear Axle Vent Hose Connector
52 - Rear Axle Housing Assembly
53 - Differential Bearing Spacer
54 - Differential Bearing Assembly
55 - Differential Ring and Drive Pinion Gear Set
56 - Differential Case
57 - Differential Carrier Lock Pin
58 - Differential Bearing Retainer Ring
59 - Electric Locking Differential Ball Bearing Plate
60 - Electric Differential Ball Bearing Plate
61 - Electric Locking Differential Ball Bearing Assembly
62 - Locking Differential Clutch Spring
63 - Differential Ring Gear Bolt/Screw
64 - Differential Ring Gear Shaft Lock Bolt/Screw
