Home >> Hummer >> 2007 >> H3 L5-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Wiring Diagram Index

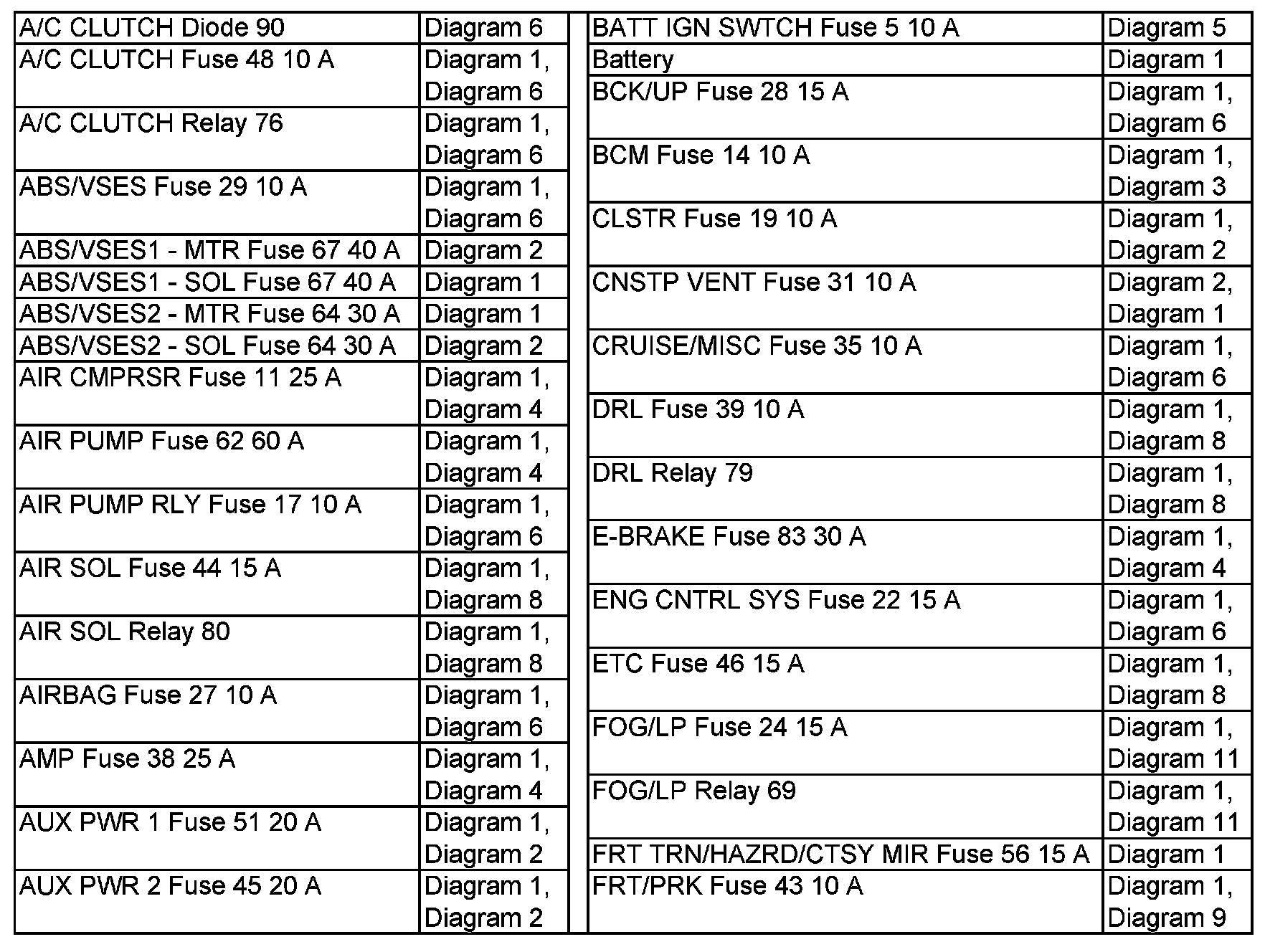

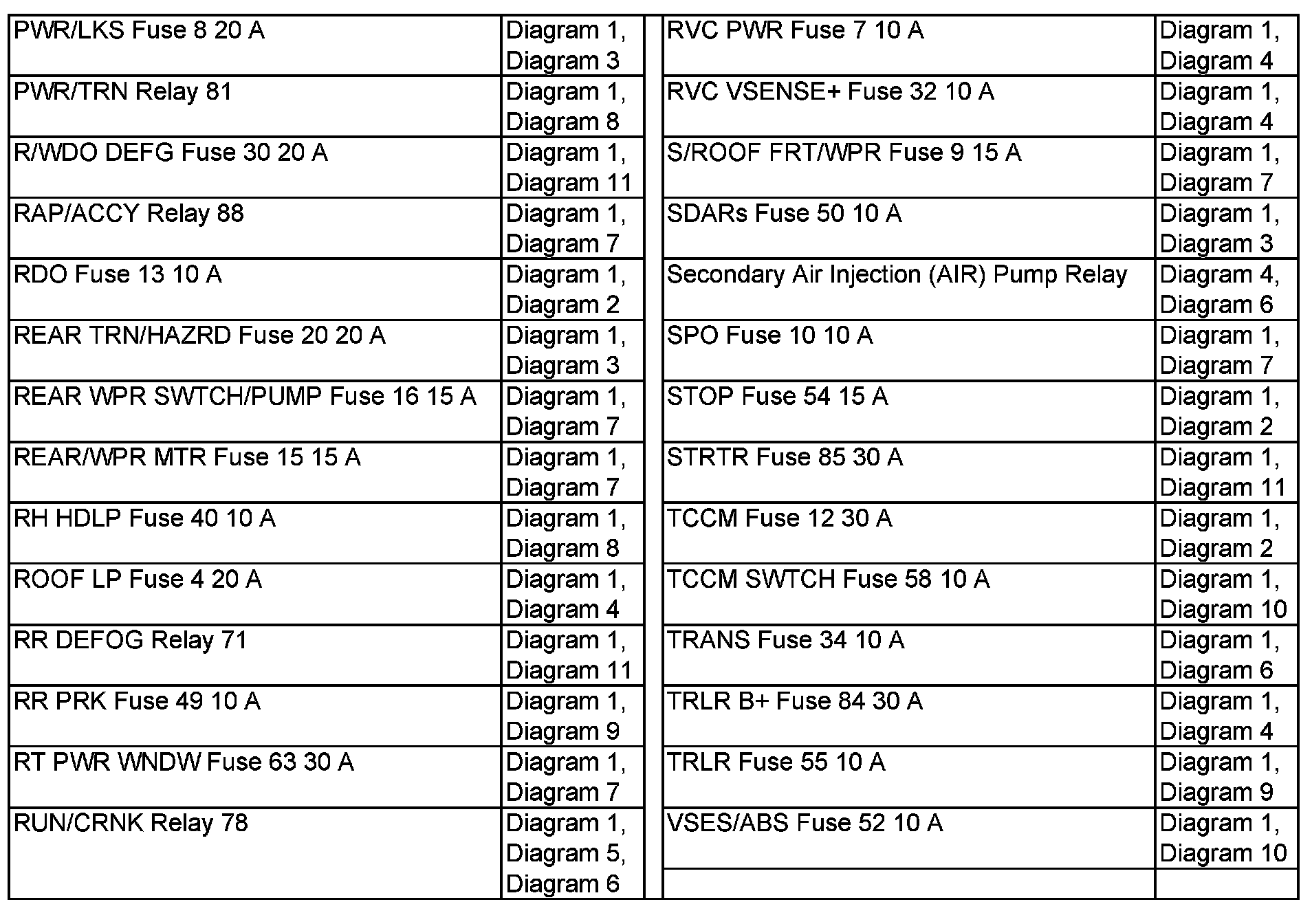

Wiring Diagram Index

A/C CLUTCH - FRT/PRK:



FRT/TRN/HAZRD/CTSY MIR - PWR SEATS:



PWR/LKS - VSES/ABS:
