Driver Seat Schematics



Driver Seat Schematics

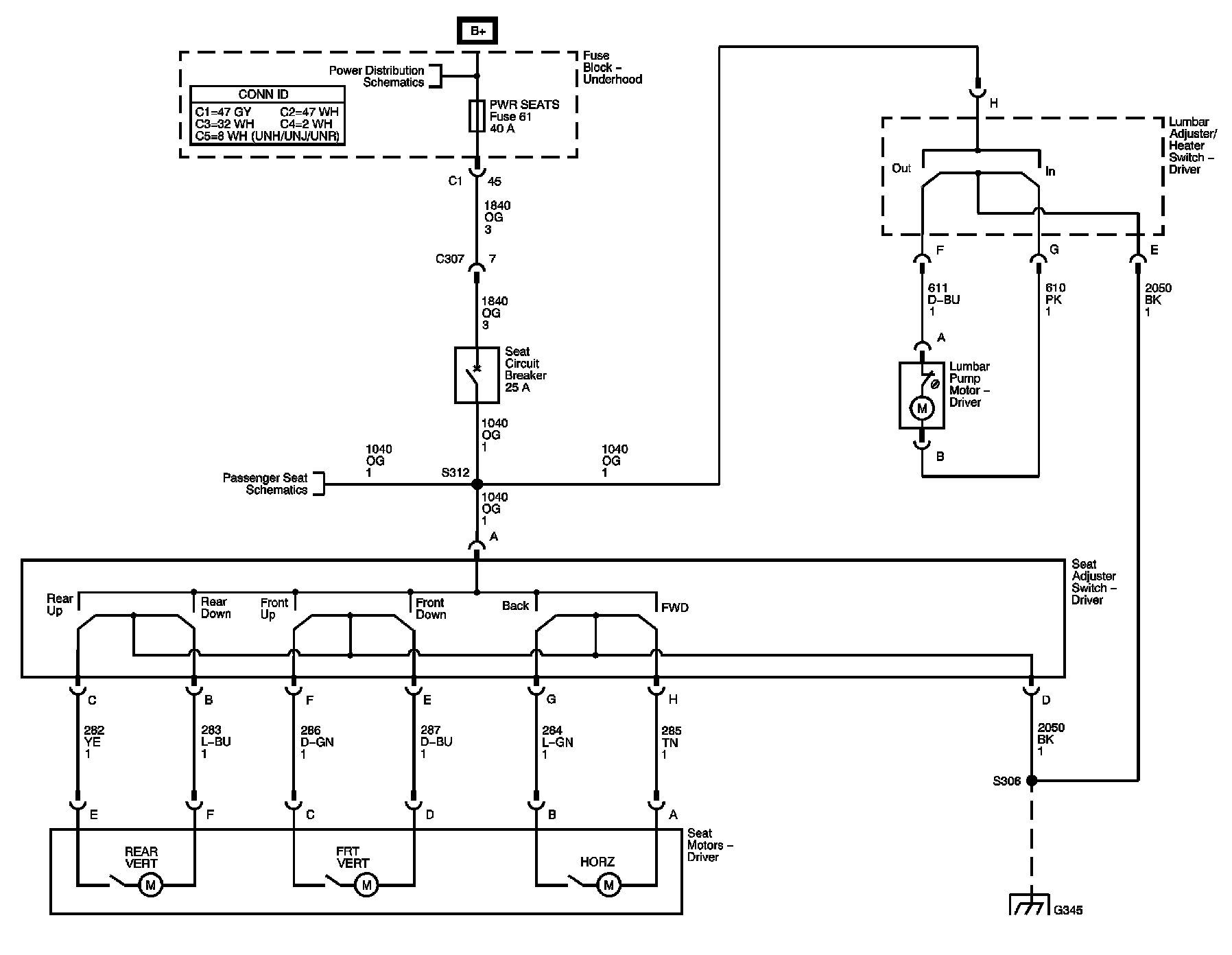

Lumbar Controls and Power Seat

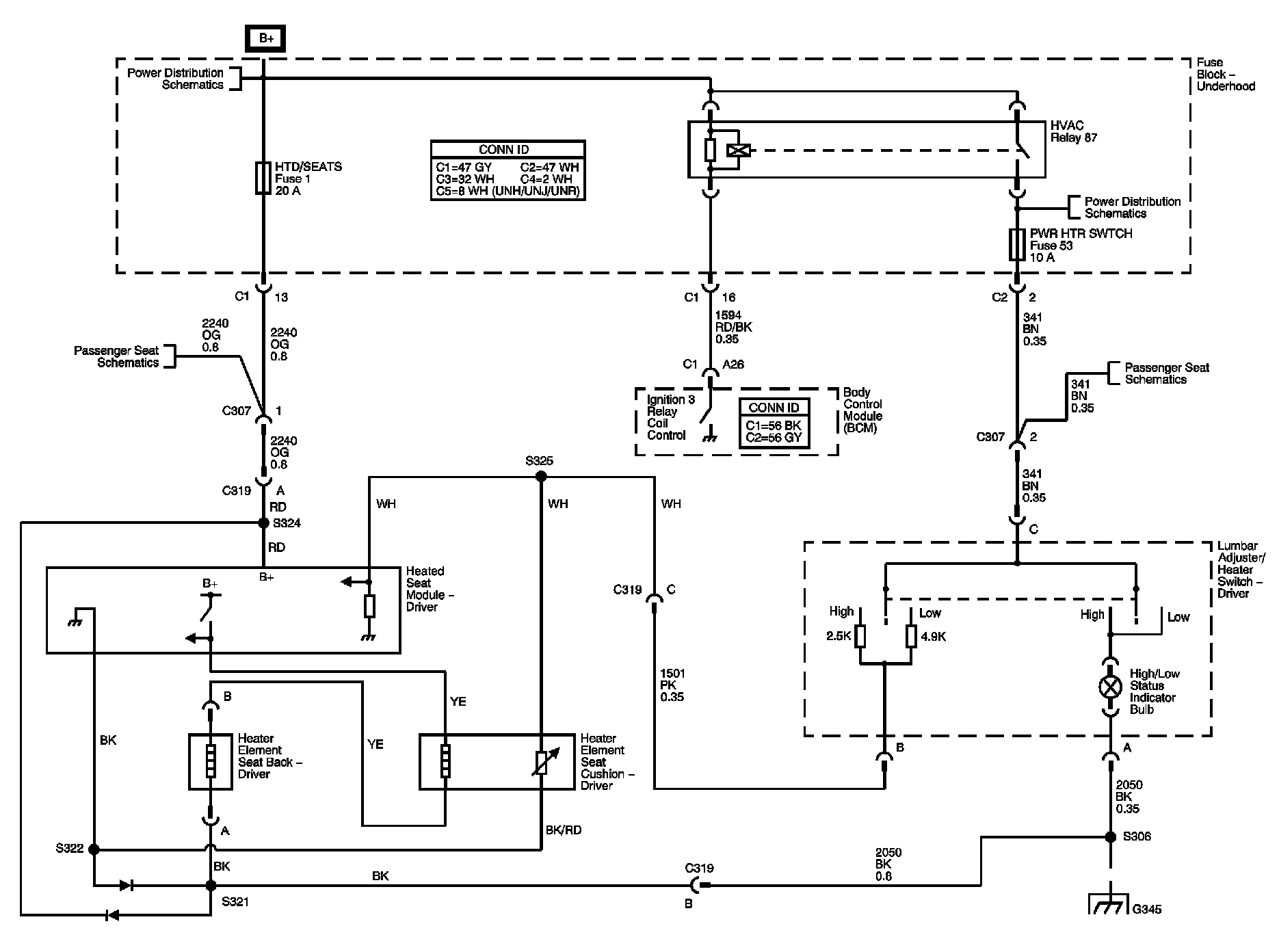

Heat Controls






1mLocations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
