Headlights/Daytime Running Lights (DRL) Diagram 2

Headlights/Daytime Running Lights (DRL) Schematics

Headlamps

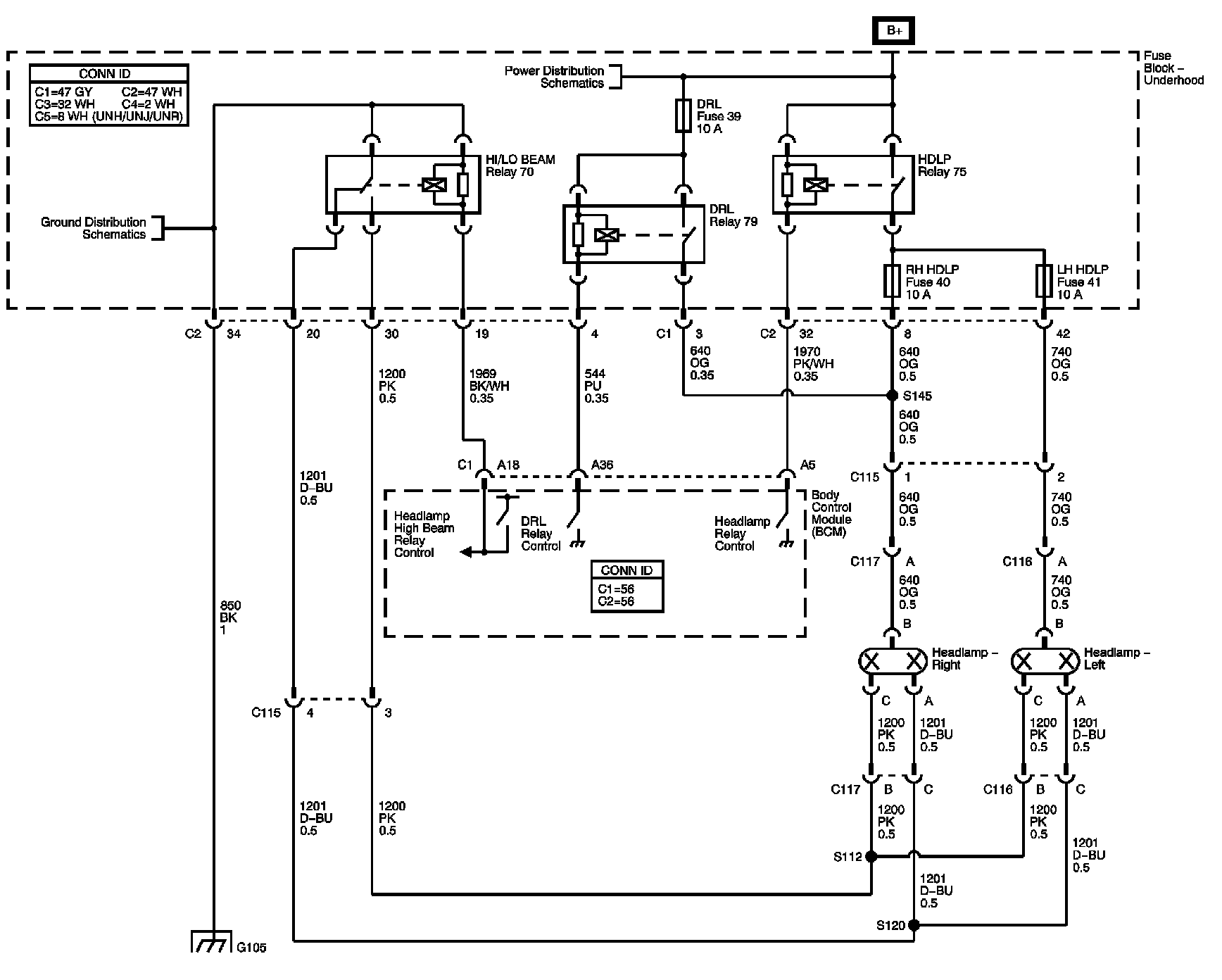

Headlights/Daytime Running Lights (DRL) Diagram 2:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
