Exterior Lights Diagram 4

Exterior Lights Schematics

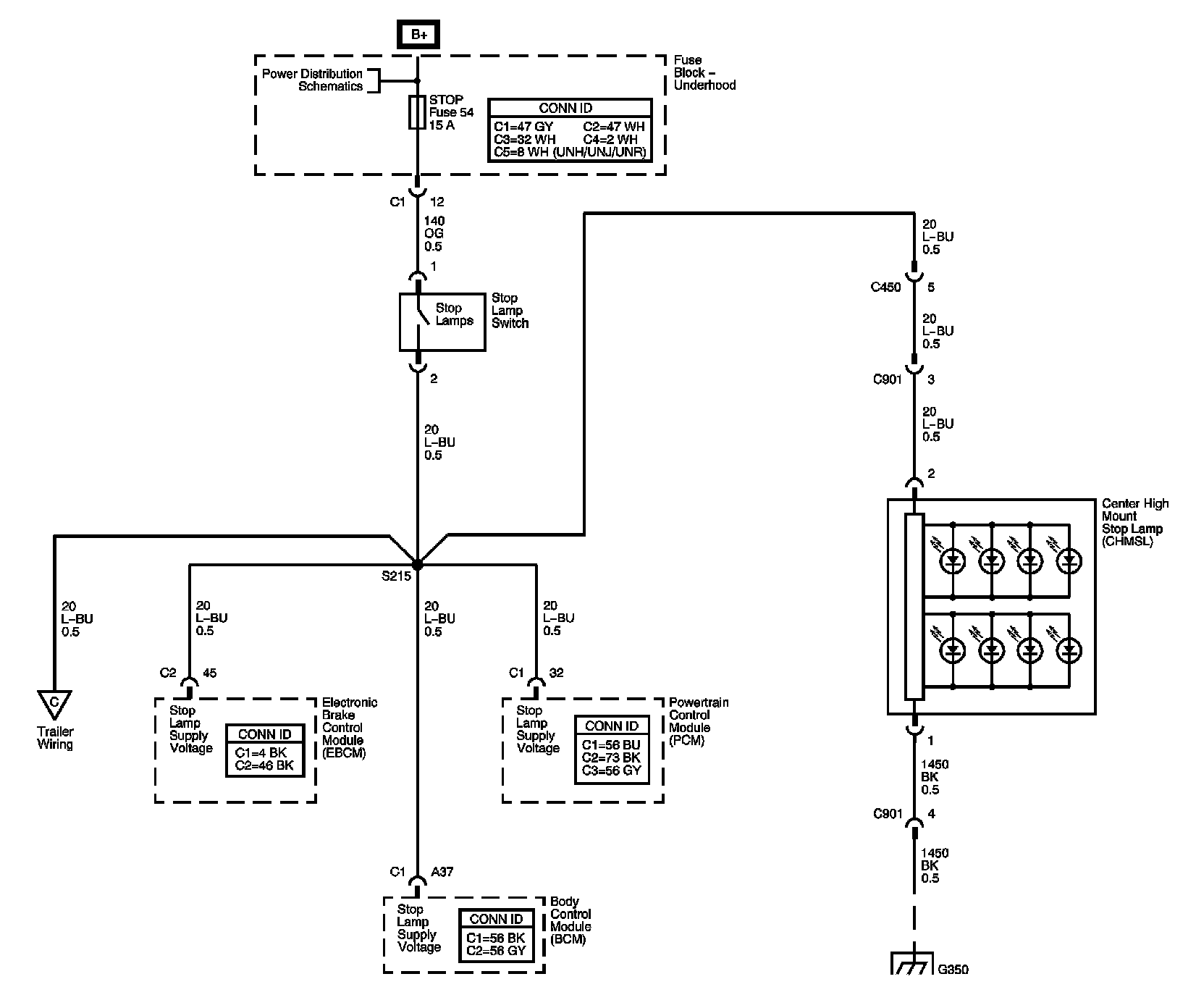

Center High Mount Stop Lamps (CHMSL) and Stop Lamp Switch

Exterior Lights Diagram 4:

Next Diagram: Exterior Lights Diagram 5

Previous Diagram: Exterior Lights Diagram 3

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
