C500

Mirror Component Views

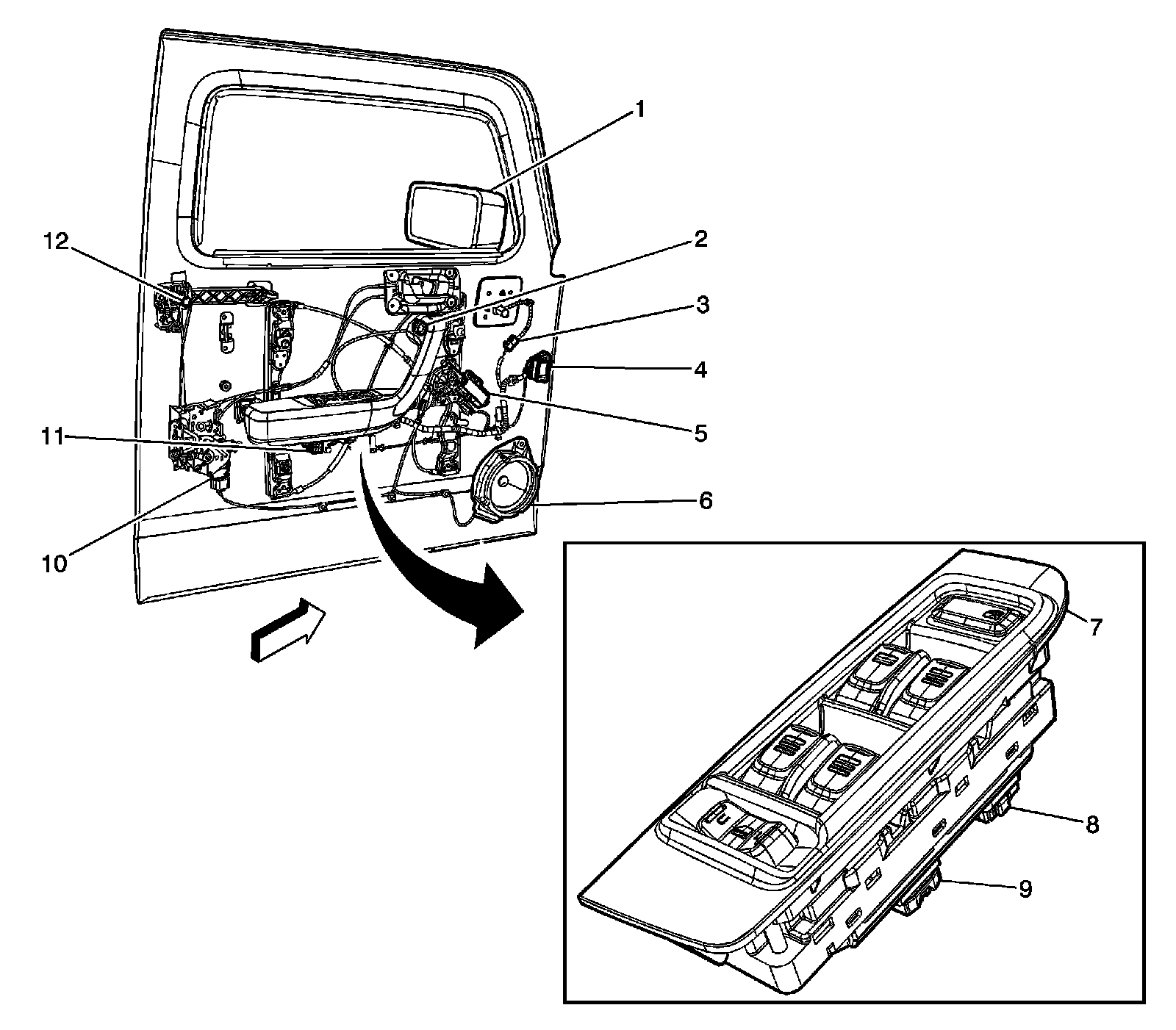

Driver Door Components




1 - Outside Rearview Mirror - Driver
2 - Outside Rearview Mirror Switch
3 - C510 Driver Door Harness to Outside Rearview Mirror Harness
4 - C500 Door Harness to Body Harness
5 - Window Motor - Driver
6 - Speaker - LF Door
7 - Door Lock and Window Switch - Driver
8 - Door Lock and Window Switch - Driver C1
9 - Door Lock and Window Switch - Driver C2
10 - Door Lock Actuator - Driver
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
12 - Key Lock Cylinder
