C400 - C499

Vehicle Access Component Views

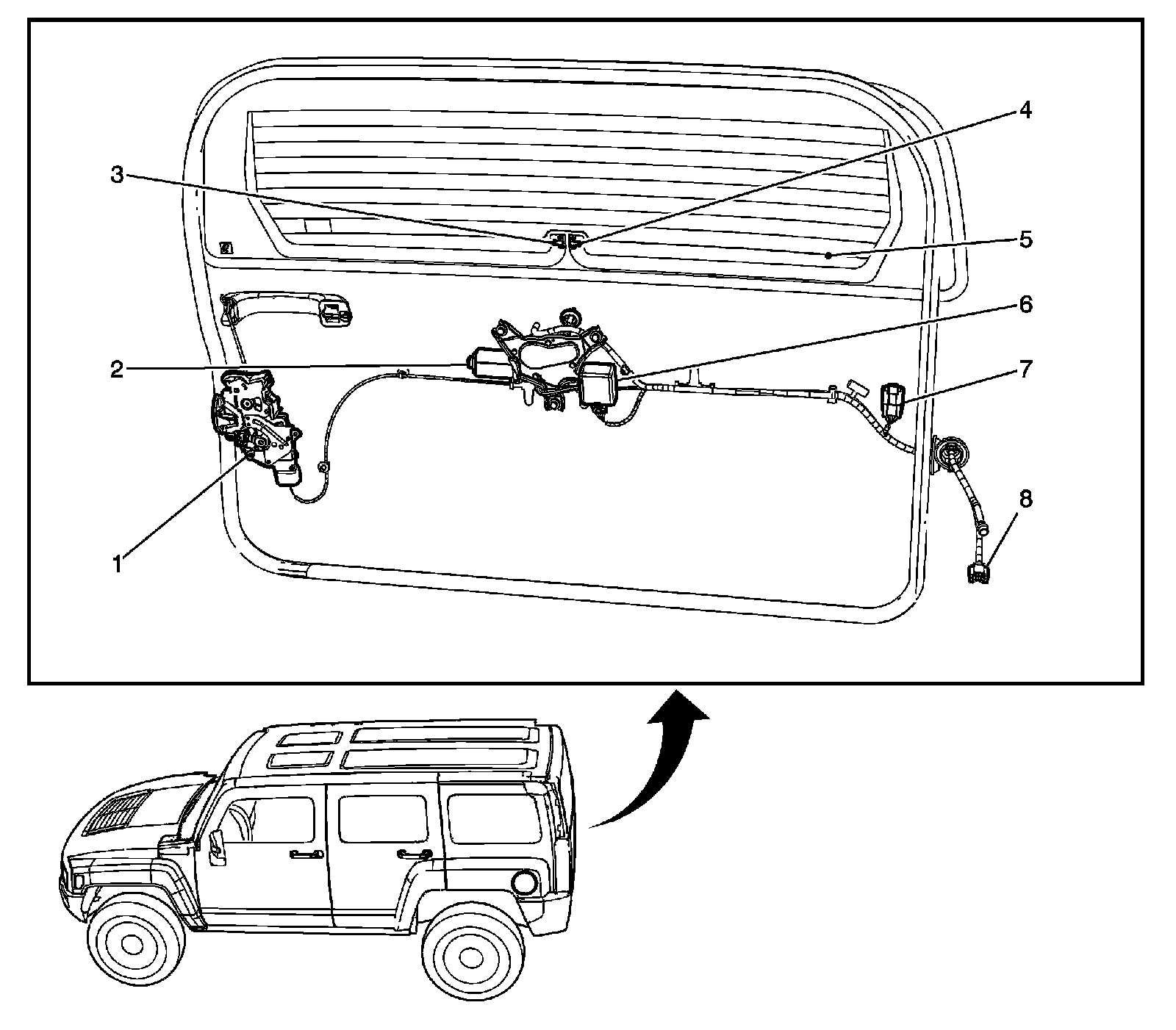

Endgate Components




1 - Door Lock Actuator - Endgate
2 - Rear Window Wiper Motor
3 - Rear Window Defogger Connector
4 - Rear Window Defogger Connector
5 - Rear Window Defogger
6 - Rear Window Wiper/Washer Module
7 - C901 CHMSL Jumper Harness to Endgate Harness
8 - C450 Body Harness to Endgate Harness
