C370

Vehicle Access Component Views

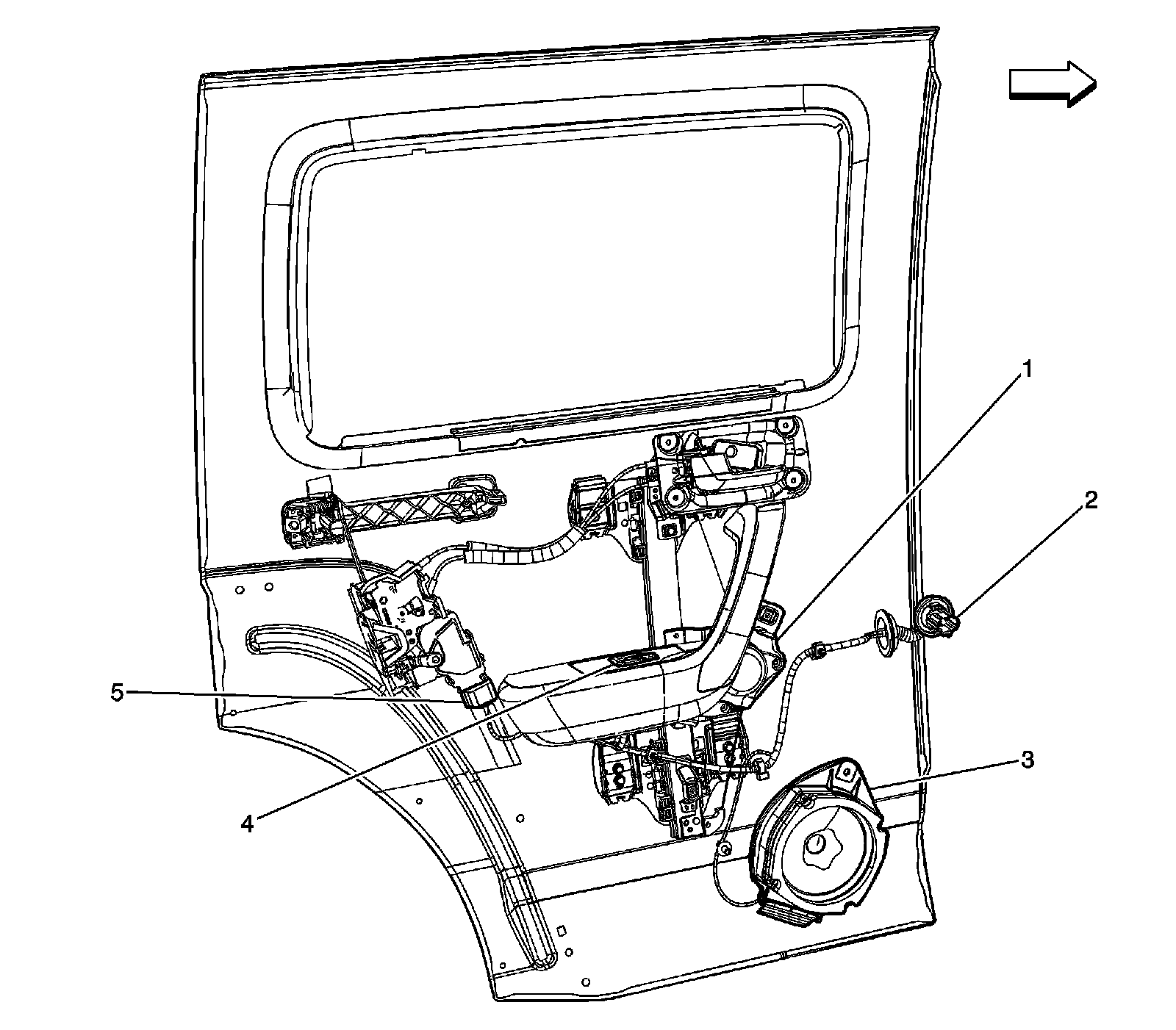

Left Rear Door Components (Right Rear Similar)




1 - Window Motor - LR
2 - C370 Left Rear Door Harness to Body Harness
3 - Speaker - LR
4 - Window Switch - LR
5 - Door Lock Actuator - LR
